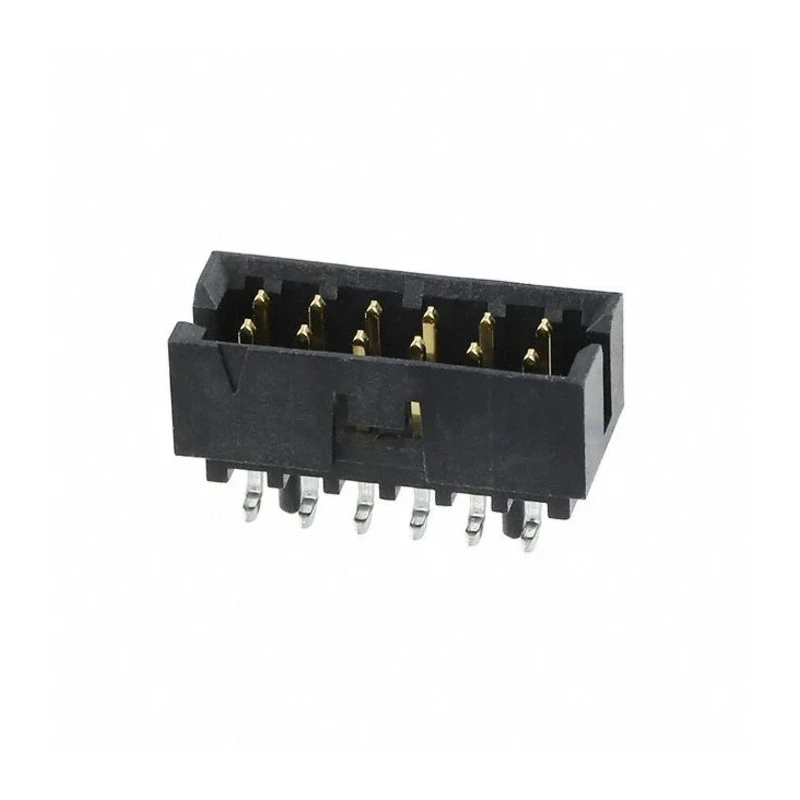

Molex Milli-Grid Series Vertical Surface PCB Header 12 Contacts 2 mm Pitch 2 Rows Shrouded 878321222

Name: Molex Milli-Grid Series Vertical Surface PCB Header 12 Contacts 2 mm Pitch 2 Rows Shrouded 878321222
Brand: Molex
SKU: 403218
Price: 1.83 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	Malaysia
Voltage	125V
Brand	Molex
Orientation	Vertical
Current	2A
Mount Type	Surface
Housing Material	Nylon
Contact Material	Phosphor Bronze
Series	Milli-Grid
Termination Type	Surface Mount
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Standards/Approvals	CSA LR19980, UL E29179
Contact Plating	Gold
Number of Contacts	12
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Milli Grid Connector System

Key Features

Features a shrouded design for enhanced protection and reliability.
Constructed with a nylon housing material for durability.
Contact material is phosphor bronze with gold plating for optimal conductivity.
Rated for a current of 2A and voltage of 125V.
Operates efficiently between -55°C to 105°C temperature range.
Meets CSA LR19980 and UL E29179 standards and approvals.
Includes 12 male contacts arranged in 2 vertical rows with a 2 mm pitch spacing.
Surface mount termination type suitable for PCB applications.

Product Description

Molex 878321222 PCB Header is a high-quality Milli-Grid Series component designed for reliable electronic interconnections on printed circuit boards. Featuring a vertical surface mount design with 12 male contacts arranged in two rows, each with a 2 mm pitch, this header ensures precise and secure connections in various electronic assemblies.

Constructed with a durable nylon housing and phosphor bronze contacts plated with gold, this PCB header offers excellent conductivity and resistance to corrosion. It is engineered to handle a current rating of 2A and a voltage rating of 125V, making it suitable for moderate power applications.

The shrouded configuration protects the contacts from accidental damage and helps maintain signal integrity. Rated to operate within a temperature range from -55°C to 105°C, this component is suitable for demanding industrial, electronic manufacturing, and HVAC control panel applications.

This product complies with industry safety standards, including CSA LR19980 and UL E29179, assuring quality and regulatory conformity. Designed for surface mounting, it simplifies PCB assembly and enhances mechanical stability.

Features a shrouded design for enhanced protection and reliability. Constructed with a nylon housing material for durability. Contact material is phosphor bronze with gold plating for optimal conductivity. Rated for a current of 2A and voltage of 125V.

Operates efficiently between -55°C to 105°C temperature range. Meets CSA LR19980 and UL E29179 standards and approvals. Includes 12 male contacts arranged in 2 vertical rows with a 2 mm pitch spacing. Surface mount termination type suitable for PCB applications.

Manufactured in Malaysia ensuring high-quality production standards.

Ideal for industrial, laboratory, manufacturing, and electronic assembly environments, the Molex Milli-Grid PCB Header 878321222 supports efficient, safe, and durable electrical connections essential for high-performance electronic designs.
