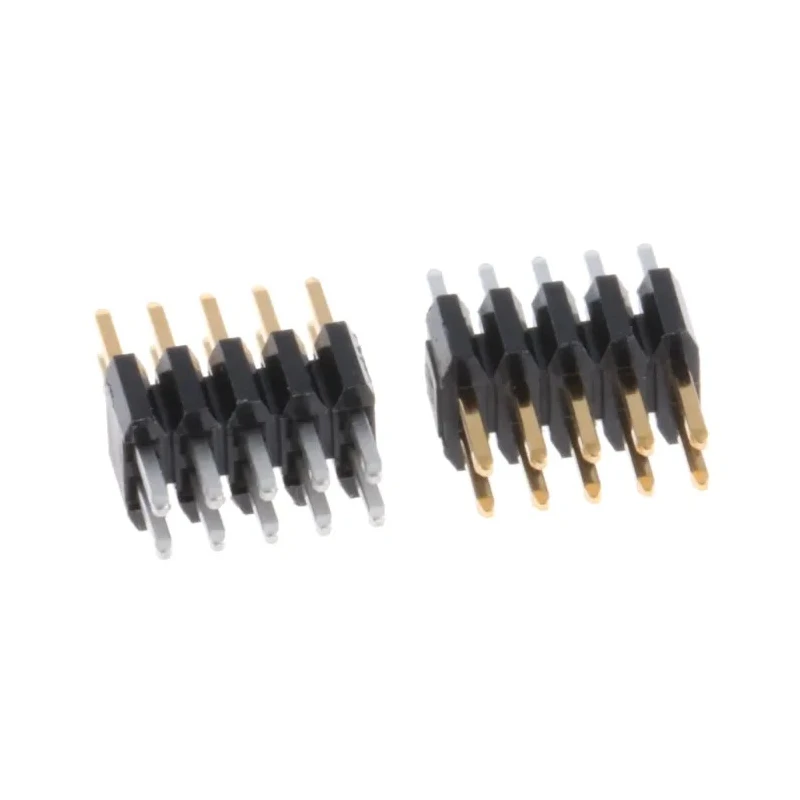

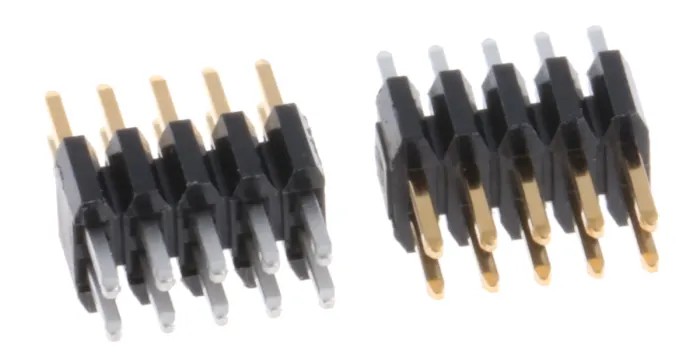

Amphenol Communications Solutions Series Straight Through Hole Pin Header, 10 Contacts, 1.27 mm Pitch, 2 Rows Minitek127

Amphenol Communications Solutions MINITEK127 series straight through hole pin header, model MINITEK127, offers a high-quality and modular 1.27 mm pitch connector solution for electronic and industrial assemblies.

Its thermoplastic housing and gold-plated copper alloy male contacts ensure durability, high conductivity, and resistance to corrosion and thermal stress. This component supports a continuous current rating of 1 ampere and voltage up to 125 volts, making it suitable for a range of low-power signaling and interconnection tasks.

The pin header includes 10 gold-plated contacts arranged in 2 straight rows designed for through hole mounting with solder termination, providing a secure and reliable electrical connection. With operating temperatures ranging from -55°C to 125°C, it can perform reliably in challenging industrial and electronic environments.

The contact pins measure 0.4 mm square with a contact length of 3 mm plated with 0.25 μm gold. Additionally, the solder length is 2.35 mm with a gold flash plating to enhance solder joint integrity. The housing thickness is 2.50 mm and the connector is designed to be end-to-end stackable, facilitating flexible configurations in PCB assembly.

This unshrouded header is compatible with the extensive MINITEK 127™ connector system, which includes various mounting styles and plating options. It is intermateable with other similar 1.27 mm pitch connector types, ensuring interoperability across systems and components.

Constructed with thermoplastic housing for high durability. Copper alloy male contacts plated with gold for superior conductivity. Supports 1 A continuous current and 125 V voltage rating. Through hole mount with solder termination for reliability.

Wide operating temperature range from -55°C to 125°C. Pins feature 0.4 mm square cross-section with 3 mm gold plating contact length. 2.35 mm solder length offers excellent solder joints with gold flash plating. Housing thickness is 2.50 mm with an end-to-end stackable design.

Unshrouded, straight orientation for easy mating with receptacles. Intermateable with common 1.27 mm connector systems for compatibility.

This pin header is widely used in electronics manufacturing, industrial controls, instrumentation, communication equipment, and PCB assembly applications. It supports robust and modular board-to-board interconnections essential for modern electronic systems.
