Samtec Right Angle Through Hole PCB Header 10 Contacts 2.54mm Pitch 2 Row Shrouded IPT1

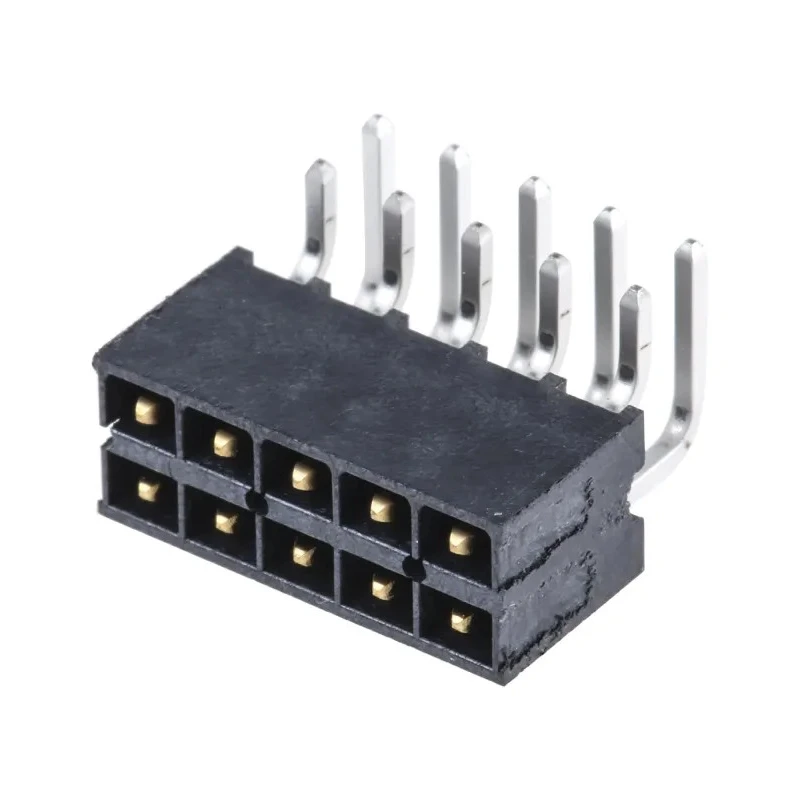

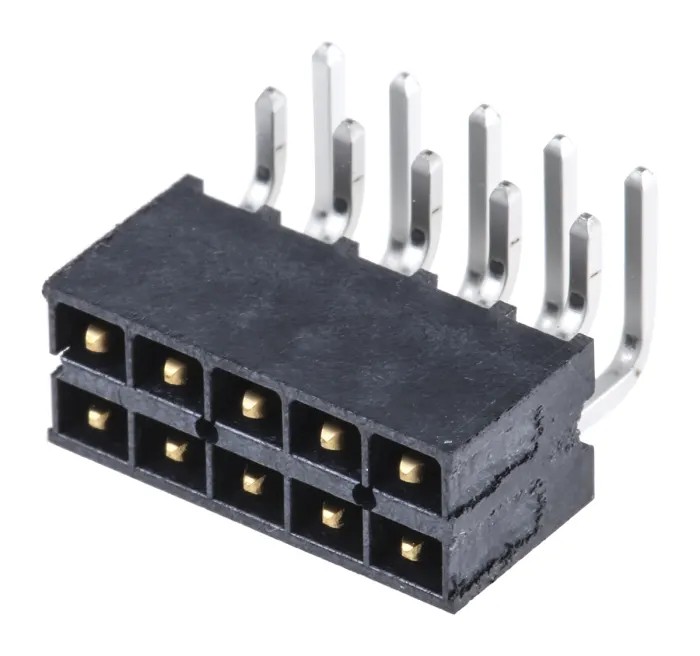

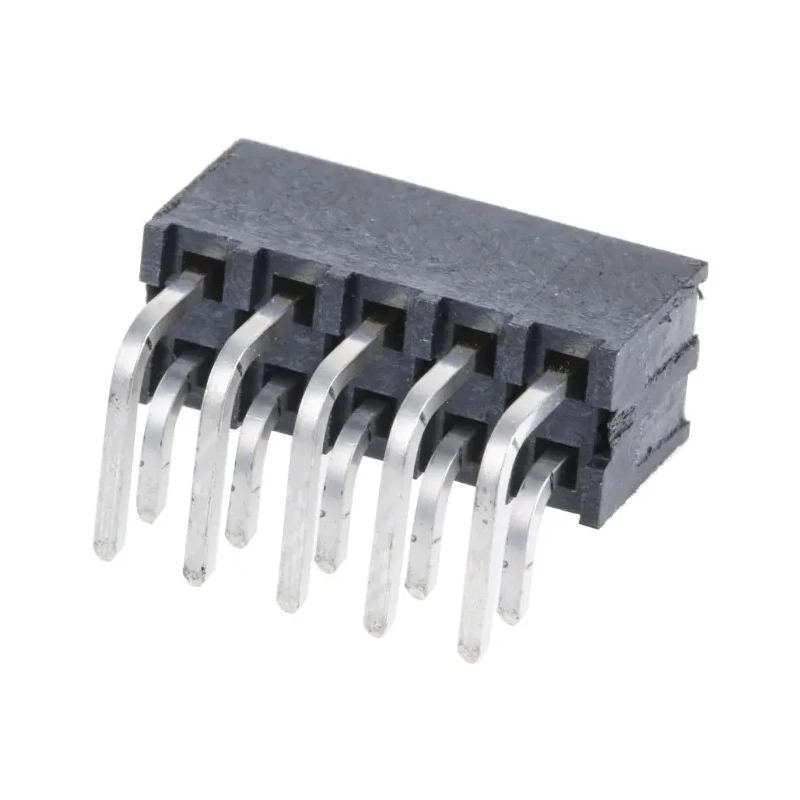

Samtec IPT1-105-01-L-D-RA is a right angle through hole PCB header designed for power and signal board-to-board connections. It features a 2.54 mm pitch with 10 gold-plated phosphor bronze contacts arranged in two rows. The contacts are individually shrouded within a black glass-filled liquid crystal polymer (LCP) housing, offering excellent insulation and ruggedness.

This PCB header supports a current rating of 9A at 20°C ambient temperature and operates reliably between -55°C and +125°C, making it suitable for harsh industrial environments. Its termination type is soldered through hole, providing secure attachment to PCB assemblies.

Part of the IPT1 Mini Mate® series, these headers have a height of 11.05 mm when mated and are suitable for power distribution, industrial automation, and electronic control systems. The right angle orientation helps optimize board space and connection layout.

The gold-plated phosphor bronze contacts enhance conductivity and corrosion resistance. The shrouded design ensures correct mating and improved mechanical protection during assembly and use. This header mates with the Samtec IPS1 series shrouded sockets, enabling reliable and maintainable connections.

Samtec IPT1 series headers comply with standard industry specifications but have no specific approvals listed. They are widely used in power connector assemblies across various electronics and electrical applications.

Designed for board-to-board connection with right angle orientation. Contacts made of phosphor bronze with gold plating for reliability. Housing constructed from robust liquid crystal polymer (LCP). Supports 9A current rating at 20°C ambient temperature.

Operating temperature range from -55°C to +125°C for durability. Solder termination for secure PCB installation. Voltage rating of 777V suitable for power applications. Two rows of 10 contacts with 2.54 mm pitch and row pitch.

Shrouded contacts for enhanced mating security and protection. Compatible with Samtec IPS1 series shrouded sockets.

These PCB headers are ideal for industrial, laboratory, manufacturing, power distribution, and automation applications requiring reliable right angle power connections. Explore more power connectors and PCB Headers at EnvMart.
