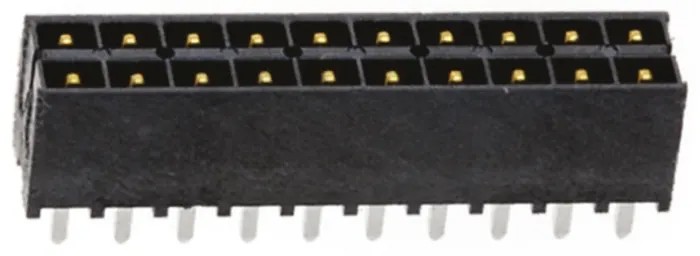

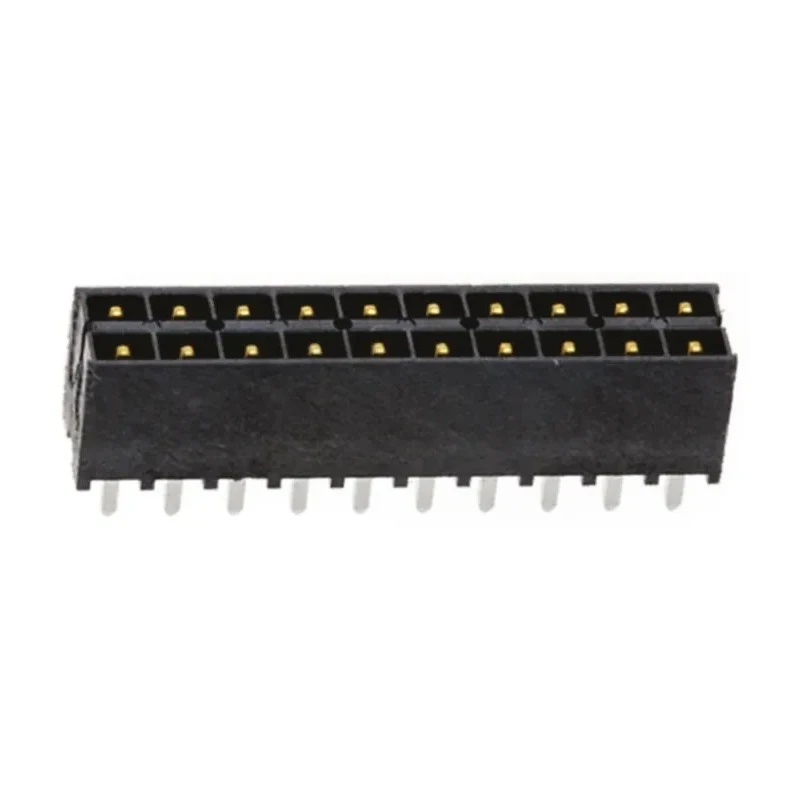

Samtec IPT1 Series Straight Through Hole 20-Contact Shrouded PCB Header, 2.54 mm Pitch, 2 Row, 777 V, 9 A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 777V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 9A |
| Model | IPT1 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | IPT1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- This board-to-board connector supports a maximum current of 9 Amps for reliable power delivery.
- The housing is made of durable Liquid Crystal Polymer for thermal stability and mechanical strength.
- Contacts are made of phosphor bronze with 0.25 μm gold plating for excellent conductivity and corrosion resistance.
- It operates within a wide temperature range from -55°C to 125°C for harsh environments.
- The product is rated for 777 Volts and features solder termination for secure PCB mounting.
- Its shrouded design ensures contact protection and prevents misalignment during connection.
- Ideal for industrial, electronic manufacturing, and power distribution applications.
Product Description
Samtec IPT1-110-01-L-D is a high-quality, shrouded, straight through hole PCB header designed for board-to-board power connections. Featuring 20 contacts arranged in two rows with a 2.54 mm pitch, this connector offers reliable electrical performance with a current rating of 9 Amps and voltage capability up to 777 Volts.
The housing material, Liquid Crystal Polymer (LCP), provides excellent durability and thermal resistance, supporting operating temperatures from -55°C to 125°C. The male contacts are constructed from phosphor bronze and plated with 0.25 μm gold to ensure low contact resistance and long life.
This series uses through hole mounting and solder termination to guarantee stable mechanical and electrical connections on printed circuit boards. The shrouded design protects contacts from damage and prevents incorrect mating, enhancing overall reliability.
Samtec IPT1 series connectors are ideal for applications in industrial power electronics, automation, telecommunications equipment, and other demanding environments that require compact, rugged, and stable power interconnects.
This header supports up to 9 A continuous current at an ambient temperature of 20°C. Its pitch and row configuration is compatible with many PCB designs using Mini Mate® connectors. The material and plating ensure long-lasting corrosion resistance and conductivity.
Designed for through hole PCB mounting with solder termination for secure placement. Operating temperature range accommodates harsh environments and industrial applications. The shrouded construction prevents accidental shorts and ensures proper alignment.
This product mates with compatible IPS1 series PCB-sockets for full power connection solutions.
Samtec products, including this IPT1 series PCB Header, are engineered for reliability and high performance in power connector applications. Explore more power connectors and PCB components in the Electronics & Electricals category at EnvMart.
