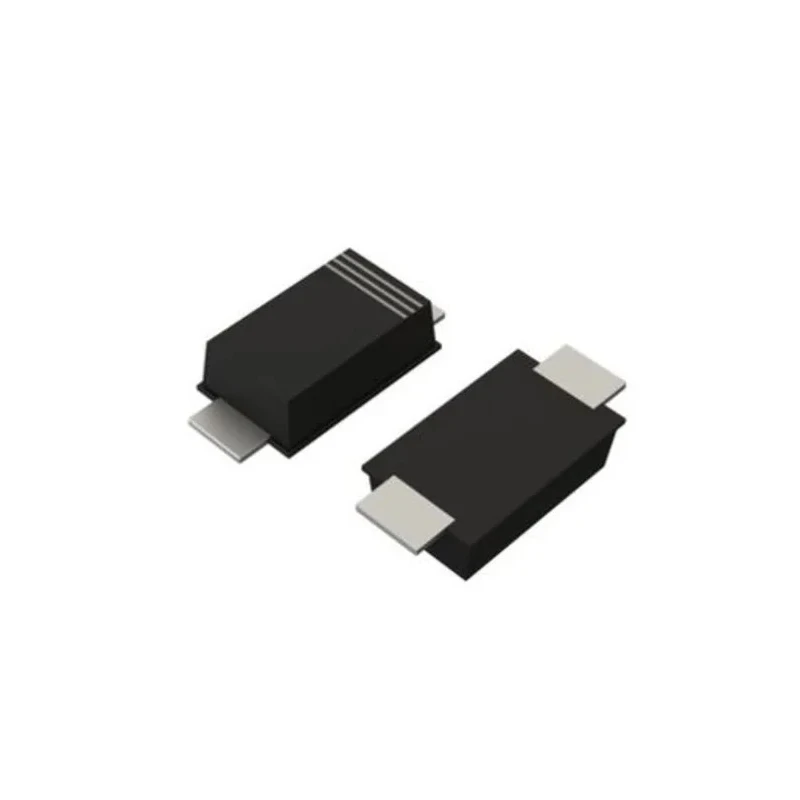

ROHM 400 V 1 A General Purpose 2-Pin PMDU Schottky Diode RR268MM-600TFTR

The ROHM RR268MM-600TFTR is a general-purpose Schottky diode designed for demanding electronic applications requiring efficient rectification. With a 400 V peak reverse repetitive voltage and 1 A maximum continuous forward current, it offers dependable performance in power and discrete semiconductor circuits. Packaged in a compact 2-pin PMDU surface mount package, this diode is well suited for automated assembly and space-constrained PCBs.

Featuring a silicon diffused junction, this Schottky barrier diode delivers low forward voltage drop of 1.1 V, reducing power dissipation during operation. It supports operating temperatures up to 150°C, making it suitable for industrial and automotive environments where thermal stability is critical. The device complies with the automotive AEC-Q101 standard, ensuring high reliability for automotive electronics.

Its small footprint dimensions of 2.6 mm length, 1.6 mm width, and 0.9 mm height allow for efficient layout in compact designs. The single diode configuration provides versatile general purpose rectification for power supplies, switching circuits, and various semiconductor devices.

This diode features a 2-pin PMDU package suitable for compact PCB configurations. Maximum continuous forward current of 1 ampere ensures reliable rectification performance. Peak reverse repetitive voltage is rated at 400 volts for high-voltage applications.

Maximum forward voltage drop of 1.1 volts minimizes power losses during operation. Operational temperature range up to 150°C supports demanding environments. Surface mount type mount facilitates automated assembly processes.

Single diode configuration ideal for general-purpose rectification uses. Complies with automotive standard AEC-Q101, guaranteeing robustness under automotive operating conditions. Compact dimensions: length 2.6 mm, width 1.6 mm, and height 0.9 mm enable space-saving designs.

Silicon diffused type junction Schottky barrier diode for high reliability and fast switching.

This diode is applicable in a range of industrial, automotive, and commercial electronics where efficient and reliable power rectification is required. Its surface mount form factor helps streamline manufacturing processes for high-volume PCB assemblies.
