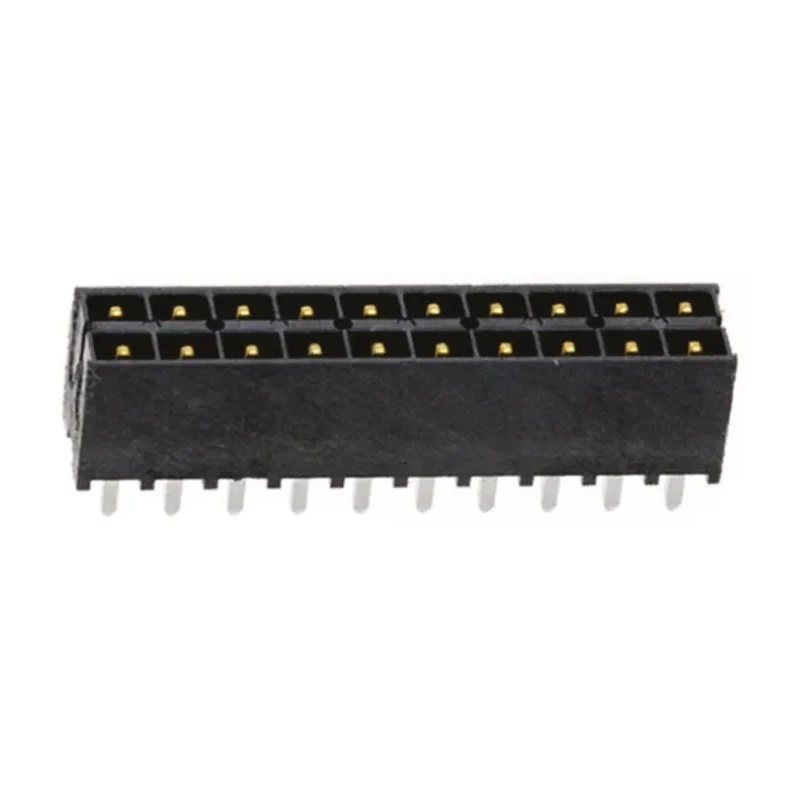

Samtec IPT1 Series Shrouded Straight Through Hole PCB Header 20 Contacts 2.54 mm Pitch 777V 9A

Samtec IPT1-110-01-L-D is a shrouded, straight through hole PCB header designed for board-to-board power connections with 20 contacts spaced at a 2.54 mm pitch. Manufactured with a Liquid Crystal Polymer housing and rugged phosphor bronze contacts plated with 0.25μm gold, this component ensures excellent electrical performance and mechanical durability.

Capable of handling a maximum voltage of 777V and current up to 9A at ambient temperature, it supports operating temperatures ranging between -55°C and +125°C. The two-row configuration and shrouded design help protect contacts from damage and minimize electrical short risks, making it suitable for industrial and electronic equipment assemblies.

Termination is through-hole solder type, allowing secure mounting on printed circuit boards. This header is compatible with Samtec IPS1 series shrouded PCB power sockets, facilitating reliable power transfer within complex control or power distribution systems.

The header features 20 male contacts arranged in 2 rows with 2.54 mm pitch spacing. Contacts are gold plated for corrosion resistance and longevity. Housing material is Liquid Crystal Polymer, offering high mechanical and thermal resistance.

Designed for board-to-board connector system with a shrouded enclosure. Operating temperature range is wide from -55°C to 125°C for versatile industrial usage. Maximum voltage is rated at 777 volts and maximum current at 9 amperes for robust power connections.

This component supports through-hole solder mounting type for secure PCB integration. Typically used in industrial, electronics manufacturing, power distribution, and automation systems.

This Samtec IPT1-110-01-L-D PCB Header is a reliable choice for demanding power connector applications requiring consistent performance and mechanical durability. Explore EnvMart’s extensive catalog for more quality power connectors and related electronic components.
