Molex DuraClik Series Right Angle Surface PCB Header 12 Contacts 2 mm Pitch 1 Row Shrouded 502352-1200

Free Delivery in India | Lowest Global Shipping Charges

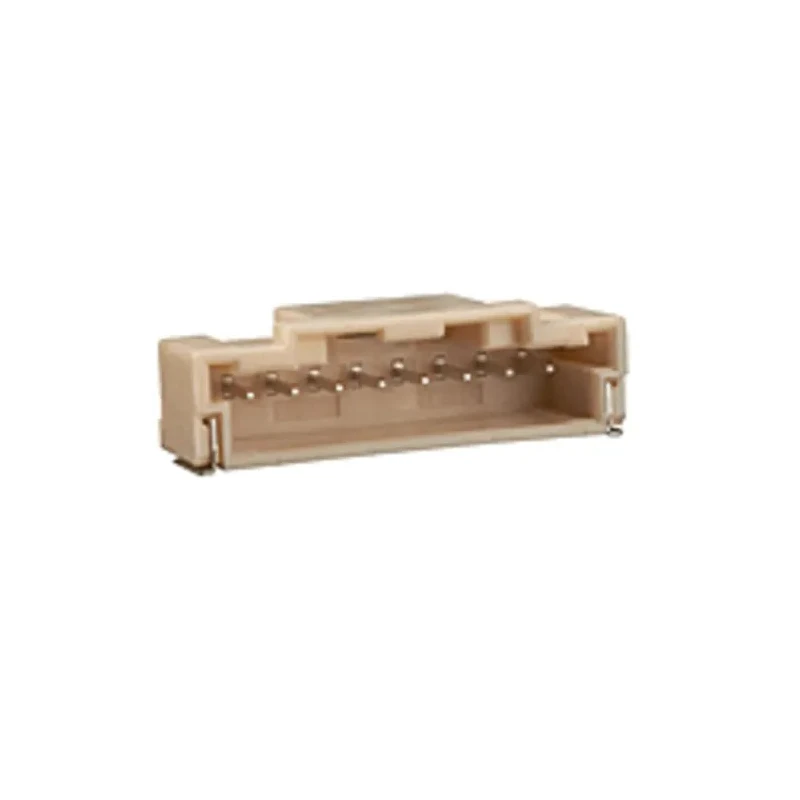

Molex DuraClik Series Right Angle Surface PCB Header 12 Contacts 2 mm Pitch 1 Row Shrouded 502352-1200

Name: Molex DuraClik Series Right Angle Surface PCB Header 12 Contacts 2 mm Pitch 1 Row Shrouded 502352-1200
Brand: Molex
SKU: 399397
Price: 1.97 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	China
Voltage	125V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	DuraClik
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	12
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features a shrouded single row design ensuring protection and alignment.
Constructed with polyamide housing material for durability.
Supports a maximum current of 3A and voltage of 125V.
Right angle orientation facilitates compact PCB layouts.
Contact material is copper alloy with tin plating for corrosion resistance.
Surface mount type for easy PCB assembly and solder termination.
Operates reliably between -40°C and 105°C temperature range.
Male contact gender suitable for many electronic applications.

Product Description

Molex 502352-1200 is a DuraClik Series right angle surface mount PCB header designed for industrial and electronic applications requiring secure wire-to-board connections. This connector offers 12 contacts arranged in a single row with a 2 mm pitch and provides reliable solder termination.

The header utilizes a robust polyamide housing essential for mechanical strength and enduring environmental stresses. The contacts are made of copper alloy and plated with tin, ensuring excellent electrical conductivity and protection against corrosion for extended life span.

With its right angle orientation, the product is ideal for applications demanding compact PCB footprint layout. It supports a continuous current rating of 3A and voltage up to 125V, making it suitable for moderate power electronic circuits and assemblies.

Designed as a shrouded connector, it offers added protection to contacts while enhancing mating reliability. Its surface mount technology mount type enables automated PCB assembly. It operates effectively over a wide temperature range from -40°C to 105°C for various industrial environments.

This PCB header finds applications in electronics manufacturing, power connectors, instrumentation, and telecommunications equipment where durability, precision, and secure connections are critical. It is manufactured in China following standard production quality controls.

Features a shrouded single row design ensuring protection and alignment. Constructed with polyamide housing material for durability. Supports a maximum current of 3A and voltage of 125V. Right angle orientation facilitates compact PCB layouts.

Contact material is copper alloy with tin plating for corrosion resistance. Surface mount type for easy PCB assembly and solder termination. Operates reliably between -40°C and 105°C temperature range. Male contact gender suitable for many electronic applications.
