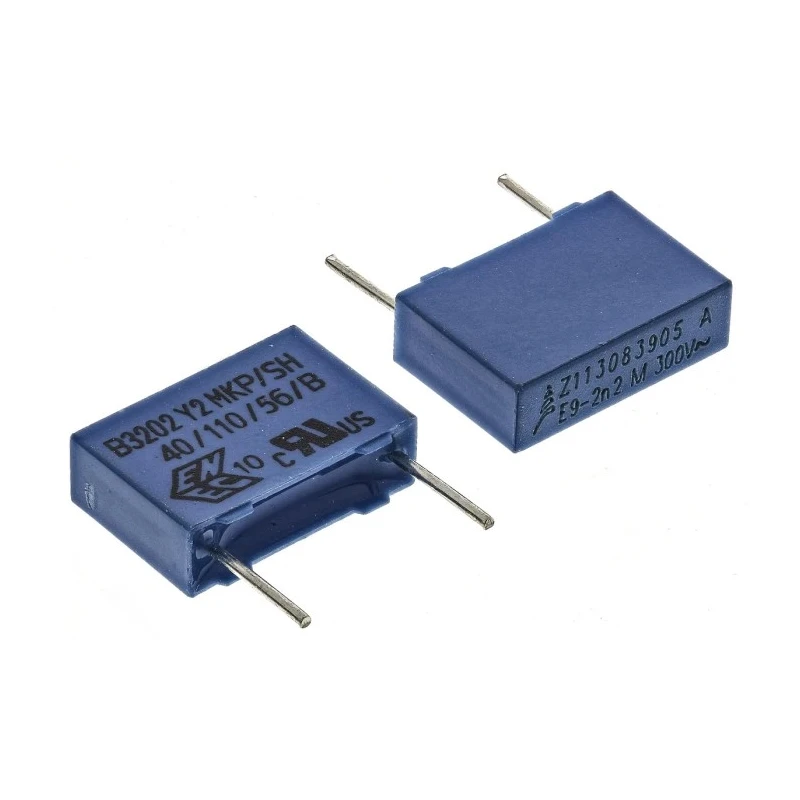

TDK Film Capacitor 2.2 nF 300V AC 300 V DC Through Hole Mount 10mm Lead Pitch B32021A3222M000

TDK B32021A3222M000 Film Capacitor is a high-quality passive electronic component designed for use in industrial, electronics, and power applications. With a capacitance of 2.2 nF and rated voltages of 300V AC and 300V DC, this through-hole mounted capacitor provides reliable performance in interference suppression and line-to-ground circuit designs.

This capacitor is constructed with polypropylene dielectric and housed in a UL 94 V-0 plastic case with epoxy resin sealing to ensure robust protection against environmental and electrical stresses. Its very small form factor (length 13mm, height 9mm, width 4mm) makes it ideal for compact circuit layouts.

Operating temperature ranges from -40°C to 110°C, suitable for a variety of industrial and commercial environments. It complies with multiple international standards including EN 132400, IEC 60384-14 (300V AC), UL1414 (250V AC), UL1283 (400V AC), and CSA C22.2 No.1 and No.8. The capacitor offers excellent self-healing properties and high voltage capabilities to maintain circuit safety and integrity.

The component features a lead pitch of 10mm, pin count 2, and lead diameter 0.6mm for reliable through-hole solder connections. It is not rated for automotive standards but fits many general electronics and power supply applications.

Typical use cases include Y2 class interference suppression for noise reduction and standard line-to-ground filtering in power electronics. Caution is necessary to avoid positioning the capacitor where failure may expose personnel to electric shock risk.

Polypropylene dielectric with plastic case and epoxy seal. Small size with 13x9x4 mm dimensions. High voltage rating of 300V AC and 300V DC. Wide operating temperature: -40°C to 110°C. International standards compliant for safety and reliability.

Through hole mount with 10mm lead pitch and 2 pins. Good self-healing and interference suppression. Suitable for industrial and electrical power applications. Explore EnvMart for related Film Capacitors and electronic components suited to diverse technical and industrial requirements.
