DiodesZetex NPN Bipolar Transistor 3 A DC Collector Current 50 V CE Voltage 4-Pin SOT-223 DNLS350E-13

DiodesZetex DNLS350E-13 is a high-quality NPN bipolar transistor designed for a variety of electronic applications requiring efficient switching and amplification.

It features a maximum DC collector current of 3 amperes and a maximum collector-emitter voltage of 50 volts, making it suitable for general purpose power switching tasks in electronic circuits.

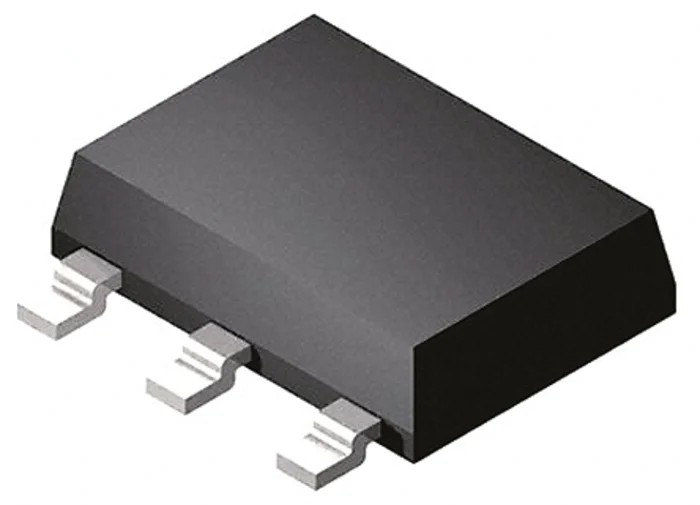

The transistor comes in a surface mount 4-pin SOT-223 package that provides compactness and ease of assembly on printed circuit boards. Its power dissipation is rated at 2 watts, which helps maintain stable operation in demanding applications.

This device offers a minimum DC current gain (hFE) of 100 and a maximum transition frequency of 100 MHz, enabling it to perform effectively at moderate to high frequencies.

Operating temperature ranges from -55°C to 150°C, allowing use in harsh environments and automotive applications, supported by compliance with AEC-Q101 automotive standard certification.

Physical dimensions include a length of 6.55 mm, width of 7.1 mm, and height of 1.65 mm, providing a low-profile footprint suitable for compact and dense PCB layouts.

Manufactured in China to new product standards, this transistor is ideal for applications in industrial electronics, automotive electronics, power management circuits, and various other electronic and electrical components requiring reliable switching transistors.

General purpose transistor suited for surface mount applications. Features a 4-pin SOT-223 package type for easy PCB integration. Maximum power dissipation rated at 2 watts ensuring reliable performance. Operates within a temperature range of -55°C to 150°C for extended environmental use.

Minimum DC current gain (hFE) of 100 for adequate amplification. Maximum transition frequency of 100 MHz suitable for high-frequency circuits. Meets automotive standard AEC-Q101 for stringent quality requirements. Compact size dimensions: 6.55 mm length, 7.1 mm width, and 1.65 mm height.

Manufactured in China with new product condition assurance. Discover more semiconductor devices and electronic components by browsing EnvMart's extensive collection of DiodesZetex Bipolar Transistors.
