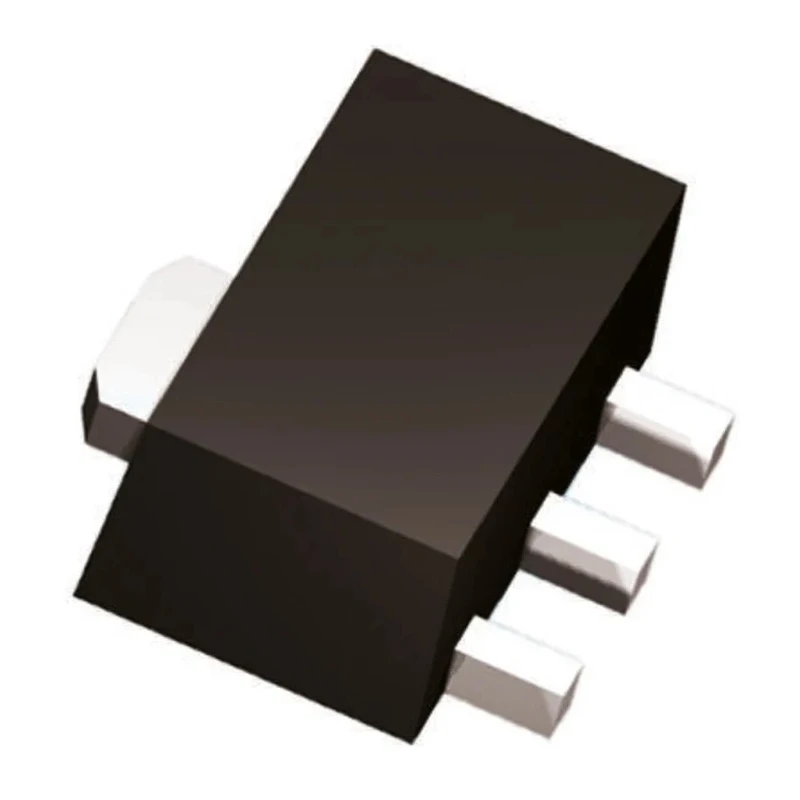

DiodesZetex 4.5 A NPN Bipolar Transistor, 100 V, 3-Pin SOT-89 ZXTN2011ZTA

DiodesZetex ZXTN2011ZTA is a general purpose NPN bipolar transistor designed for surface mount applications in electronic circuits requiring over 1.5 A current handling capability with high reliability. Featuring a compact 3-pin SOT-89 package, it supports a maximum DC collector current of 4.5 A and a collector emitter voltage up to 100 V, making it suitable for medium power switching and amplification tasks in industrial and automotive electronics.

This transistor can withstand a maximum power dissipation of 1.5 W with operation over a broad temperature range from -55°C to 150°C. Its maximum transition frequency of 130 MHz enables use in moderately high frequency circuits. The device also holds a minimum DC current gain of 10, ensuring stable performance in control and switching applications. The compact package dimensions (4.6 mm length, 4.25 mm width, 1.6 mm height) facilitate efficient board space utilization. The transistor meets the automotive standard AEC-Q101, ensuring robustness under harsh automotive environments.

Typical applications include general purpose amplification, switching, and automotive electronic system components requiring dependable bipolar transistors with reliable thermal and electrical characteristics. Its surface mount package type supports modern PCB assembly processes, enhancing manufacturability and production efficiency.

Designed for surface mount applications offering high reliability. Supports maximum DC collector current of 4.5 amperes. Maximum power dissipation of 1.5 watts ensures efficient operation. Wide operating temperature range from -55°C to 150°C.

High frequency transition at 130 MHz for fast switching applications. Low minimum DC current gain of 10 suitable for control circuits. Pin count of 3 compatible with typical transistor configurations. Complies with automotive standard AEC-Q101 for enhanced durability.

Package dimensions approximately 4.6 mm length, 4.25 mm width, and 1.6 mm height. Maximum collector base voltage rating of 200 V for voltage tolerance. Explore a wide range of Bipolar Transistors and semiconductor components suitable for electronic design and manufacturing at EnvMart.
