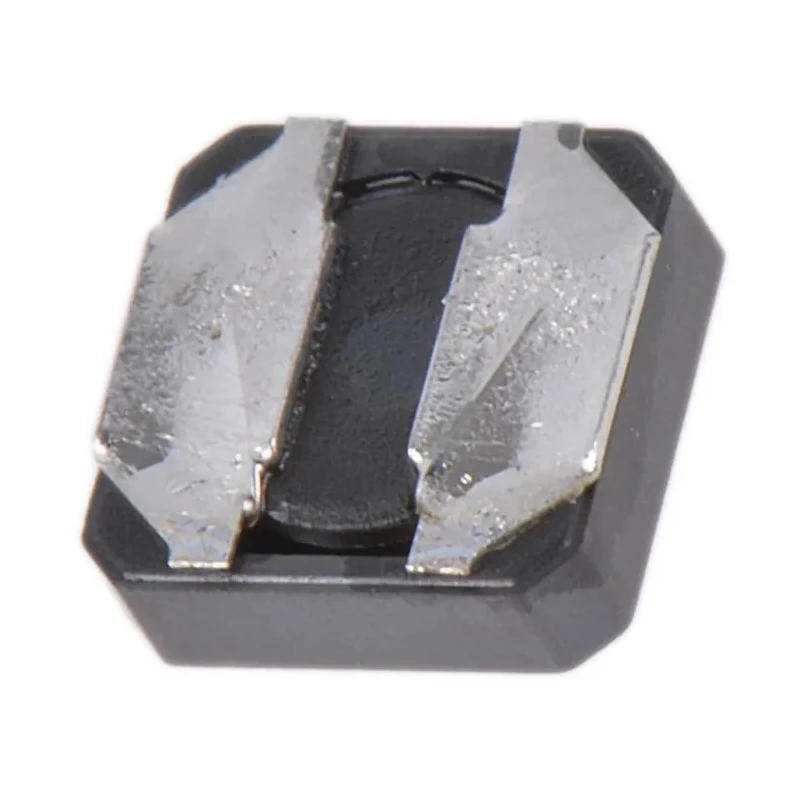

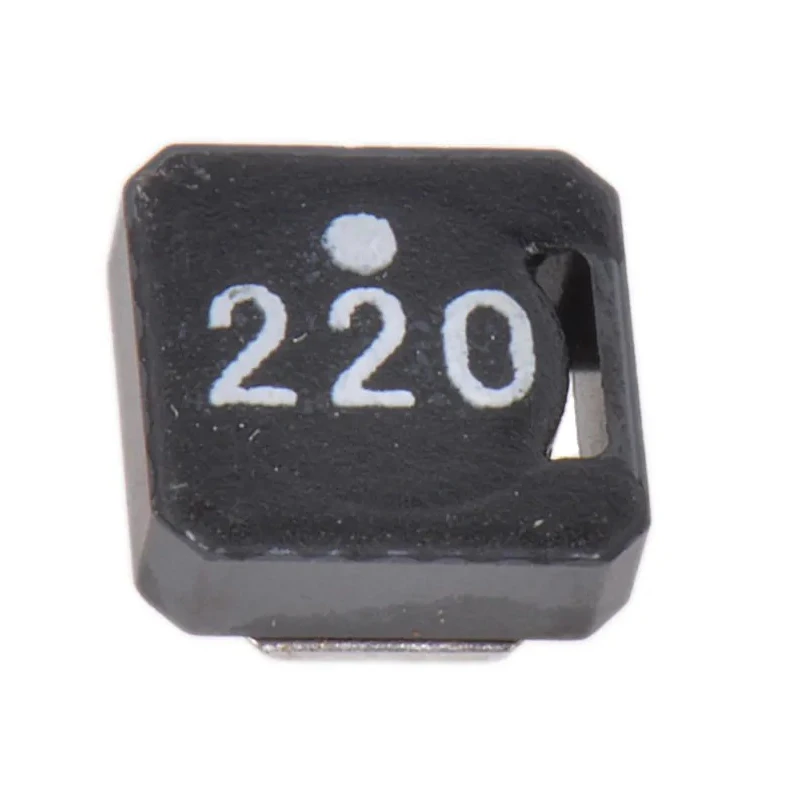

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 22μH ±20/±30 %, 1 A Idc VLCF5020T-220MR75-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 5.3mm |
| Model | VLCF5020T-220MR75-1 |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | VLCF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 5020 |
| Maximum DC Current | 1A |
| Maximum DC Resistance | 496mΩ |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- Magnetically shielded construction reduces electromagnetic interference in circuits.
- Suitable for power circuits in mobile devices such as HDDs, digital video cameras, and LCD displays.
- The surface mount package measures 5.3mm length, 2mm height, and 5mm depth for compact PCB layouts.
- Allows operation between -40 degrees Celsius to 105 degrees Celsius for robust environmental performance.
- Wirewound inductor design offers reliable inductance and stability for DC/DC converters.
- RoHS compliant and moulded product construction for environmental and mechanical durability.
- Maximum DC resistance is 496 milliohms ensuring low power loss.
- Includes solderable surface mount termination style suited for modern assembly processes.
Product Description
TDK VLCF5020T-220MR75-1 is a high-quality shielded wirewound surface mount inductor designed with a ferrite core and housed in a 5020 case. This inductor provides 22 microhenry inductance with a tolerance of ±20/±30%, capable of handling a maximum DC current of 1 ampere. Its magnetic shielding significantly reduces electromagnetic interference, making it ideal for sensitive power circuit applications.
The device measures 5.3 mm in length, 2 mm in height, and 5 mm in depth, fitting compact layouts on PCBs. It is suitable for operation in a wide temperature range from -40°C to 105°C, supporting reliable performance in various industrial and commercial environments. The wirewound construction ensures stable inductance essential for DC/DC converters, mobile devices, digital video cameras, hard disk drives, and LCD display applications.
The surface mount termination style simplifies PCB mounting with tape and reel packaging, enhancing production efficiency. RoHS compliance guarantees environmentally responsible manufacturing. This inductor features a maximum DC resistance of 496 milliohms, offering efficient power handling with minimal loss. Molded construction increases mechanical strength and durability during handling and operation.
Magnetically shielded wirewound inductor minimizes EMI in power supply lines. Compact 5020 case dimensions enable space-saving PCB design. Wide operating temperature range supports industrial and commercial use cases. RoHS certified for environmental safety and compliance.
Ideal for mobile device power supplies, hard disk drives, and digital video cameras. Facilitates DC/DC conversion with steady inductance output. Tape and reel packaging ready for automated PCB assembly processes. Ferrite core improves magnetic properties and inductor efficiency.
This TDK VLCF5020T-220MR75-1 inductor is a professional series product suited for electronics manufacturers requiring reliable power inductors with shielded construction. Browse more Surface Mount Inductors and passive components at EnvMart for a wide selection of industrial electronic parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 22 microhenries (μH) with a tolerance of ±20/±30%.
The maximum DC current for this inductor is 1 ampere (A).
It measures 5.3 mm in length, 2 mm in height, and 5 mm in depth, fitting compact PCB layouts.
It can operate within a temperature range of -40°C to 105°C.
The inductor is constructed with a ferrite core, which enhances its magnetic properties.
The maximum DC resistance is 496 milliohms (mΩ), ensuring low power loss.
It features a surface mount termination style, suitable for modern assembly processes.
This inductor is packaged in tape and reel format, facilitating automated PCB assembly.
It is suitable for power circuits in mobile devices, including HDDs, digital video cameras, and LCD displays.
Yes, this inductor is RoHS compliant, ensuring environmentally responsible manufacturing.
It features a wirewound construction, providing reliable inductance and stability for DC/DC converters.
The country of origin for this inductor is India.
