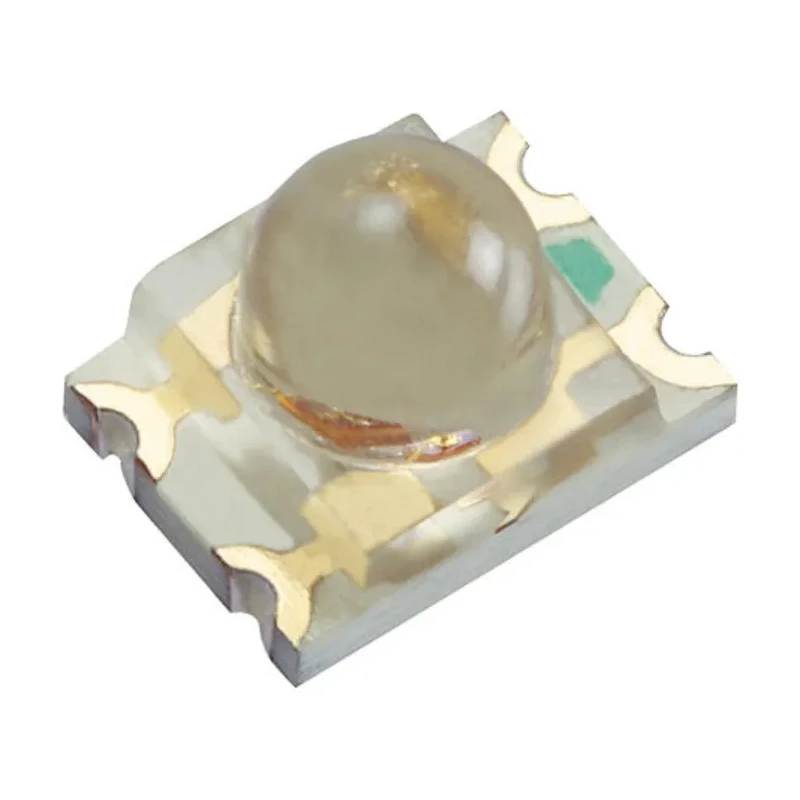

Kingbright 2.5 V Green, Red 2 LEDs 3224 Surface Mount LED with Dome Lens KPBD-3224ESGC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Dimensions | 3.2 x 2.4 mm |
| Model | KPBD-3224ESGC |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Number Of Leds | 2 |
| Maximum forward current | 30mA |
| Viewing angle | 20 ° |
| Package Type | 3224 |
| Standards/Approvals | RoHS |
| LED Colour | Green, Red |
| Dominant Wavelength | 617nm |
| Forward Voltage | 2.5V |
| Number of Pins | 4 |
| LED Luminosity | 55 mcd, 70 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 3.2 x 2.4 x 2.4 mm |
| Lens Shape | Dome |
Key Features
- Features two LEDs in standard 3224 (1209) surface mount package.
- Bi-colour LED with green and red light emission.
- Maximum forward current is 30mA ensuring low power consumption.
- Viewing angle of 20 degrees for focused light output.
- Dome-shaped clear lens provides high luminosity and protection.
- Compact dimensions of 3.2 x 2.4 x 2.4 mm fit tight PCB layouts.
- Maximum power dissipation of 75mW suitable for efficient operation.
- Forward voltage of 2.5 V typical for standard LED drivers.
Product Description
Kingbright KPBD-3224ESGC is a bi-colour LED module featuring two LEDs emitting green and red light, housed in a compact 3224 (1209) surface mount package with a domed clear lens. Operating at a forward voltage of 2.5 V and a maximum forward current of 30mA, this LED offers efficient low power operation with a luminous intensity of 55 mcd for green and 70 mcd for red. Its focused viewing angle of 20 degrees and compact dimensions of 3.2 x 2.4 x 2.4 mm make it ideal for PCB indicator lights and backlighting applications in electronic devices and instrumentation.
The surface mount design and tape & reel packaging support automated assembly lines enhancing production efficiency. Kingbright's adherence to RoHS standards ensures the product is environmentally friendly and suitable for regulated commercial and industrial applications. This LED is manufactured in China and does not conform to automotive standards, making it best suited for electronics, laboratory, instrumentation, and consumer product sectors.
Applications include status indicators on printed circuit boards, backlighting in control panels, and signaling devices requiring dual colour LEDs. The dome lens provides good light dispersion and protection to the LED chips ensuring durability in various operational environments.
Two LEDs (green and red) in a single compact package for bi-colour indication. Standard 3224 surface mount package facilitates space-saving PCB design. Low forward voltage and current reduce energy consumption and heat generation.
Focused 20° viewing angle enables precise lighting in indicator applications. Clear dome lens optimizes light output and protects the LED die. Tape and reel packaging compatible with automated pick-and-place systems. RoHS compliant for environmentally safe electronics manufacturing.
Explore Kingbright LED and electronic components in the Electronics & Electricals category at EnvMart for quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this LED is 2.5 V, which is typical for standard LED drivers.
The maximum forward current for the KPBD-3224ESGC is 30 mA, ensuring low power consumption during operation.
This model has compact dimensions of 3.2 x 2.4 x 2.4 mm, making it suitable for tight PCB layouts.
It features a focused viewing angle of 20 degrees, which allows for precise lighting in indicator applications.
The KPBD-3224ESGC emits green and red light, functioning as a bi-colour LED.
The luminous intensity is 55 mcd for the green LED and 70 mcd for the red LED.
It is packaged in tape and reel format, which is compatible with automated pick-and-place systems for efficient assembly.
Yes, this LED is RoHS compliant, ensuring it meets environmental regulations for electronics manufacturing.
The maximum power dissipation for the KPBD-3224ESGC is 75 mW, suitable for efficient operation.
The LED features a dome-shaped lens that provides good light dispersion and protection for the LED chips.
This model includes two LEDs, one green and one red, in a single compact package.
It is suitable for applications such as status indicators on printed circuit boards, backlighting in control panels, and signaling devices requiring dual colour LEDs.
