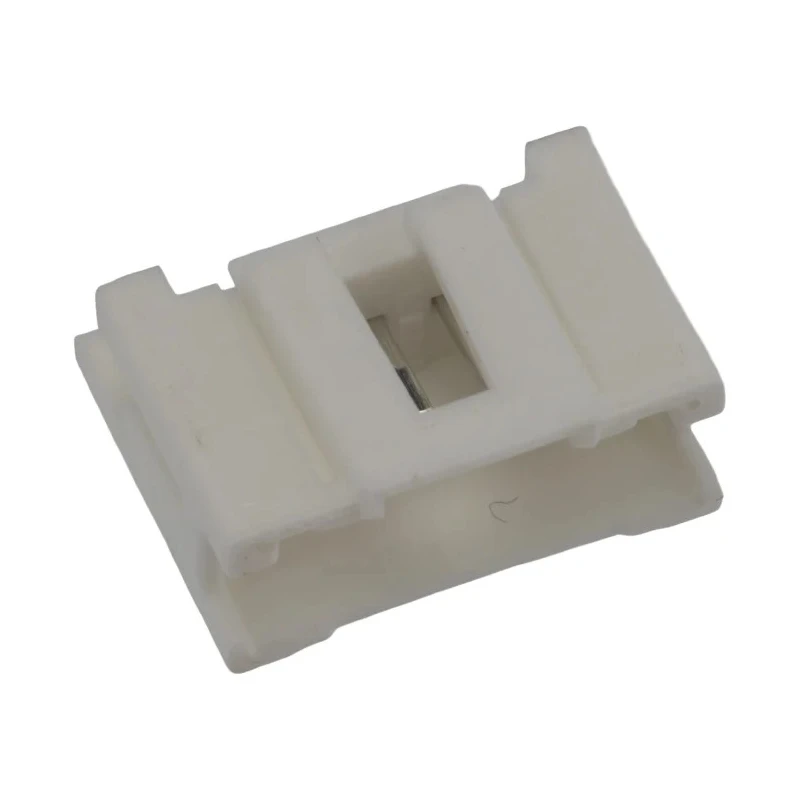

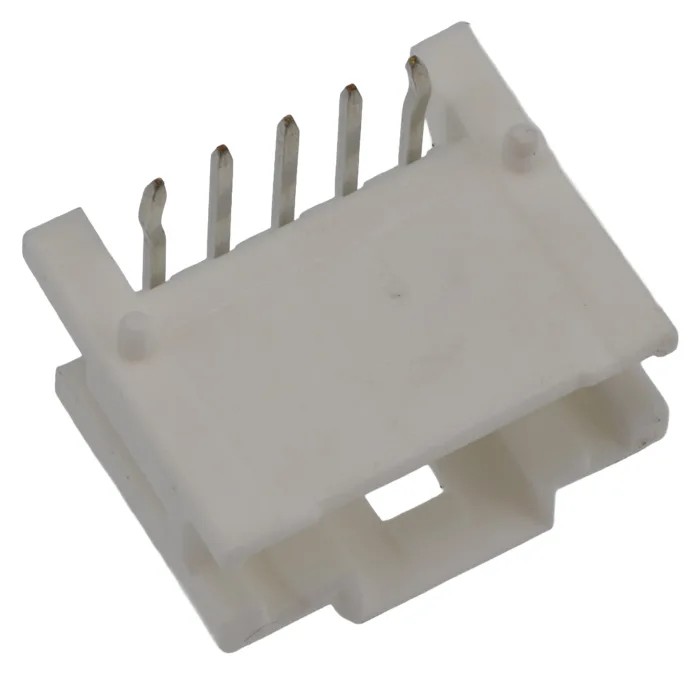

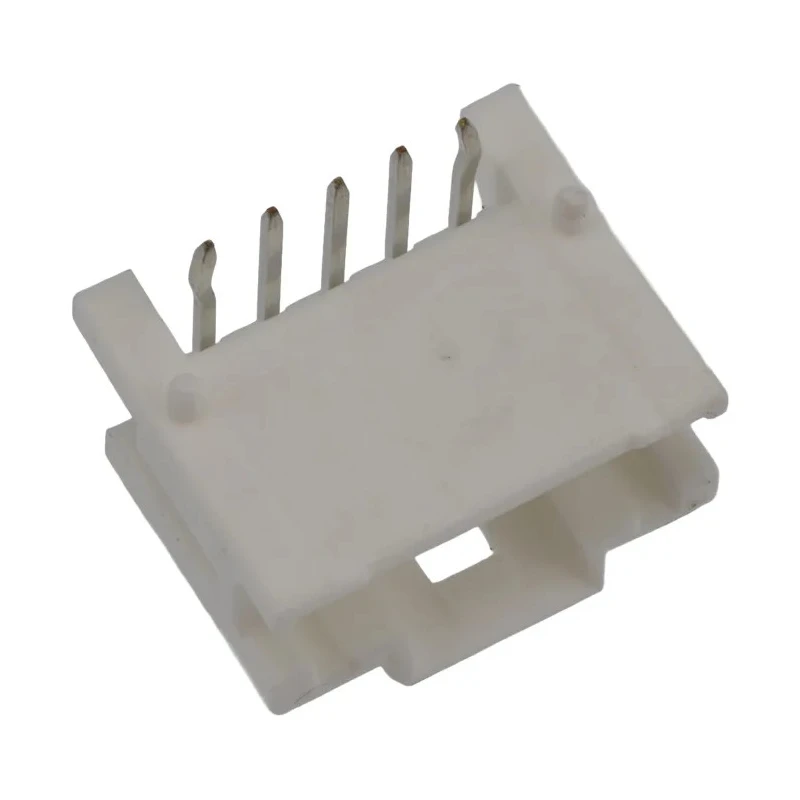

Molex MicroClasp Series Right Angle Through Hole PCB Header, 5 Contact(s), 2 mm Pitch, 1 Row, Shrouded 55935-0510

Free Delivery in India | Lowest Global Shipping Charges

Molex MicroClasp Series Right Angle Through Hole PCB Header, 5 Contact(s), 2 mm Pitch, 1 Row, Shrouded 55935-0510

Name: Molex MicroClasp Series Right Angle Through Hole PCB Header, 5 Contact(s), 2 mm Pitch, 1 Row, Shrouded 55935-0510
Brand: Molex
SKU: 389783
Price: 0.74 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	Japan
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Polyester
Contact Material	Tin
Series	MicroClasp
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Interfaces	lance system
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.2mm
Mating Pin Length	2mm

Key Features

This PCB header features a single row design with 5 male contacts.
The MicroClasp series provides a positive inner lock with latch protection and an audible mating click.
It carries up to 3.0 A current at 250 V in a compact 2.00 mm pitch spacing.
Constructed with a polyester housing and tin-plated contacts for reliable connections.
The tail pin length is 3.2 mm and the mating pin length is 2 mm for through hole soldering.
The connector orientation is right angle, suitable for space saving on PCBs.
Operates safely within a temperature range of -40°C to 105°C.
Designed for easy mating/unmating with low insertion force terminals.

Product Description

Molex 55935-0510 MicroClasp Series is a high-quality right angle through hole PCB header designed for wire-to-board connector systems. Featuring 5 male contacts in a single row with a fine 2 mm pitch, it offers compactness and efficient board space utilization.

The shrouded housing is made of durable polyester material, ensuring mechanical protection and secure retention during operation. The MicroClasp range incorporates an inner positive lock system to provide latch protection and a distinctive audible click when mated properly, guaranteeing reliable connections.

Contacts are tin-plated to resist corrosion and provide stable electrical conductivity. This header supports currents up to 3.0 A at up to 250 V voltage rating, suitable for diverse electronics applications including industrial, commercial, and communication devices.

Single row, 5 contacts with 2 mm pitch. Right angle orientation for PCB space savings. Positive inner locking mechanism for secure mating. Low insertion force terminals for easy assembly and servicing. Operating temperature range from -40°C to 105°C.

Durable polyester housing with tin-plated contacts. Through hole solder mounting for robust mechanical stability.

This product is made in Japan, ensuring high manufacturing standards and quality control. The Molex MicroClasp Series 55935-0510 is widely used in electronic component manufacturing, power connectors, and PCB interconnection solutions, supporting efficient and reliable electrical connections.
