Molex PicoBlade Series Right Angle Surface PCB Header 9 Contacts 1.25 mm Pitch 1 Row Shrouded 532610971

Free Delivery in India | Lowest Global Shipping Charges

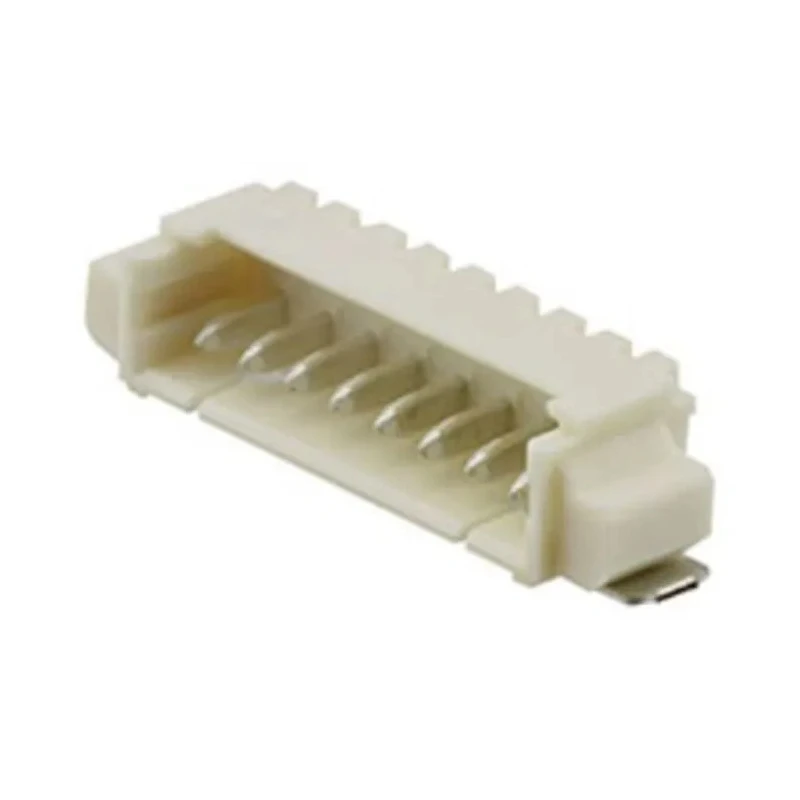

Molex PicoBlade Series Right Angle Surface PCB Header 9 Contacts 1.25 mm Pitch 1 Row Shrouded 532610971

Name: Molex PicoBlade Series Right Angle Surface PCB Header 9 Contacts 1.25 mm Pitch 1 Row Shrouded 532610971
Brand: Molex
SKU: 402264
Price: 0.78 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	Malaysia
Voltage	125V
Brand	Molex
Orientation	Right Angle
Current	1A
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Phosphor Bronze
Series	PicoBlade
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	1.25mm
Contact Plating	Tin
Number of Contacts	9
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Rated for 1A current and 125V voltage for reliable electrical performance.
Constructed with thermoplastic housing material for durable protection.
Features phosphor bronze contacts with tin plating for corrosion resistance.
Right angle orientation allows optimal PCB mounting and space saving.
Operates in temperature range from -40°C to 105°C for versatile environmental usage.
Shrouded design enhances connector safety and prevents damage.
Solder termination ensures strong connection to PCB surface.
Compact pitch of 1.25 mm supports fine pitch PCB layouts.

Product Description

Molex 532610971 PicoBlade Series Right Angle Surface PCB Header is a precision electronic connector ideal for wire-to-board applications requiring reliable current and voltage ratings.

This PCB header features 9 contacts arranged in a single row with a pitch of 1.25 mm, ensuring compact and efficient PCB layouts. Its thermoplastic housing offers robust insulation and durability under various conditions.

The contacts are made of phosphor bronze plated with tin for excellent conductivity and corrosion resistance. The right angle orientation facilitates convenient surface mounting while optimizing board space.

Designed for harsh environments, it operates reliably from -40°C to 105°C, making it suitable for industrial, commercial, and electronic manufacturing usage. The shrouded construction protects contacts from damage and misalignment during assembly.

The termination type is solder, providing secure and lasting connections. Its voltage rating of 125V and current rating of 1A meet typical power requirements for PCB connectors.

Manufactured in Malaysia, this connector adheres to RoHS compliance, ensuring environmental safety standards are met. Packaged on reels for automated PCB assembly processes, it supports efficient manufacturing workflows.

Rated for 1A current and 125V voltage for electrical reliability. Thermoplastic housing offers insulation and durability. Phosphor bronze tin-plated contacts resist corrosion. Right angle orientation for optimal PCB mounting.

Operating temperature range from -40°C to 105°C. Shrouded design protects contacts during assembly. Solder termination for strong PCB connection. Compact 1.25 mm pitch supports fine pitch boards. Made in Malaysia and RoHS compliant.

This Molex PicoBlade series PCB Header is widely used in electronic manufacturing, industrial automation, telecommunications, and consumer electronics due to its compact size and reliable performance. Explore more high-quality PCB connectors and accessories on EnvMart for your precision electronic projects.
