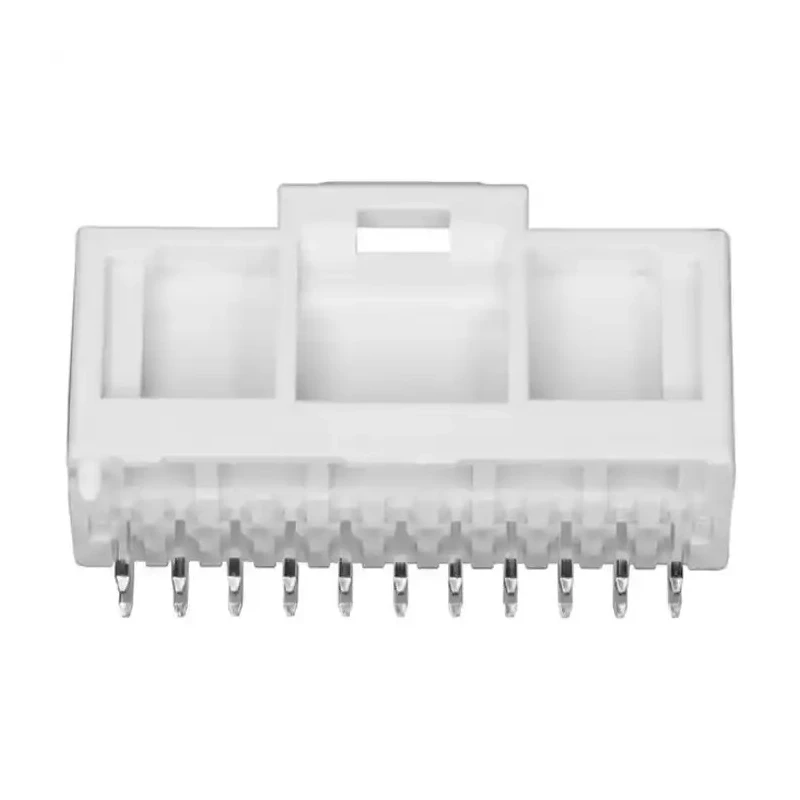

Molex iGrid Series Vertical Through Hole PCB Header, 22 Contacts, 2 mm Pitch, 2 Row, Shrouded 5016452220

Free Delivery in India | Lowest Global Shipping Charges

Molex iGrid Series Vertical Through Hole PCB Header, 22 Contacts, 2 mm Pitch, 2 Row, Shrouded 5016452220

Name: Molex iGrid Series Vertical Through Hole PCB Header, 22 Contacts, 2 mm Pitch, 2 Row, Shrouded 5016452220
Brand: Molex
SKU: 403208
Price: 1.59 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	Vietnam
Voltage	250V
Brand	Molex
Orientation	Vertical
Current	2A
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Tin
Series	iGrid
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	22
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Has a vertical body orientation suitable for wire-to-board connection.
Includes 22 contacts arranged in 2 rows with 2 mm pitch.
Constructed with polyamide housing and tin contact material plated with gold.
Operates reliably at voltages up to 250 V and currents up to 2 A.
Designed for through-hole mounting with solder termination.
Features male contact gender for compatibility with female connectors.
Rated for operating temperatures from -40°C to 105°C.
Shrouded design improves connection reliability and protection.

Product Description

Molex 5016452220 is a PCB Header from the iGrid Series designed for reliable electrical connections in electronic assemblies. It features a vertical orientation and is suitable for through-hole mounting on printed circuit boards. The header offers 22 contacts arranged in 2 rows with a precise 2 mm pitch, ensuring secure wire-to-board connections.

The housing is made of durable polyamide, providing mechanical strength and insulation. Contacts are manufactured from tin material with gold plating, which enhances corrosion resistance and conductivity. This component is designed for solder termination and is equipped with male contact gender for standard interfacing.

Operating parameters include a rated current of 2 amperes and a maximum voltage rating of 250 volts. It functions effectively within an operating temperature range of -40°C to 105°C, making it suitable for diverse industrial and commercial applications. The shrouded design helps protect contacts and ensures stable mating.

This PCB header is ideal for electronics manufacturing, industrial control systems, power electronics, and equipment requiring robust and precise interconnections. Its vertical mount type and small 2 mm pitch make it suitable for densely packed circuit board layouts.

Vertical body orientation for wire-to-board connections. 22 contacts arranged in 2 rows with 2 mm pitch. Constructed from polyamide housing and tin contact material with gold plating. Rated for 2 A current and 250 V voltage.

Supports operating temperatures from -40°C to 105°C. Solder termination and male contact gender design. Shrouded connector providing protection and durability.

Manufactured in Vietnam, this Molex PCB Header complies with relevant industrial standards, although no specific approvals are listed. It is suitable for use in electronics, power connectors, instrumentation, and other fields requiring precise PCB connection solutions.

Explore more Molex connectors and components through EnvMart to meet your industrial assembly and design needs.
