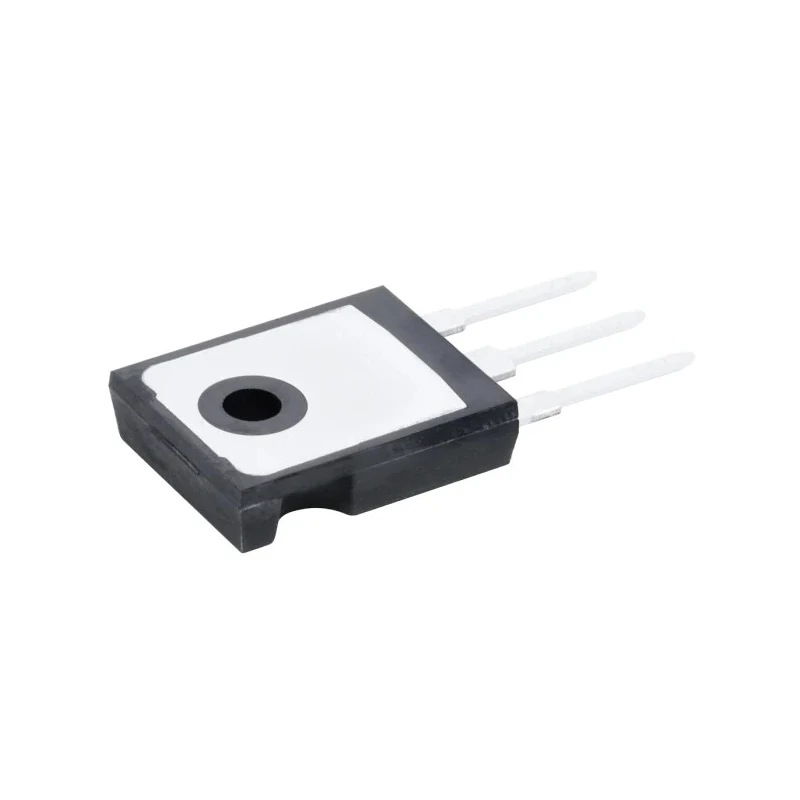

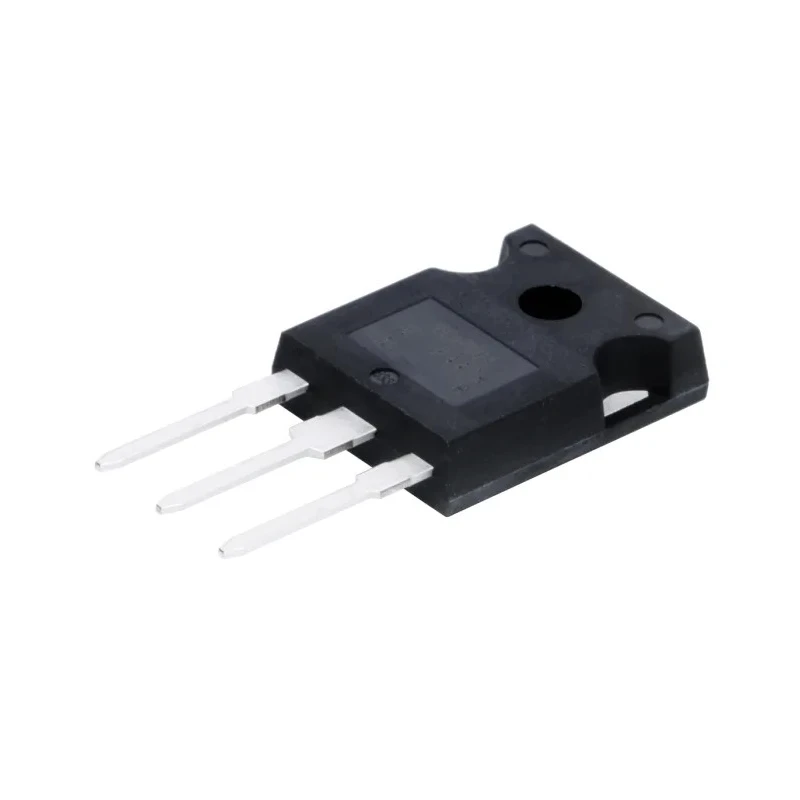

Vishay 400 V 60 A Switching Diode Single Configuration 3-Pin Through Hole TO-247AC Package VS-60APU04-N3
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 20.7mm |
| Brand | Vishay |
| Height | 20.7mm |
| Length | 15.87mm |
| Model | VS-60APU04-N3 |
| Width | 5.31mm |
| Mount Type | Through Hole |
| Series | VS-60 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 60ns |
Key Features
- Designed for high-current switching applications requiring ultrafast recovery.
- Single diode configuration suitable for discrete semiconductor circuits.
- Maximum forward voltage drop of 1.25 V ensures efficient conduction.
- Extended operating temperature range from -55°C to 175°C.
- Peak reverse repetitive voltage rated at 400 V for reliability.
- Peak non-repetitive surge current up to 600 A allows robustness against transient currents.
- Compact dimensions with a length of 15.87 mm and width of 5.31 mm.
- Ultrafast recovery time of 60 ns enhances performance in switching circuits.
Product Description
Vishay VS-60APU04-N3 switching diode is a high-performance discrete semiconductor designed for demanding power electronics applications. This diode supports a maximum continuous forward current of 60 A and can withstand peak reverse repetitive voltages up to 400 V, making it ideal for industrial power switching and rectification circuits.
Built in the reliable TO-247AC package with 3 pins and through hole mount type, this device offers excellent thermal handling capabilities with an operating temperature range from -55°C to 175°C. Its single diode configuration provides versatility for discrete circuit designs requiring fast switching and low forward voltage drops.
The diode features an ultrafast recovery time of 60 ns and a maximum forward voltage of 1.25 V, contributing to energy efficiency in high-frequency switching applications such as power supplies, automotive electronics, and industrial control systems.
Measuring 15.87 mm in length, 5.31 mm in width, and a diameter of 20.7 mm, the compact size facilitates easy integration on PCBs with through hole assembly.
Other notable specifications include a peak reverse current of 50 μA and ability to handle non-repetitive surge currents of up to 600 A for transient conditions. This diode series, VS-60, is renowned for robust performance in semiconductor switching roles.
Designed for high-current switching applications requiring ultrafast recovery. Single diode configuration suitable for discrete semiconductor circuits. Maximum forward voltage drop of 1.25 V ensures efficient conduction.
Extended operating temperature range from -55°C to 175°C. Peak reverse repetitive voltage rated at 400 V for reliability. Peak non-repetitive surge current up to 600 A allows robustness against transient currents. Compact package with dimensions optimized for PCB integration.
Ultrafast recovery time of 60 ns enhances performance in switching circuits. Manufactured in China under Vishay’s quality standards.
This switching diode is suited for diverse industrial, laboratory, and manufacturing environments including power supply units, automotive electronics, industrial automation, and high-reliability electrical equipment.
Explore more semiconductor devices and related components on EnvMart for advanced electronic design and production needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-60APU04-N3 diode is 60 A.
This model has a peak reverse repetitive voltage rating of 400 V, ensuring reliability in high-voltage applications.
The ultrafast recovery time of the VS-60APU04-N3 is 60 ns, enhancing its performance in switching circuits.
The diode measures 15.87 mm in length, 5.31 mm in width, and has a diameter of 20.7 mm, making it suitable for PCB integration.
The maximum forward voltage drop for this diode is 1.25 V, which contributes to efficient conduction.
The operating temperature range of the VS-60APU04-N3 is from -55°C to 175°C, allowing for versatility in various environments.
This diode features a through-hole mount type, which facilitates easy installation on PCBs.
The diode can handle a peak non-repetitive surge current of up to 600 A, providing robustness against transient conditions.
The VS-60APU04-N3 has a pin count of 3, which is standard for its TO-247AC package.
The peak reverse current for this diode is rated at 50 μA, indicating low leakage under reverse bias conditions.
This switching diode is suitable for industrial power switching, rectification circuits, automotive electronics, and high-reliability electrical equipment.
The Vishay VS-60APU04-N3 is manufactured in China under Vishay’s quality standards.
