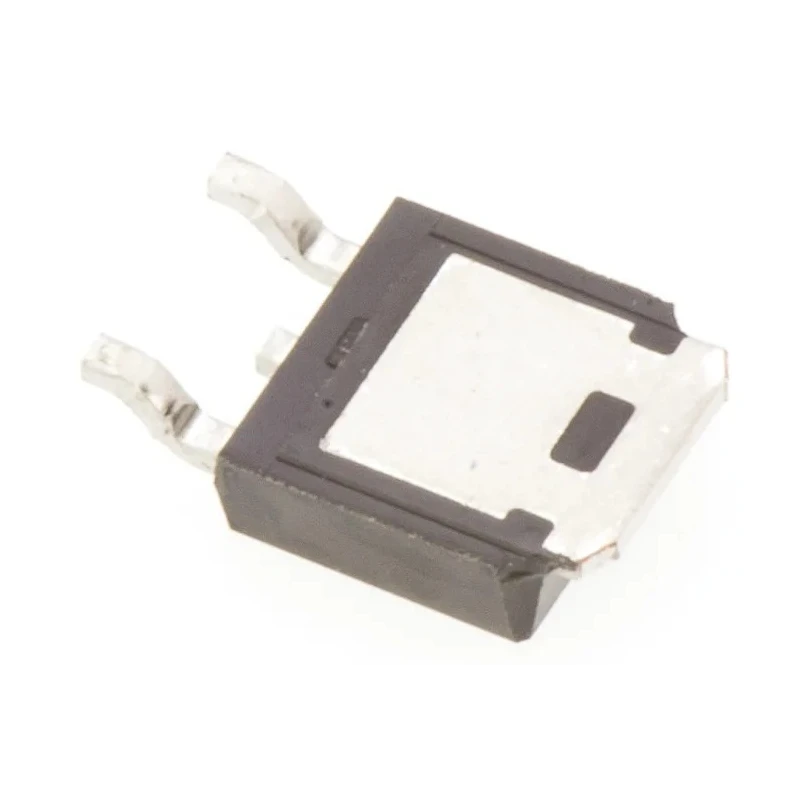

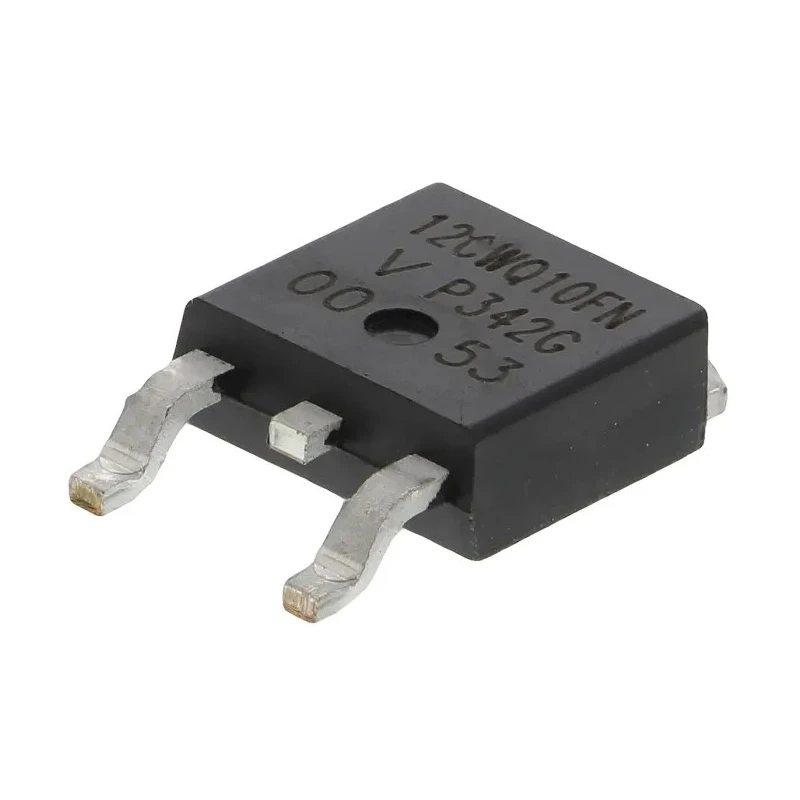

Vishay High-Performance 100 V 12 A Schottky Diode 3-Pin DPAK VS-12CWQ10FNPBF
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 6.73mm |
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-12CWQ10FNPBF |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | VS-12CWQ10FN |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 330A |
| Maximum Forward Voltage Vf | 650mV |
Key Features
- Features a compact 3-pin DPAK surface mount package for efficient PCB integration.
- Maximum continuous forward current of 12 amps ensures high current handling capability.
- Peak reverse repetitive voltage rating of 100 volts provides reliable voltage tolerance.
- Fast switching with very low forward voltage drop of 650 mV reduces energy dissipation.
- Operates reliably in a temperature range from -55°C to 150°C.
- Peak non-repetitive forward surge current of 330 amps allows for transient overload handling.
- Common cathode diode configuration suitable for diverse rectifier circuits.
- Ideal for use in power management, industrial electronics, and automotive applications requiring fast switching.
Product Description
Vishay VS-12CWQ10FNPBF is a high-performance Schottky diode designed for efficient power management in electronic and industrial applications. Featuring a rugged 3-pin DPAK surface mount package, this diode offers a maximum continuous forward current rating of 12 amperes and a peak reverse repetitive voltage of 100 volts, providing robust electrical performance under demanding conditions.
The diode exhibits a very fast switching speed combined with a low forward voltage drop of just 650 millivolts, significantly reducing power loss and improving energy efficiency in circuits. It supports operation across a broad temperature range from -55°C to 150°C, making it suitable for harsh environments and automotive uses.
With a peak non-repetitive forward surge current rating of 330 amps, the VS-12CWQ10FNPBF can withstand transient current spikes effectively, enhancing reliability. The common cathode configuration allows for versatile applications including rectification and power supply circuits in industrial, manufacturing, and commercial electronics.
The compact physical dimensions (6.73 mm length, 6.22 mm width, and 2.39 mm height) enable dense PCB mounting for space-saving designs. The device is compliant with industry standards though it does not carry specific automotive certifications, underscoring its general-purpose utility.
Compact 3-pin DPAK package for surface mounting and space efficiency. High continuous forward current rating of 12 A for demanding applications. Low forward voltage of 650 mV minimizes power dissipation. Wide operating temperature range from -55°C to 150°C supports robust environments.
Peak surge current capacity of 330 A provides transient overload protection. Common cathode configuration fits diverse rectifier designs. Suitable for power electronics, industrial controls, and automotive circuits.
This Vishay Schottky diode is a reliable component choice for engineers designing power-efficient, fast-switching rectifier circuits and converters. Explore other Vishay semiconductor components and industrial electronic devices on EnvMart to fulfill your technical needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the Vishay VS-12CWQ10FNPBF is 12 amperes.
This model has a peak reverse repetitive voltage rating of 100 volts.
The forward voltage drop of the diode is 650 millivolts.
It operates reliably in a temperature range from -55°C to 150°C.
The peak non-repetitive forward surge current rating is 330 amps.
The diode comes in a TO-252 package type, which is a compact 3-pin DPAK surface mount package.
The dimensions are 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height.
It features a common cathode diode configuration, making it suitable for various rectifier circuits.
This diode is suitable for power management, industrial electronics, and automotive applications requiring fast switching.
The peak reverse current is specified at 1 milliampere.
This model is designed for surface mounting, allowing for efficient PCB integration.
The diode is part of the VS-12CWQ10FN series.
