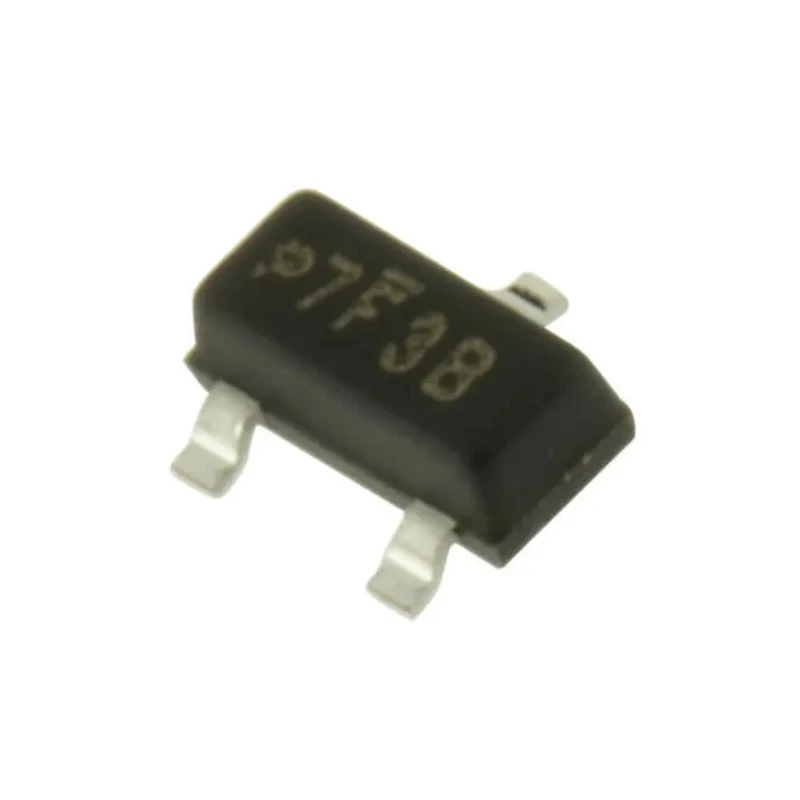

Vishay Schottky Diode 30 V 200 mA Surface Mount 3-Pin SOT-23 BAT54C-G3-08

Vishay BAT54C-G3-08 is a Schottky diode designed as a surface mount device in a 3-pin SOT-23 package, engineered for fast switching and low forward voltage drop applications. It is suitable for use in electronic circuits requiring efficient rectification and protection with minimal losses.

Featuring a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 30 V, this component supports a wide range of low power applications including power supplies, voltage clamping, and high-frequency rectification.

The diode's forward voltage is limited to a maximum of 800 mV, reducing power dissipation and improving system efficiency. Its common cathode configuration simplifies circuit topology for multi-diode packages.

With low peak reverse current of 2 μA and a wide operating temperature from -55°C to 125°C, the BAT54C-G3-08 offers reliable performance even under demanding conditions. It complies with RoHS directives and meets the automotive AEC-Q101 standard, making it suitable for automotive and industrial electronics.

Its compact size of 3.1 mm length, 1.15 mm width, and 1.15 mm height allows integration into highly compact PCBs, saving board space. Additionally, the diode supports a peak non-repetitive forward surge current of 600 mA, enabling it to tolerate transient overloads effectively.

The 5 ns reverse recovery time ensures rapid switching, which is essential in modern high-speed electronic and communication equipment, reducing switching losses and electromagnetic interference.

The diode has a maximum forward voltage drop of 800 mV to ensure low power losses. Its common cathode diode configuration supports efficient circuit design and operation. Peak reverse current is exceptionally low at 2 μA, minimizing leakage current.

Operating temperature range is broad from -55°C up to 125°C to withstand various environmental conditions. The diode meets RoHS compliance and automotive standard AEC-Q101 for reliability and quality assurance. Its compact dimensions measure approximately 3.1 mm length, 1.15 mm width, and 1.15 mm height for space-efficient PCB layouts.

Peak non-repetitive forward surge current is rated at 600 mA to handle transient conditions safely. Reverse recovery time of 5 ns allows for very fast switching, ideal for power management and signal processing.

This Schottky diode is widely used in industrial, automotive, telecommunications, laboratory electronics, and consumer device circuits requiring fast switching, low voltage drop, and high efficiency. It is an ideal choice for voltage clamping, power rectification, and protection circuits.
