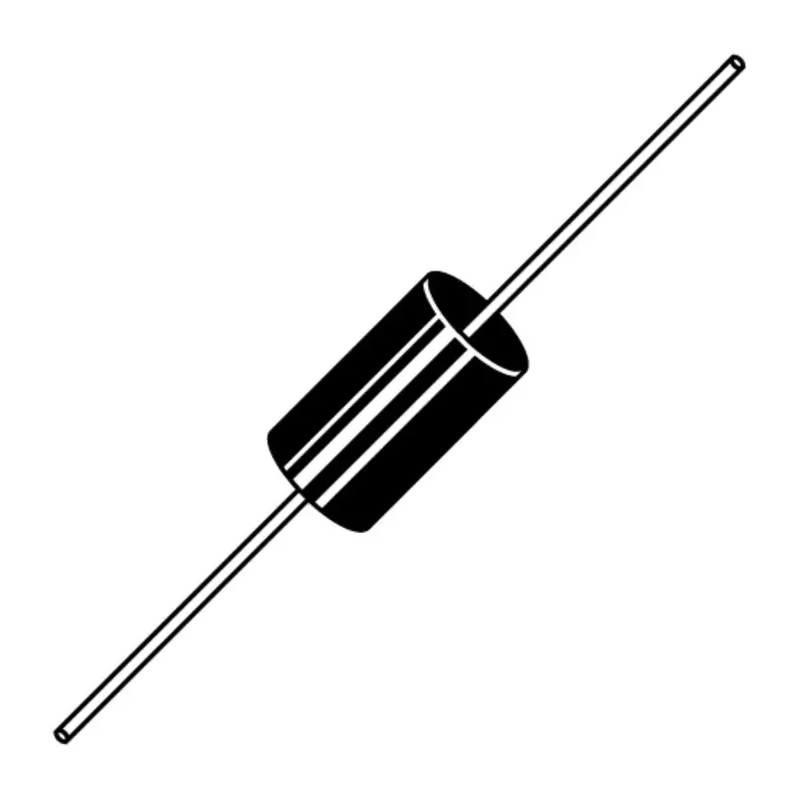

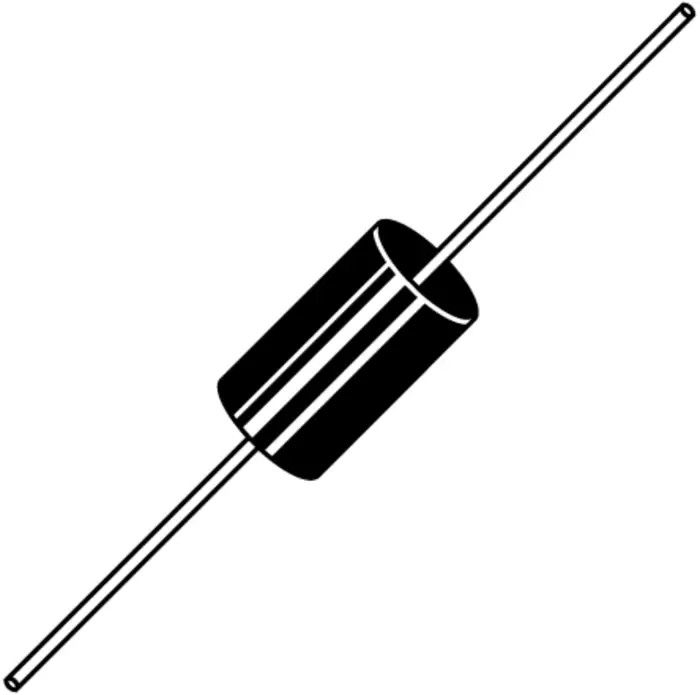

DiodesZetex Schottky Diode 60 V 5 A 2-Pin DO-201AD Through Hole SB560-T

DiodesZetex SB560-T is a Schottky diode designed for high efficiency and reliability in power rectification applications. This diode is built in a 2-pin DO-201AD through-hole package, making it suitable for printed circuit boards requiring robust diode solutions.

The device supports a maximum continuous forward current of 5 amperes, making it ideal for moderate current applications. Its peak reverse repetitive voltage rating is 60 volts, which allows it to operate safely in a range of electronic circuits.

Featuring a low maximum forward voltage of 670 millivolts, the SB560-T diode reduces power losses and heat dissipation, improving overall circuit efficiency. It can withstand a peak non-repetitive forward surge current of 150 amperes, providing robustness against transient currents.

This diode performs reliably in extreme environmental conditions, with an operational temperature range from -65 degrees Celsius to 150 degrees Celsius. Its physical dimensions include a length of 9.5 mm, diameter of 5.3 mm, and width of 4.8 mm.

Manufactured with high standards, including FBI certification, it is an excellent choice for applications in power supplies, automotive electronics, and general semiconductor use where Schottky barrier diodes are preferred for their fast switching and low forward voltage characteristics.

Maximum continuous forward current of 5 amperes ensures stable performance under heavy load. Peak reverse repetitive voltage rating of 60 volts supports moderate voltage applications. Low forward voltage drop of 670 mV enhances power efficiency.

Constructed in a DO-201AD through-hole package offering easy PCB mounting. Operates reliably across a wide temperature range from -65°C to 150°C. Features a 2-pin single diode configuration suitable for discrete semiconductor applications.

Peak non-repetitive forward surge current rated at 150 amperes for transient protection. Compact physical dimensions with 9.5 mm length, 5.3 mm diameter, and 4.8 mm width. Meets FBI standards ensuring quality and reliability.

Ideal for use in power supplies, automotive electronics, and general purpose rectification.

This Schottky diode perfectly fits multiple industrial and commercial electronics applications, including semiconductor systems, power converters, automotive power electronics, and high-efficiency rectification tasks. DiodesZetex products are renowned for quality and innovation, making SB560-T a dependable choice for engineers and designers.
