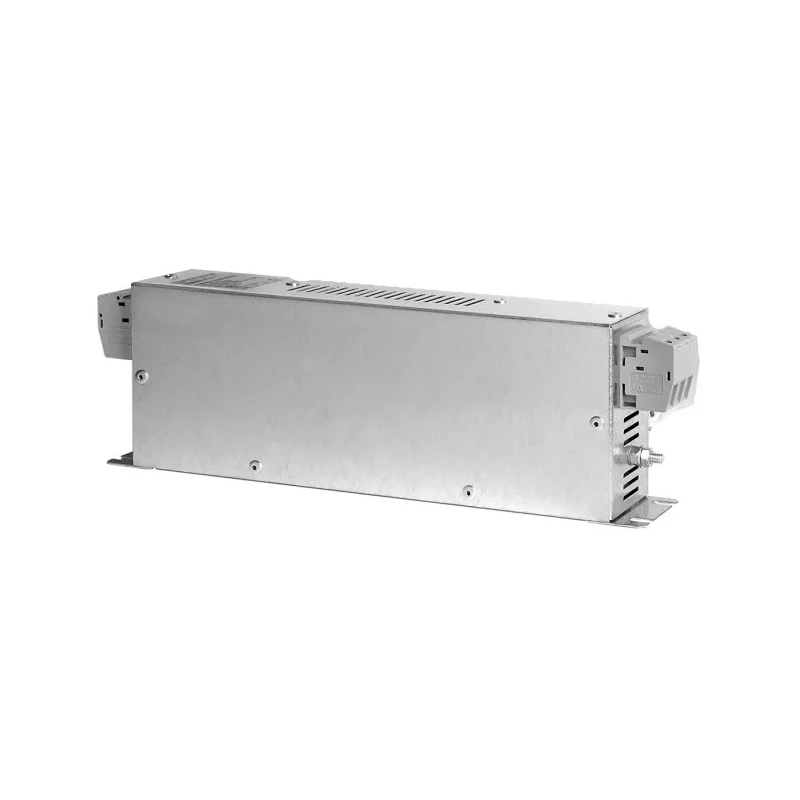

TE Connectivity Corcom BCF 75A 277V AC 50Hz 60Hz Flange EMI Filter Threaded Bolt 3 Phase 1609989-6

TE Connectivity 1609989-6 Corcom BCF Flange EMI Filter is a high-quality passive component designed for suppressing electromagnetic interference in three-phase electrical systems. Rated for a maximum current of 75 amperes and voltage up to 277V AC, this filter operates effectively across 50Hz and 60Hz frequencies, making it suitable for a wide range of industrial power applications.

Its compact book-form construction combines lightweight design with durable metal housing and flange mounting. The use of threaded bolt terminations with insulated touch-safe terminals enhances safety and simplifies installation. The filter is engineered to handle ambient temperatures between -10°C and 50°C, ensuring stable operation under varying environmental conditions.

This Corcom BCF series filter incorporates two filter stages to provide superior attenuation of conducted EMI and RFI signals below 100 kHz. The low leakage current of 30 mA further supports safe circuit operation without excessive energy losses.

Applications include three-phase inverters, variable speed motor drives, elevators, escalators, machine tools, and process automation systems. The product meets the requirements of UL and CSA approvals, illustrating compliance with stringent safety and performance standards.

Designed specifically for EMI/RFI noise filtering in industrial and commercial equipment. Features flange mounting with threaded bolt termination for secure installation. Supports a maximum operating temperature range of -10°C to 50°C.

Compact book-form design providing effective common and differential mode filtering below 100 kHz. Compliance with UL and CSA safety standards ensures reliable operation. Ideal for variable speed motor drives, inverters, elevators, escalators, and automation equipment.

Contains 2 filter stages for enhanced noise reduction performance. Low leakage current of 30mA maintains safety and efficiency. Dimensions: 270mm length, 135mm height, and 80mm depth for easy integration. Robust construction with insulated safety terminals providing touch-safe operation.

This filter is essential for industrial and commercial electrical systems that require reliable suppression of electromagnetic interference to ensure equipment performance and regulatory compliance. Browse more offerings from TE Connectivity in EMI filters and power line filters on EnvMart.
