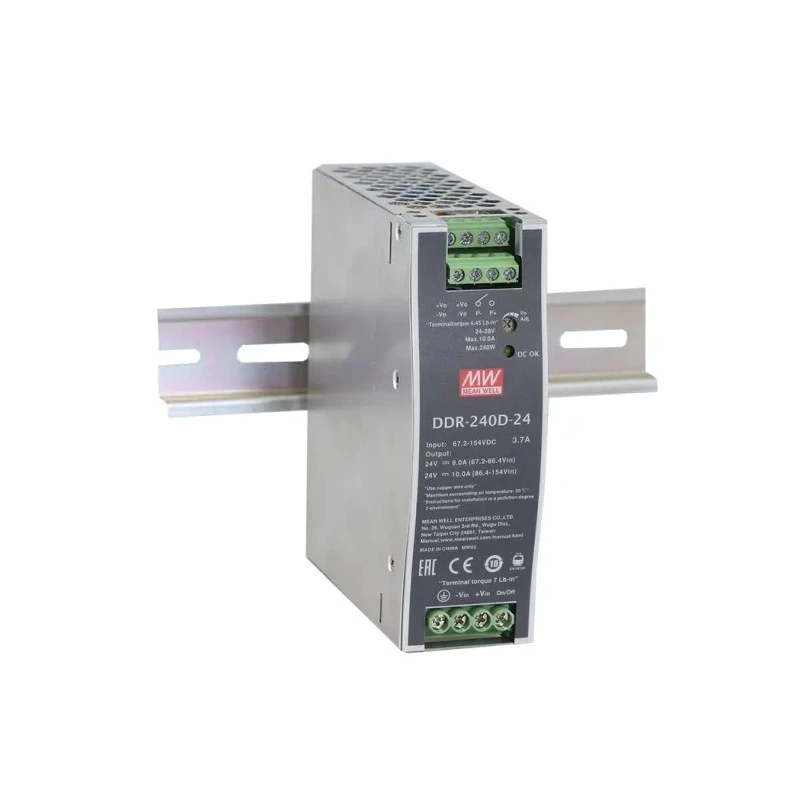

MEAN WELL 24V DC/DC Converter, 10 A Output, 67.2V Input, 240 W Power, DIN Rail Mount DDR-240D-24

MEAN WELL DDR-240D-24 is a high-performance DC/DC converter designed for industrial and railway control, security systems, communication equipment, and other demanding applications. It delivers a regulated 24V DC output at 10A, with a wide input voltage range centered at 67.2V, making it adaptable to various power sources.

The compact DIN rail mount design (125.2mm width, 113.5mm depth, 40mm length) allows seamless installation in panel boards and enclosures. Its ultra-slim width of 40mm aids in saving space during integration.

Operating across a wide temperature range from -40°C to 70°C and featuring fanless cooling design, the unit ensures stable performance in environments with extreme temperatures and dust.

Equipped with 4kV isolation voltage, the DDR-240D-24 guarantees electrical safety and noise immunity. Comprehensive protective functions including short circuit, overload, over voltage, over temperature, input reverse polarity, and under voltage safeguard the device and connected systems.

This model offers adjustable DC output voltage and supports 150% peak load capability, with current sharing up to 960W in multi-unit parallel operation. It is ideal for industrial automation, railway electronics, security control, communication systems, and other fields requiring reliable DC/DC conversion.

This converter supports DIN rail mounting for easy installation and integration. It features high efficiency of 92% for energy-saving operation. Operates in wide temperature range from -40°C to 70°C suitable for harsh industrial environments.

Provides 4kV DC isolation to ensure safe electrical performance. Includes multiple protection features such as short circuit, overload, over voltage, over temperature, input reverse polarity, and under voltage protection.

Fanless design supports cooling by free air convection, enhancing reliability and maintenance ease. Adjustable DC output voltage and 150% peak load capacity allow flexible usage. Complies with numerous international standards including EN61000 series, CE, IEC61373, and EN50155.

Ideal for industrial, railway, communication, and security control applications. Browse more high-quality DC/DC converters and power supplies at EnvMart.
