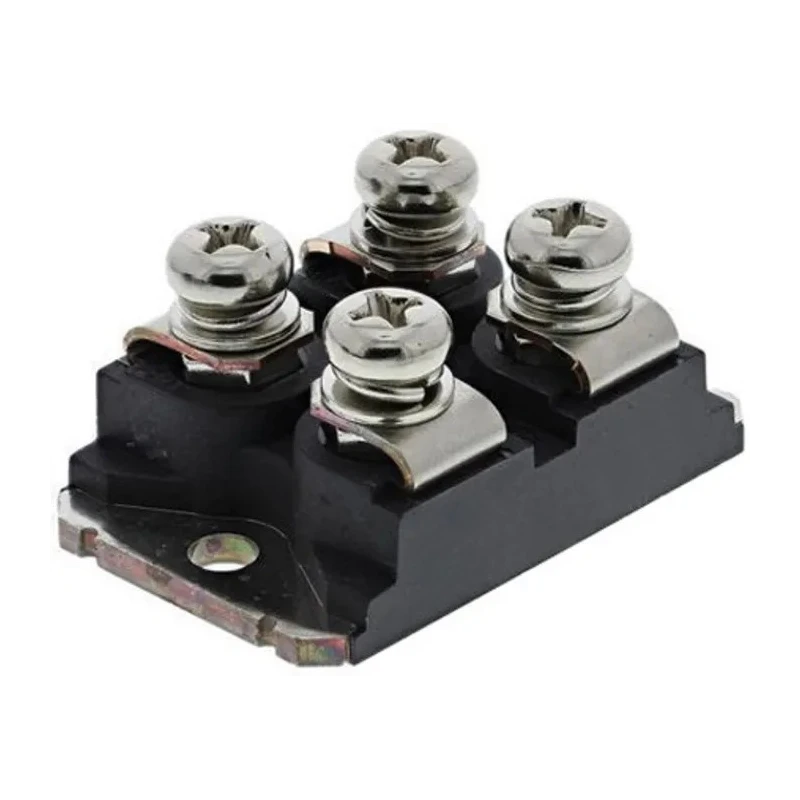

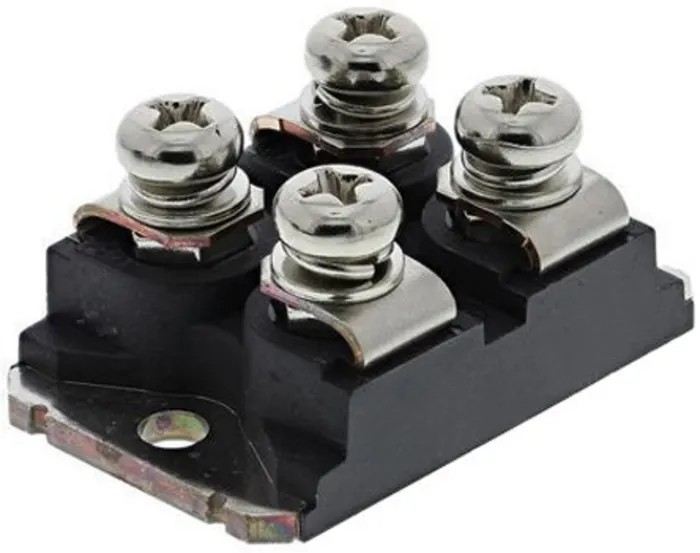

Vishay 600 V 141 A Fast Recovery Diode 4-Pin SOT-227 VS-UFB230FA60

Vishay VS-UFB230FA60 is a high-performance fast recovery diode designed for demanding electronic and industrial applications. This 600 V rated diode supports a maximum continuous forward current of 141 A and is housed in a 4-pin SOT-227 package suitable for panel mounting. It features isolated diode configuration ensuring reliable electrical isolation in circuits.

The diode offers a fast recovery time of 182 ns, enabling efficient switching and rectification in power supplies, inverters, and motor drives. Its maximum forward voltage drop of 2.05 V helps optimize overall circuit efficiency while peak reverse current is limited to 100 μA to reduce power losses during off states.

Engineered to operate within a wide temperature range from -55°C to 175°C, this diode maintains performance stability under harsh thermal conditions typical in industrial, manufacturing, and laboratory environments. The peak non-repetitive forward surge current handling of 1.4 kA accommodates transient high-current demands securely.

Dimensionally, the diode measures 38.3 mm in length, 25.7 mm in width, and 12.3 mm in height/diameter, enabling versatile installation in various electronic assemblies. Produced in the Philippines, it adheres to rigorous manufacturing standards ensuring long-term reliability.

Application areas include power electronics, industrial power supplies, switch mode power supplies, and other semiconductor-based rectification solutions. The fast recovery capability makes it ideal for high-frequency switching circuits in automotive, HVAC, manufacturing, and commercial electrical systems.

This diode is designed for panel mounting with a 4-pin SOT-227 package. It supports a maximum continuous forward current of 141 amperes. The peak reverse repetitive voltage rating is 600 volts for robust protection. The component features a fast recovery time of 182 nanoseconds, suitable for high-speed switching.

The device operates reliably between -55°C and 175°C temperature range. The maximum forward voltage drop is 2.05 volts, optimizing efficiency. Peak reverse current is minimized at 100 microamperes to reduce leakage. The diode has a peak non-repetitive forward surge current rating of 1.4 kiloamperes.

Physical dimensions include a length of 38.3 mm, width 25.7 mm, and height/diameter of 12.3 mm. Manufactured in the Philippines, ensuring quality production standards. Explore more Vishay Schottky Diodes & Rectifiers for your electronics design requirements at EnvMart.
