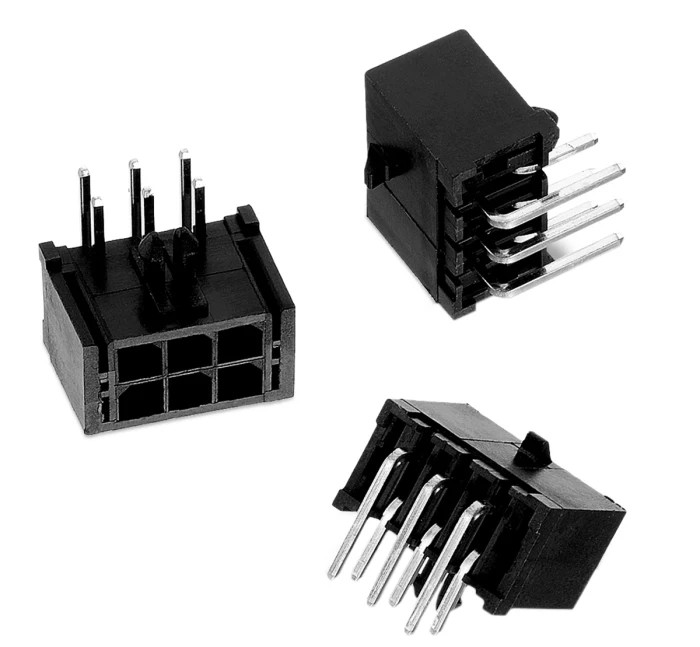

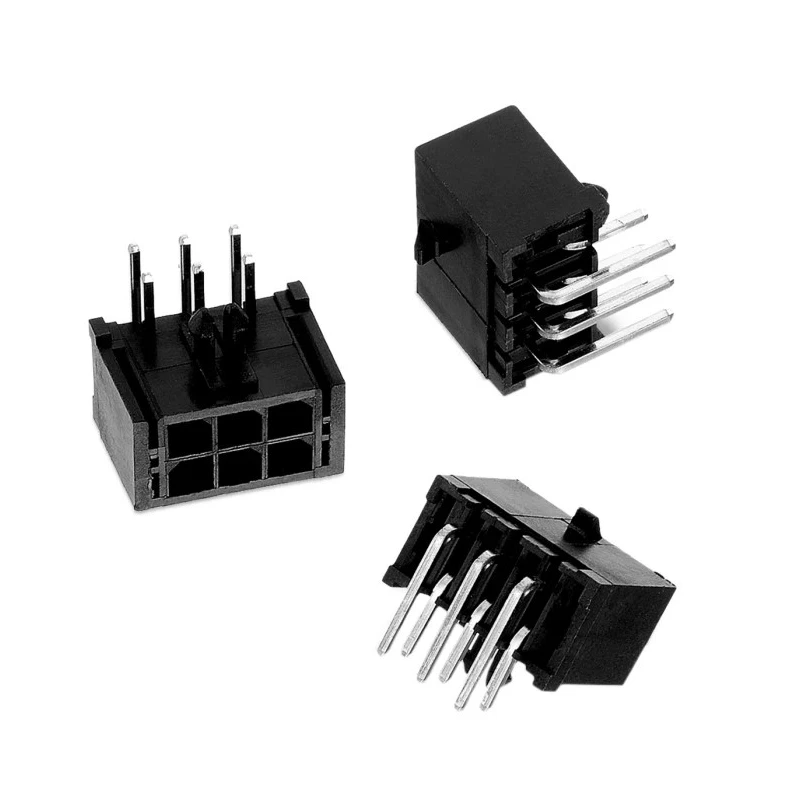

Wurth Elektronik WR-MPC3 Series Right Angle Through Hole PCB Header, 20 Contacts, 3 mm Pitch, 2 Row, Shrouded MPC3

Wurth Elektronik MPC3 is a right angle, through-hole male PCB header connector series designed to ensure robust wire-to-board connections in electronic assemblies. Featuring 20 contacts arranged in two rows with a 3.0 mm pitch, this series is engineered for power connectivity applications up to 5A per contact and 250V maximum voltage.

The header housing is constructed from a durable liquid crystal polymer with UL94-V0 flammability rating, offering high reliability and safety in industrial and electronic manufacturing environments. Tin-plated copper alloy contacts provide excellent conductivity and resistance against corrosion.

Its right angle orientation and through-hole mounting enable compact PCB layout designs while maintaining secure mechanical engagement aided by integrated board locks. The shrouded interface design provides effective protection against physical damage and short circuits.

Operating temperature of -40°C to 105°C makes it suitable for a wide range of industrial, laboratory, HVAC, and manufacturing equipment. The connector mates with compatible WR-MPC3 female dual row receptacle housings for flexible system configuration.

This PCB header has 20 tin-plated copper alloy contacts designed for solder termination. The right-angle orientation allows compact board mounting with secure through-hole installation. Housing is made of high-performance liquid crystal polymer material offering UL94-V0 flame resistance.

Rated current is 5A per pin with a maximum operating voltage of 250V suitable for power applications. Operating temperature ranges from -40°C to 105°C for versatile use in harsh environments. Connector includes board locks for stable mechanical retention.

The dual-row configuration has a 3 mm row pitch and a pin tail length of 3.2 mm. Designed for mating with WR-MPC3 female dual row receptacles for system integration.

This connector series is essential for applications in electronics manufacturing, power distribution boards, industrial automation, and embedded systems where reliability and secure electrical connections are mandatory. Explore more connectors and PCB header solutions at EnvMart for your specific design needs.
