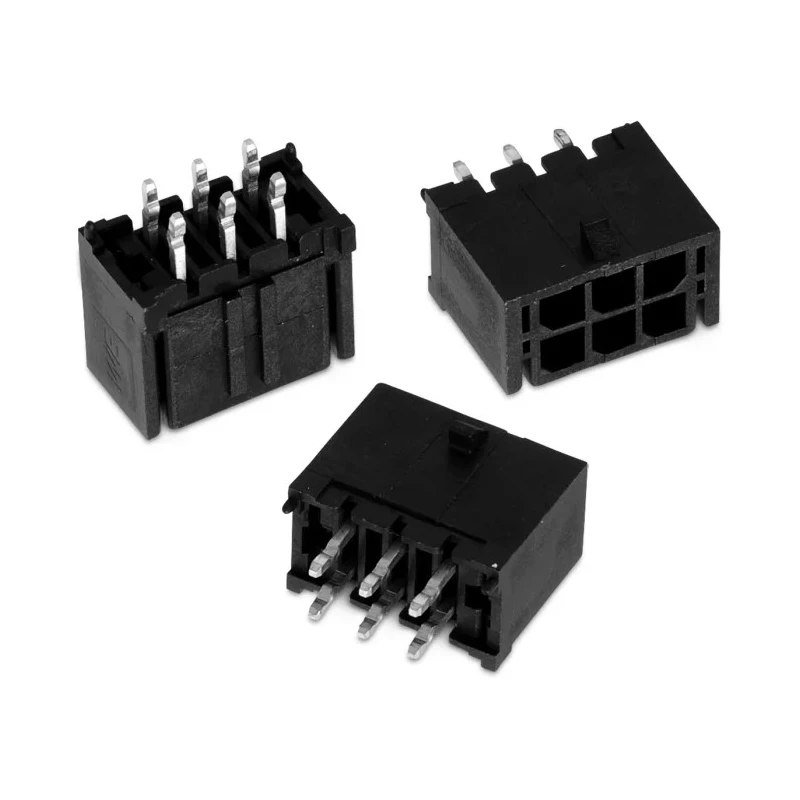

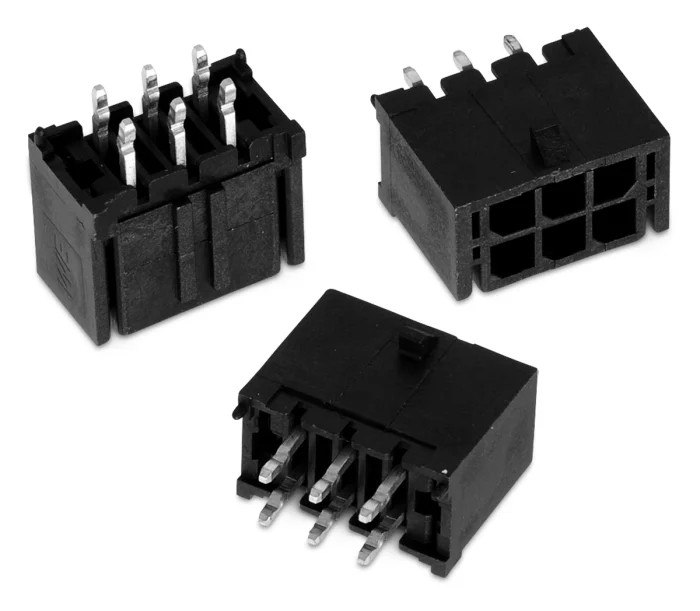

Wurth Elektronik WR-MPC3 Series Straight Through Hole PCB Header 6 Contacts 3 mm Pitch 2 Row Shrouded MPC3

Wurth Elektronik MPC3 is a series of straight through hole PCB headers designed for industrial and electronic applications requiring reliable wire-to-board connections. The 6-contact, 3 mm pitch, and 2-row configuration provides a compact and efficient footprint suitable for power connectors on printed circuit boards.

The connectors feature a black, UL94-V0 rated, liquid crystal polymer housing for enhanced flame retardance and mechanical stability. Copper alloy contacts are tin plated to resist corrosion and ensure consistent conductivity, supporting currents up to 5 amperes and operating voltages of 250 volts.

With an operating temperature range from -40°C to 105°C, these headers are suitable for a wide range of environmental conditions found in industrial, commercial, and manufacturing settings. The design includes kinked pins and board guides for enhanced mechanical retention and insertion reliability during assembly processes.

The male connectors include a 3.2 mm tail pin length for effective solder termination on through hole mount PCBs. The WR-MPC3 series mates with matching 3.0 mm dual row female receptacle housings, supporting modular and scalable designs in electronic equipment.

Typical uses include power distribution modules, control panels, and electronic interface boards across industrial automation, HVAC systems, and manufacturing equipment. The product's shrouded design ensures safe and secure mate connections, minimizing accidental disconnections or short circuits.

The connector system supports through hole mounting for reliable solder connection. Constructed with a liquid crystal polymer housing and tin-plated copper alloy contacts for durability. Rated for 5A current and 250V voltage with operation from -40°C to 105°C.

Includes kinked pins and board guides to ensure proper fit and durability. Male contact gender with a 3.2 mm tail pin length facilitates secure electrical connection. UL94-V0 black housing ensures flame retardant properties for safety.

Compatible with WR-MPC3 3.0 mm dual row female receptacle housings. Explore more products in the PCB Headers category at EnvMart for industrial and electronic components that meet your design and manufacturing requirements.
