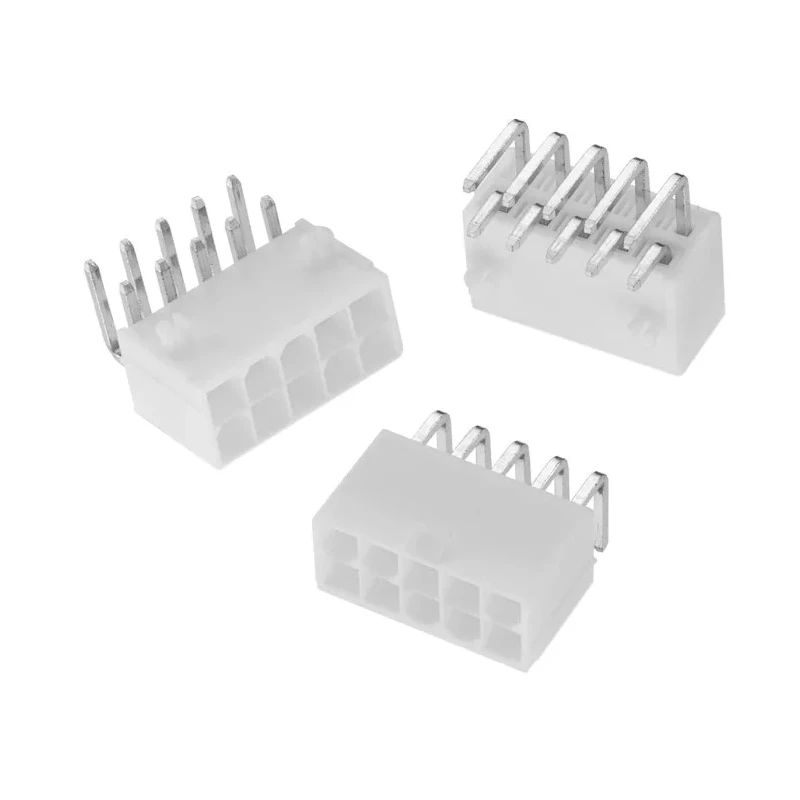

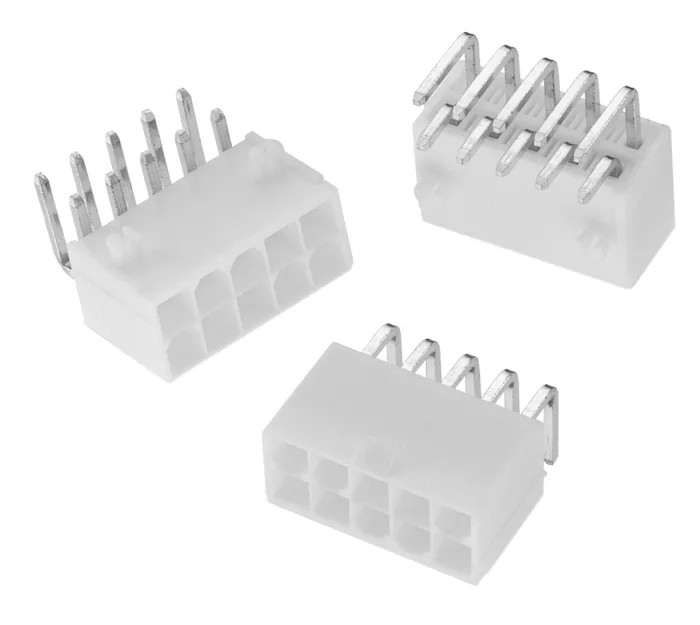

Wurth Elektronik WR-MPC4 Series Right Angle Through Hole PCB Header, 8 Contacts, 4.2 mm Pitch, 2 Row, Shrouded MPC4

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WR-MPC4 Series Right Angle Through Hole PCB Header, 8 Contacts, 4.2 mm Pitch, 2 Row, Shrouded MPC4

Name: Wurth Elektronik WR-MPC4 Series Right Angle Through Hole PCB Header, 8 Contacts, 4.2 mm Pitch, 2 Row, Shrouded MPC4
Brand: Wurth Elektronik
SKU: 379303
Price: 1.3 USD
Availability: InStock



Category PCB Headers Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Wurth Elektronik
Orientation	Right Angle
Current	69A
Model	MPC4
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Nickel
Series	WR-MPC4
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	4.2mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.5mm

Key Features

The shrouded header is designed for wire-to-board connections ensuring secure mating.
Constructed with polyamide housing for durable insulation and UL94-V0 flame resistance.
Contacts are tin plated over nickel with a tail pin length of 3.5 mm for efficient solder termination.
Rated for 69 A current and 600 V voltage with operating temperature range from -40°C to 105°C.
Right angle orientation allows versatile PCB mounting options.
Suitable for industrial and electronic device applications requiring robust and compact connectors.
Board lock feature enhances mechanical stability and connector retention on PCBs.
Compliant with IPC standards though no specific certifications are listed.

Product Description

Wurth Elektronik MPC4 series Right Angle Through Hole PCB Header is a high-quality connector designed for demanding electronic power applications. This 8-contact, 2-row male header features a 4.2 mm pitch and shrouded polyamide housing offering UL94-V0 flame retardancy for enhanced safety.

The contact system includes tin plating over nickel with a 3.5 mm tail pin length providing reliable solder joints and corrosion resistance.

The header supports a maximum current of 69 A and voltage rating of 600 V, functional in temperatures ranging from -40°C up to +105°C, making it ideal for industrial, manufacturing, and electronic assembly use cases.

The right angle orientation combined with wire-to-board connector system and board locks allows robust mounting and secure connections on printed circuit boards. This connector is suited for power electronics, industrial control units, and equipment requiring dependable throughput and long-term reliability in harsh environments.

The shrouded design improves connector safety and prevents incorrect mating. Polyamide insulating housing ensures electrical isolation and mechanical durability. Tin over nickel plated contacts deliver excellent conductivity and corrosion resistance.

Through hole mount type provides strong mechanical attachment to PCB substrates. Wide operating temperature range enables use in various industrial conditions. Reliable wire-to-board connection for power and signal lines.

Compact 4.2 mm pitch allows high density PCB layouts. This Wurth Elektronik product complements a variety of PCB header connectors for professional electronics manufacturing and repair. Browse the Electronics & Electricals category at EnvMart for more high-quality PCB connectors, headers, and electronic components by Wurth Elektronik and other trusted brands.
