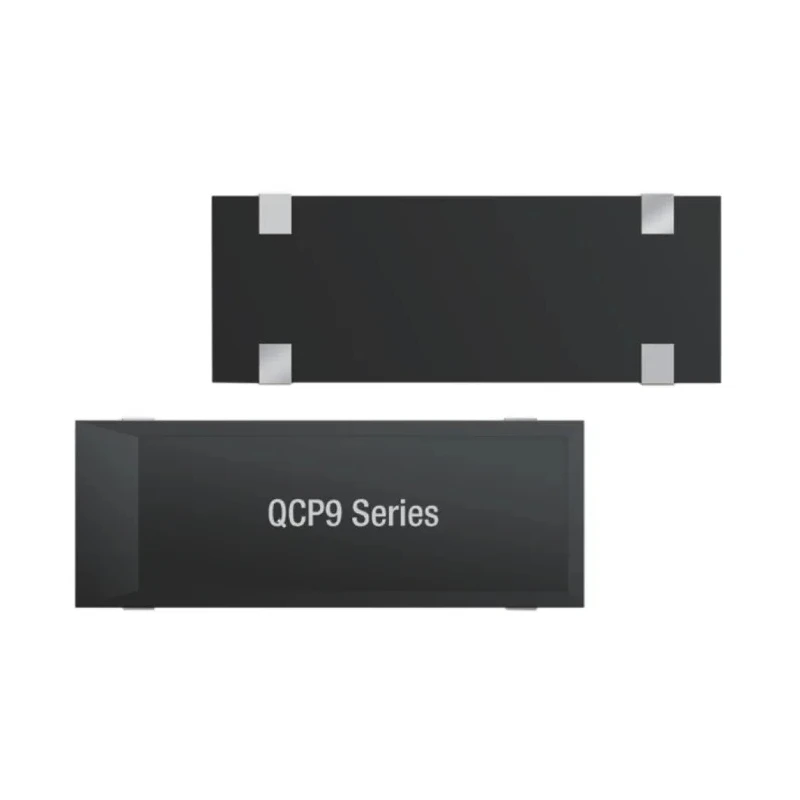

QANTEK 9.8304 MHz Crystal Unit ±30 ppm Surface Mount 4-Pin 3.7 mm Height 12.5 mm Length 4.6 mm Width QCP99.83040F18B35R

Free Delivery in India | Lowest Global Shipping Charges

QANTEK 9.8304 MHz Crystal Unit ±30 ppm Surface Mount 4-Pin 3.7 mm Height 12.5 mm Length 4.6 mm Width QCP99.83040F18B35R

Name: QANTEK 9.8304 MHz Crystal Unit ±30 ppm Surface Mount 4-Pin 3.7 mm Height 12.5 mm Length 4.6 mm Width QCP99.83040F18B35R
Brand: Qantek
SKU: 378336
Price: 1.52 USD
Availability: InStock



Category Crystal Unit Brand Qantek Condition New

Specifications

Country of Origin	China
Brand	QANTEK
Height	3.7mm
Length	12.5mm
Model	QCP99.83040F18B35R
Packaging	Tape & Reel
Width	4.6mm
Mount Type	Surface
Series	QCP9
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	9.8304MHz
Load Capacitance	18pF
Series Resistance	100Ω
AKER 9.83MHz Crystal ±30ppm HC-49-US SMD 4-Pin 13 x 4.7 x 5.2mmBrand	AKER

Key Features

Operates reliably between -40°C to 85°C temperature range.
Compact plastic SMT package sized 12.5 mm length, 4.6 mm width, and 3.7 mm height.
Load capacitance is 18 pF ensuring stable oscillation characteristics.
Series resistance of 100 ohms supports efficient performance in various circuits.
Complies with RoHS standards for environmental safety.
Supplied in tape and reel for streamlined automated assembly processes.
Designed for commercial and industrial applications requiring stable timing reference.
Surface mount technology facilitates high-density PCB assembly.

Product Description

QANTEK QCP99.83040F18B35R is a 9.8304 MHz crystal unit designed for precise frequency control with a tolerance of ±30 ppm. This device is presented in a surface mount 4-pin plastic package measuring 12.5 mm in length, 4.6 mm in width, and 3.7 mm in height, suitable for compact electronic assemblies.

The crystal unit supports an operating temperature range from -40°C to +85°C, enabling use in both commercial and industrial environments. Its 18 pF load capacitance and 100 ohm series resistance ensure reliable and efficient oscillations ideal for timing and frequency reference applications.

Compliant with RoHS directives, the QCP9 series crystal oscillators offer excellent environmental resistance and reflow soldering capability, supporting advanced manufacturing processes. Supplied in tape and reel packaging, the device is optimized for automated PCB assembly systems.

Typical applications include industrial equipment, communication systems, and signal processing devices where stable frequency output is critical. The compact SMT form factor aids in modern electronic device miniaturization requirements.

Operates reliably between -40°C and 85°C temperature range. Compact surface mount package measuring 12.5 mm x 4.6 mm x 3.7 mm. Load capacitance of 18 pF contributing to stable frequency performance. Series resistance of 100 ohms minimizes signal loss.

RoHS compliant ensuring environmental friendliness. Tape and reel packaging supports manufacturing automation. Suitable for commercial and industrial frequency control applications. Provides excellent environmental and heat resistance.

4-pin SMT package ideal for high-density PCB layouts. Manufactured in China under strict quality standards. Explore further electronic components within the Crystal Unit category on EnvMart for compatible and complementary products.
