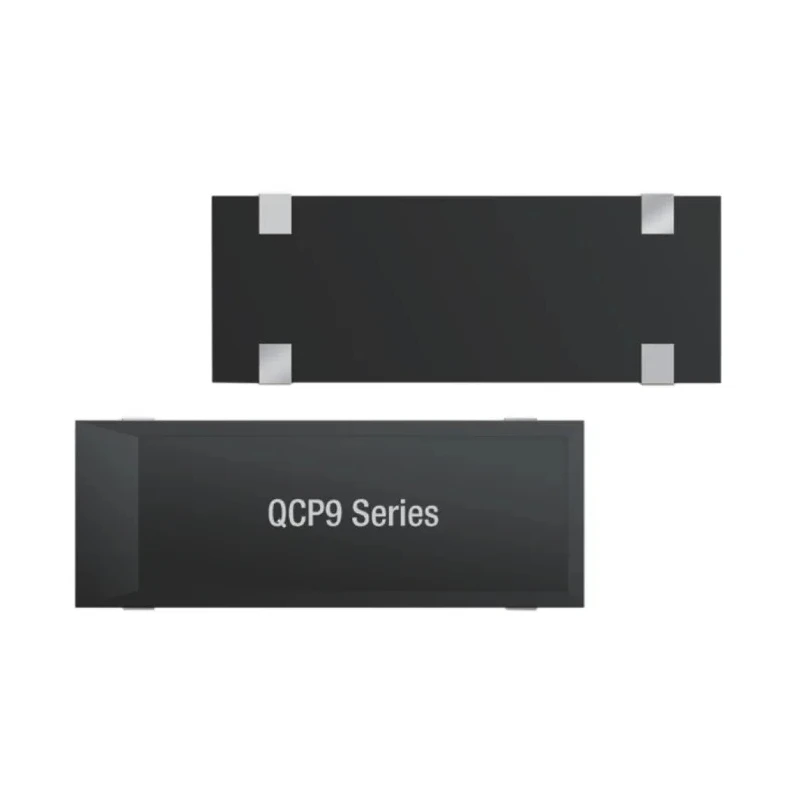

QANTEK 7.3728 MHz Crystal Unit ±30 ppm Surface Mount 4-Pin 3.7 mm Height 12.5 mm Length 4.6 mm Width QCP97.37280F18B35R

Free Delivery in India | Lowest Global Shipping Charges

QANTEK 7.3728 MHz Crystal Unit ±30 ppm Surface Mount 4-Pin 3.7 mm Height 12.5 mm Length 4.6 mm Width QCP97.37280F18B35R

Name: QANTEK 7.3728 MHz Crystal Unit ±30 ppm Surface Mount 4-Pin 3.7 mm Height 12.5 mm Length 4.6 mm Width QCP97.37280F18B35R
Brand: Qantek
SKU: 378341
Price: 1.39 USD
Availability: InStock



Category Crystal Unit Brand Qantek Condition New

Specifications

Country of Origin	China
Brand	QANTEK
Height	3.7mm
Length	12.5mm
Model	QCP97.37280F18B35R
Packaging	Tape & Reel
Width	4.6mm
Mount Type	Surface
Series	QCP9
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	7.3728MHz
Load Capacitance	18pF
Series Resistance	120Ω
Fox Electronics 7.373MHz Crystal ±50ppm SMD 4-Pin 12.5 x 4.6 x 3.7mmBrand	Fox Electronics

Key Features

Standard frequency of 7.3728 MHz delivers precise oscillation.
Surface mount type ensures easy PCB assembly with 4 pins.
Compact size with 12.5 mm length, 4.6 mm width, and 3.7 mm height.
Operates reliably between -40°C and 85°C temperature range.
Load capacitance specified at 18 pF for optimal circuit integration.
Series resistance of 120 Ω facilitating electrical characteristics.
RoHS compliant, supporting environmentally responsible manufacturing.
Packaged on Tape & Reel for efficient automated insertion.

Product Description

QANTEK QCP97.37280F18B35R is a 7.3728 MHz Crystal Unit featuring a ±30 ppm frequency tolerance and surface mount 4-pin configuration designed for high precision and reliability in commercial and industrial electronics.

This crystal oscillator boasts a compact and robust plastic SMT package measuring 12.5 mm by 4.6 mm by 3.7 mm. It supports a load capacitance of 18 pF and a series resistance of 120 Ω, ensuring stable oscillation and minimal electrical losses. The unit operates reliably within a wide industrial temperature range from -40°C to +85°C, providing durability under harsh environmental conditions.

Its surface mount design allows for easy integration onto printed circuit boards using standard automated assembly processes. Compliance with RoHS standards guarantees environmentally friendly manufacturing processes and materials.

Typical applications include timekeeping and frequency stabilization in commercial, industrial, and manufacturing electronic assemblies, where precision and stability are critical.

Standard frequency of 7.3728 MHz delivers precise oscillation. Surface mount type ensures easy PCB assembly with 4 pins. Compact size with 12.5 mm length, 4.6 mm width, and 3.7 mm height. Operates reliably between -40°C and 85°C temperature range.

Frequency tolerance of ±30 ppm and stability of ±50 ppm ensure accurate performance. Load capacitance specified at 18 pF for optimal circuit integration. Series resistance of 120 Ω facilitating electrical characteristics.

RoHS compliant, supporting environmentally responsible manufacturing. Packaged on Tape & Reel for efficient automated insertion. Suitable for commercial and industrial electronic oscillator applications.

For engineers and procurement teams seeking reliable crystal oscillators, the QCP97.37280F18B35R offers high performance and proven durability. Discover more products in the Crystal Unit category on EnvMart for your electronic design needs.
