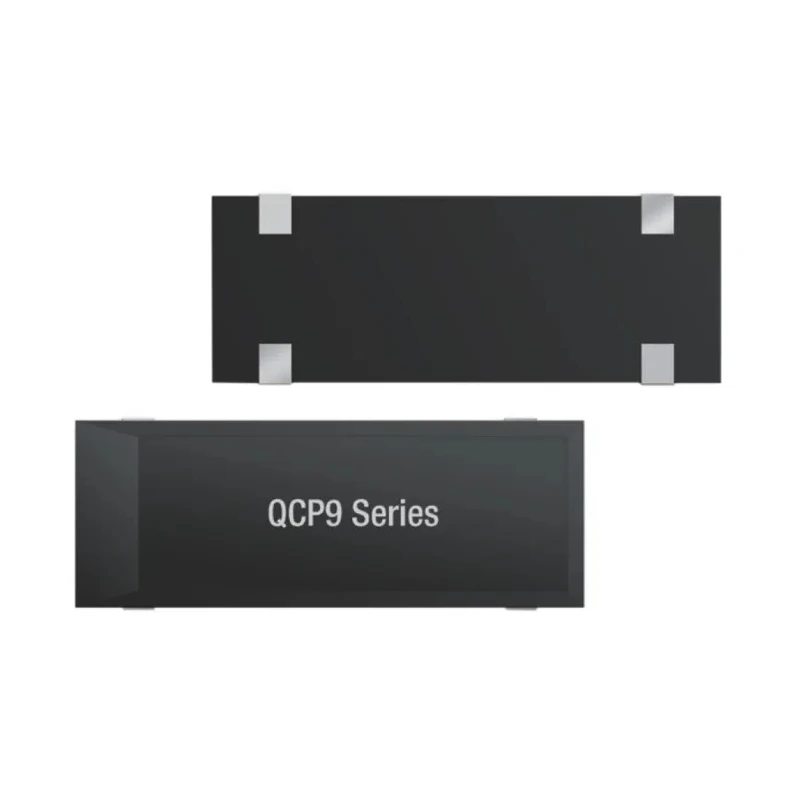

QANTEK 7.3728 MHz Crystal Unit ±30 ppm Surface Mount 4-Pin 3.7 mm Height 12.5 mm Length 4.6 mm Width QCP97.37280F18B35R

Free Delivery in India | Lowest Global Shipping Charges

QANTEK 7.3728 MHz Crystal Unit ±30 ppm Surface Mount 4-Pin 3.7 mm Height 12.5 mm Length 4.6 mm Width QCP97.37280F18B35R

Name: QANTEK 7.3728 MHz Crystal Unit ±30 ppm Surface Mount 4-Pin 3.7 mm Height 12.5 mm Length 4.6 mm Width QCP97.37280F18B35R
Brand: Qantek
SKU: 378337
Price: 1.39 USD
Availability: InStock



Category Crystal Unit Brand Qantek Condition New

Specifications

Country of Origin	China
Brand	QANTEK
Height	3.7mm
Length	12.5mm
Model	QCP97.37280F18B35R
Packaging	Tape & Reel
Width	4.6mm
Mount Type	Surface
Series	QCP9
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	7.3728MHz
Load Capacitance	18pF
Series Resistance	120Ω
Fox Electronics 7.373MHz Crystal ±50ppm SMD 4-Pin 12.5 x 4.6 x 3.7mmBrand	Fox Electronics

Key Features

Standard frequency of 7.3728 MHz suitable for stable oscillation circuits.
Surface mount type with 4 pins for secure PCB integration.
Operating temperature range from -40°C to +85°C ensures reliability in harsh environments.
Load capacitance of 18 pF optimized for consistent performance.
Series resistance of 120 Ω for efficient signal control.
Compliance with RoHS standards for environmental safety.
Supplied in tape and reel packaging for automated PCB assembly.
Robust plastic package offering heat resistance and reflow solder compatibility.

Product Description

QANTEK QCP97.37280F18B35R is a 7.3728 MHz Crystal Unit designed for precise frequency control in commercial and industrial electronics. It features a compact surface mount 4-pin plastic package measuring 12.5 mm in length, 4.6 mm in width, and 3.7 mm in height. The crystal unit maintains a frequency tolerance of ±30 ppm and stability of ±50 ppm, ensuring accurate and stable oscillations essential for electronic systems.

This crystal oscillator operates reliably across a wide temperature range from -40°C to +85°C, making it suitable for industrial temperature conditions. The load capacitance is rated at 18 pF, and the series resistance is 120 Ω, supporting efficient oscillation characteristics. The device is RoHS compliant, meeting environmental and safety standards.

Packaged in tape and reel format, the QCP97.37280F18B35R is optimized for high-volume automated PCB assembly and solder reflow processes. Its durable plastic surface mount package also exhibits excellent heat resistance and environmental robustness. This crystal oscillator is widely applicable in industrial control systems, communication devices, consumer electronics, and other precision demanding applications.

Standard frequency of 7.3728 MHz suitable for stable oscillation circuits. Surface mount type with 4 pins for secure PCB integration. Compact package dimensions: 12.5 mm length, 4.6 mm width, and 3.7 mm height. Operating temperature range from -40°C to +85°C ensures reliability in harsh environments.

Load capacitance of 18 pF optimized for consistent performance. Series resistance of 120 Ω for efficient signal control. Compliance with RoHS standards for environmental safety. Supplied in tape and reel packaging for automated PCB assembly.

Robust plastic package offering heat resistance and reflow solder compatibility.

This product is essential for industries requiring precise timing and frequency stability such as telecommunications, automotive electronics, instrumentation, and embedded system design. QANTEK's QCP9 series provides trusted performance in various demanding industrial electronics contexts.
