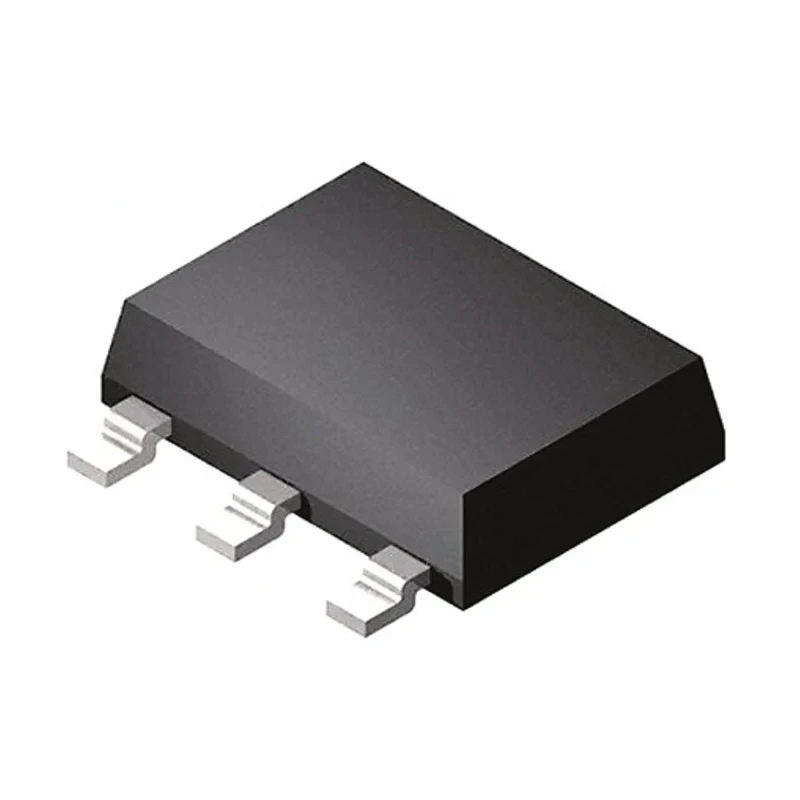

DiodesZetex Bipolar Power Transistor, NPN, 6 A, 60 V, 4-Pin SOT-223 ZX5T851GTA

DiodesZetex ZX5T851GTA Bipolar Power Transistor is an NPN transistor designed for robust and efficient performance in electronic circuits.

This device supports a maximum collector current of 6 amperes and can sustain voltages up to 60 volts between collector and emitter, making it suitable for medium power applications.

The transistor is housed in a 4-pin SOT-223 surface mount package, offering easy PCB integration and compact design. It has a high maximum collector-base voltage of 150 volts and an emitter-base voltage rating of 7 volts.

The transistor dissipates up to 12.8 watts of power, enabling it to handle substantial load conditions while maintaining thermal stability. Its frequency characteristic supports up to 130 MHz, making it suitable for switching and amplification in RF applications.

The device meets stringent automotive quality standard AEC-Q101 and operates reliably across a wide temperature range from -55°C to 150°C. Typical applications include power amplification, switching in DC-DC converters, and general purpose electronic circuits where power handling and reliability are critical.

Packaged in a 4-pin SOT-223 surface mount configuration. Maximum collector current of 6 A and voltage of 60 V. High power dissipation rating of 12.8 W. Automotive standard AEC-Q101 certified for quality and reliability. Operating temperature range -55°C to 150°C.

Compact dimensions: length 6.55 mm, width 7.1 mm, height 1.65 mm. Transition frequency up to 130 MHz for switching applications. This transistor is a premium choice for designers in industrial, automotive, and consumer electronics seeking a reliable power transistor solution.
