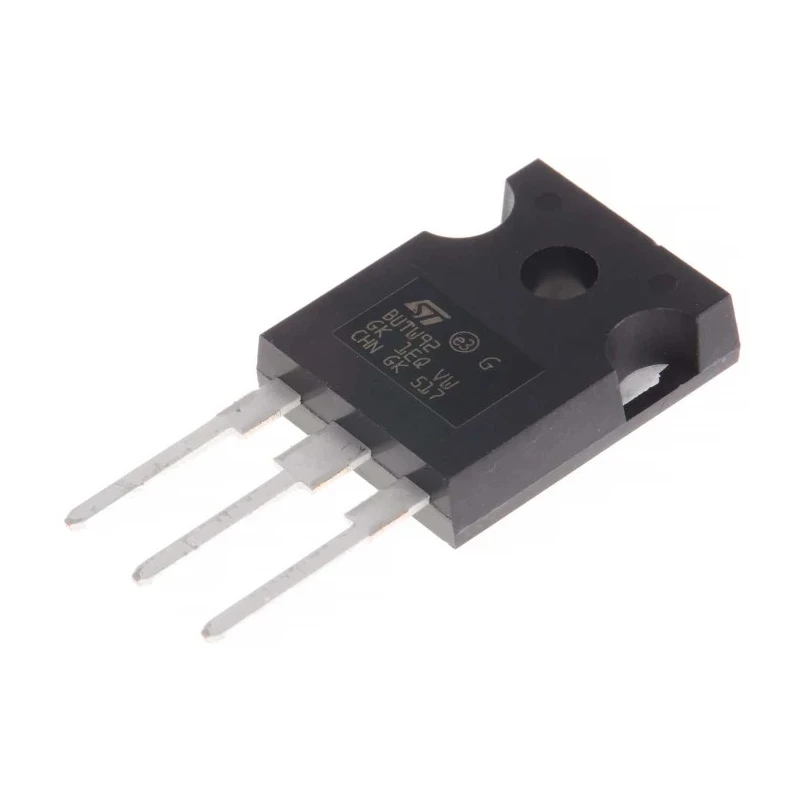

STMicroelectronics NPN Power Transistor 60 A 250 V 3-Pin TO-247 BUTW92

STMicroelectronics BUTW92 is a high power NPN bipolar transistor designed for demanding industrial and electronic applications requiring robust current and voltage handling capabilities. This 3-Pin TO-247 package transistor supports a maximum DC collector current of 60 amperes and a collector-emitter voltage of 250 volts, making it suitable for power amplification, switching, and control operations in electronic circuits.

The transistor features a maximum power dissipation of 180 watts, allowing it to operate efficiently under heavy loads and thermal stress. Its minimum current gain of 6 (hFE) ensures effective amplification performance. The device is designed for through-hole mounting, facilitating easy integration into printed circuit boards (PCBs) and assemblies.

Operating temperature capabilities range from 0°C to 150°C, making this transistor reliable for industrial, automation, manufacturing, and power management environments. The maximum collector-base voltage is rated at 500 volts and emitter-base voltage at 7 volts, providing protection against voltage spikes and operational stresses.

Compact physical size with precise dimensions (Height 34.6 mm, Length 15.9 mm, Width 5.3 mm) aids in efficient PCB design and heat dissipation. This transistor does not carry specific automotive or industry standards but is compliant with general semiconductor manufacturing quality.

The TO-247 package with three pins ensures stable electrical connections and mechanical durability. This product is particularly useful in power electronics, motor control, power supply regulation, and other heavy-duty electronic circuitry.

Maximum DC collector current of 60 amperes supports heavy loads. Collector-emitter voltage rating of 250 volts for robust operation. Maximum power dissipation of 180 watts for high energy handling. 3-pin TO-247 through-hole package for easy mounting.

NPN transistor polarity with minimum current gain of 6. Wide operating temperature range from 0°C to 150°C. Maximum collector-base voltage of 500 volts. Emitter-base voltage rating of 7 volts for protection against reverse voltage.

Compact dimensions: Height 34.6mm, Length 15.9mm, Width 5.3mm.

This STMicroelectronics NPN power transistor is ideal for use in industrial electronics, power management systems, motor drives, and other applications requiring reliable high current and voltage switching components. EnvMart enables efficient procurement of this component to support high-performance electronics manufacturing and maintenance projects.
