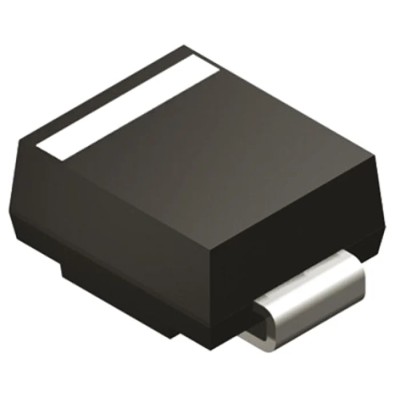

DiodesZetex 200 V 3 A Fast Recovery Surface Mount Single Diode DO-214AA RS3DB-13-F

DiodesZetex RS3DB-13-F Fast Recovery Surface Mount Single Diode DO-214AA is engineered for efficient rectification in electronic power circuits. Featuring a maximum continuous forward current of 3 amperes and a peak repetitive reverse voltage of 200 volts, this diode is suitable for demanding switching and rectifier applications.

The diode offers fast recovery characteristics with a peak reverse recovery time of 150 nanoseconds, enhancing performance in high-frequency circuits. Its low forward voltage drop of 1.3 volts reduces conduction losses, making it energy efficient in industrial, commercial, and electronic component manufacturing environments.

Designed with a surface mount DO-214AA package, the diode measures approximately 4.57 mm in length and height, and 3.94 mm in width, facilitating compact PCB designs. It is capable of operating reliably within a temperature range of -65°C to 150°C, suitable for industrial temperature conditions.

This single diode device has a minimal peak reverse current of 250 microamperes, limiting leakage and enhancing circuit stability. It supports surge currents up to 100 amperes non-repetitively, providing robustness against transient conditions.

The RS3DB series from DiodesZetex is widely utilized in power supplies, inverter circuits, and electronic designs requiring fast switching and high efficiency. Its surface mount form factor allows automated assembly for production efficiency.

Surface mount type with DO-214AA package ensures compact PCB integration. Fast recovery rectifier diode designed for efficient switching applications. Maximum continuous forward current is rated at 3 amperes. Peak repetitive reverse voltage capability up to 200 volts.

Low peak reverse current of 250 microamperes reduces leakage losses. Maximum forward voltage drop of 1.3 volts supports high efficiency. Fast peak reverse recovery time of 150 nanoseconds minimizes switching losses. Operating temperature range from -65°C to maximum 150°C supports robust use.

Compact dimensions approximately 4.57 mm length, 3.94 mm width, and 4.57 mm height. Single diode configuration with 2-pin surface mount design.

This fast recovery diode from DiodesZetex is ideal for industrial, laboratory, electronics manufacturing, and power supply applications. Explore more semiconductor components in the Electronics & Electricals category at EnvMart.
