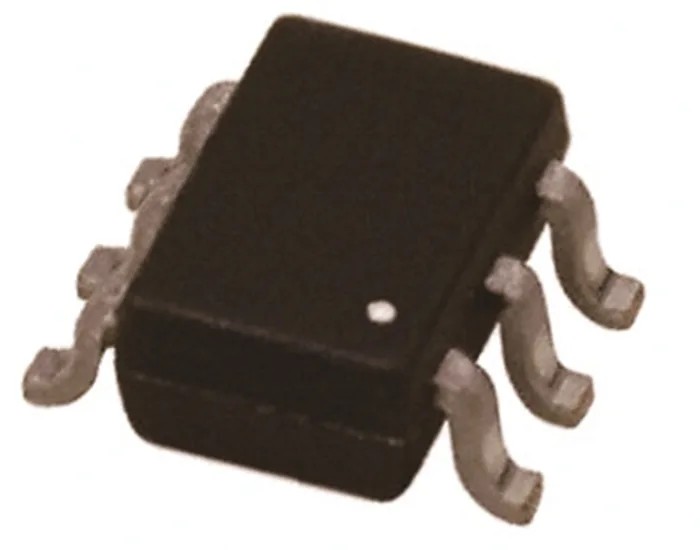

DiodesZetex 5 Output Adjustable Current Sink Linear LED Display Driver 0.8V to 30V, 120mA, 20mA PWM AL5802-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 5 Output Adjustable Current Sink Linear LED Display Driver 0.8V to 30V, 120mA, 20mA PWM AL5802-7

Name: DiodesZetex 5 Output Adjustable Current Sink Linear LED Display Driver 0.8V to 30V, 120mA, 20mA PWM AL5802-7
Brand: DiodesZetex
SKU: 377914
Price: 0.2 USD
Availability: InStock



Category LED Display Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Model	AL5802-7
Mount Type	Surface
Series	AL5802
Sub Type	LED Driver
Number of outputs	5
Terminal type	SOT 26
Input Voltage	30, 4.5V
Output Voltage	0.8, 30V
Power Dissipation	1W
Standards/Approvals	RoHS, AEC-Q101
Dimming Operation	PWM
Primary Type	Adjustable Current Sink Linear LED Driver
Driver Current	120, 20mA
LED Voltage	0.8, 30V

Key Features

Provides five independent outputs for display or LED lighting applications.
Operates from an input voltage range of 4.5V to 30V suitable for various power supply conditions.
Employs PWM dimming operation for precise brightness control.
Compact SOT 26 surface mount package ideal for PCB integration.
Complies with RoHS and AEC-Q101 standards ensuring quality and reliability.
Power dissipation is limited to 1 watt for efficient thermal management.
Suitable for driving low-current, high-brightness LEDs in industrial and electronic devices.
Enables stable LED voltage outputs at 0.8V and 30V for versatile LED configurations.

Product Description

DiodesZetex AL5802-7 is a 5 output adjustable current sink linear LED Display driver designed for efficient driving of low-current, high-brightness LEDs. Operating with input voltages from 4.5V up to 30V, this device supports multiple LED lighting and display applications that demand precise current control and dimming capabilities.

Its surface mount SOT 26 package facilitates easy integration into printed circuit boards in electronics manufacturing. With a power dissipation of just 1 watt, the AL5802-7 maintains energy efficiency and thermal stability in compact electronic assemblies.

The driver incorporates PWM dimming operation that enables fine brightness control for LEDs, making it ideal for displays and LED lighting modules requiring variable illumination levels. Compliance with RoHS and AEC-Q101 standards confirms its suitability for automotive and industrial electronics applications.

This linear LED driver provides five outputs, each capable of delivering 120mA or 20mA driver current levels, and supports LED voltage outputs ranging from 0.8V to 30V. Such versatility allows usage across a wide range of LED types and configurations, enhancing design flexibility for manufacturers.

This component is commonly used in industrial electronics, display modules, instrumentation, automotive lighting systems, and other applications where precise LED current regulation is critical. The robust design ensures reliable operation under varying electrical conditions.

Provides five independent outputs for display and LED lighting applications. Wide input voltage range from 4.5V to 30V supports diverse power sources. PWM dimming for accurate and energy-efficient brightness control. SOT 26 surface mount for compact and automated PCB manufacturing.

Certified to RoHS and AEC-Q101 standards for quality assurance. Power dissipation limited to 1W for improved thermal management. Utilized in industrial, automotive, medical, and instrumentation electronic devices. Supports LED voltage outputs of 0.8V to 30V for various LED configurations.

For professional electronics design and reliable LED driving solutions, explore this DiodesZetex AL5802-7 LED driver and other high-quality components at EnvMart's Electronics & Electricals category.
