onsemi Logic Level Translator 2 LVTTL/LVCMOS to LVPECL 8-Pin TSSOP MC100EPT20DTG

Free Delivery in India | Lowest Global Shipping Charges

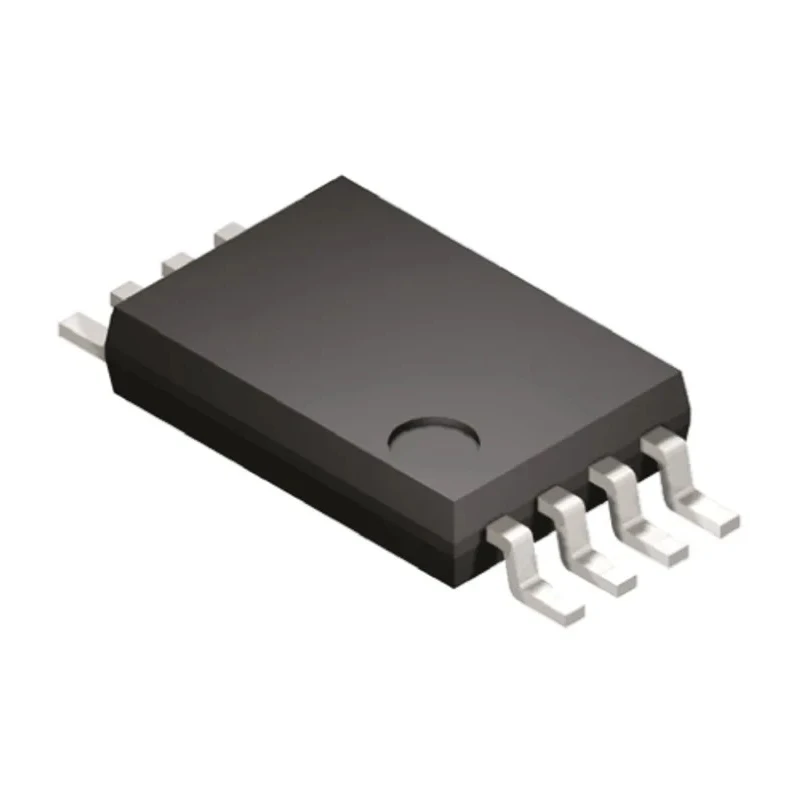

onsemi Logic Level Translator 2 LVTTL/LVCMOS to LVPECL 8-Pin TSSOP MC100EPT20DTG

Name: onsemi Logic Level Translator 2 LVTTL/LVCMOS to LVPECL 8-Pin TSSOP MC100EPT20DTG
Brand: onsemi
SKU: 370611
Price: 12.43 USD
Availability: InStock



Category Logic Level Translator Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.1mm
Length	3.1mm
Model	MC100EPT20DTG
Mount Type	Surface
Output type	PECL
Series	MC100EPT2
Maximum Operating Temperature	85°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Pin Count	8
Number of Elements per Chip	2
Maximum Supply Voltage	3.6V
Logic Family	LVCMOS/LVTTL
Logic Function	Translator
Minimum Supply Voltage	3V
Maximum High Level Output Current	100mA
Maximum Propagation Delay Time @ CL	2ns
Direction Type	Uni-Directional
Maximum Low Level Output Current	50mA
Translation	LVTTL/LVCMOS to LVPECL

Key Features

Operates over a supply voltage range of 3 V to 3.6 V.
Maximum propagation delay time of 2 ns ensuring high-speed translation.
Output type is PECL with max low-level output current of 50 mA.
Minimum operating temperature of -40°C and maximum operating temperature of 85°C.
Compact form factor with 1.1 mm height and 3.1 mm length package size.
Surface mount device designed for easy PCB assembly.
Suitable for interfacing with multiple logic families including ECL, PECL, CML, LVDS, HSTL, HCSL, TTL, and CMOS.
Series MC100EPT2 device from onsemi with 8-pin TSSOP package.

Product Description

onsemi MC100EPT20DTG is a high-speed logic level translator designed for seamless translation of LVTTL/LVCMOS logic levels to LVPECL output. This 2-element translator operates uni-directionally and comes in a compact surface-mount 8-pin TSSOP package measuring 3.1 mm in length and 1.1 mm in height, ideal for tight PCB layouts.

The device supports a supply voltage between 3 V and 3.6 V and achieves a maximum propagation delay time of 2 ns, enabling fast and reliable signal translation in digital circuits. Its output stage is PECL type, capable of handling maximum low level output current of 50 mA and high level output current up to 100 mA, suitable for high-performance applications.

The operating temperature range from -40°C to 85°C ensures reliable performance in various industrial and commercial environments. The MC100EPT20DTG belongs to the MC100EPT2 series and is targeted towards applications requiring differential ECL logic level translators compatible with multiple logic families including ECL, PECL, CML, LVDS, HSTL, HCSL, TTL, and CMOS.

Key features include a uni-directional translation mechanism, ease of surface mounting, and conformity with standard TSSOP packaging standards. These translators are typically used in high-frequency digital communication, computing, instrumentation, and control systems.

onsemi is a recognized leader in semiconductor logic devices, and the MC100EPT20DTG offers a reliable solution for level translation needs in electronics manufacturing and design. Operates with LVCMOS/LVTTL logic family inputs.

Uni-directional translation ensures signal integrity. Small 8-pin TSSOP surface mount package. High-speed translation with 2ns maximum propagation delay. Wide temperature operation supports industrial applications. Compatible with multiple output logic standards including PECL.

Compact dimensions enable integration into space-constrained circuit boards.

EnvMart offers this onsemi MC100EPT20DTG Logic Level Translator suitable for industrial, laboratory, communication, and manufacturing electronics applications. Explore EnvMart for more advanced semiconductor logic ICs and translator ICs.
