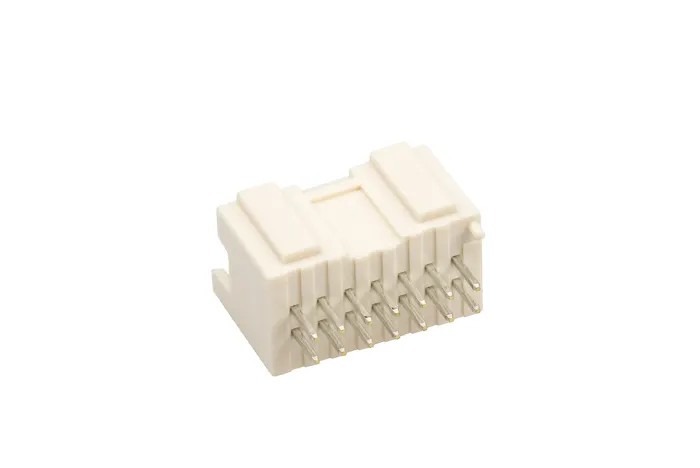

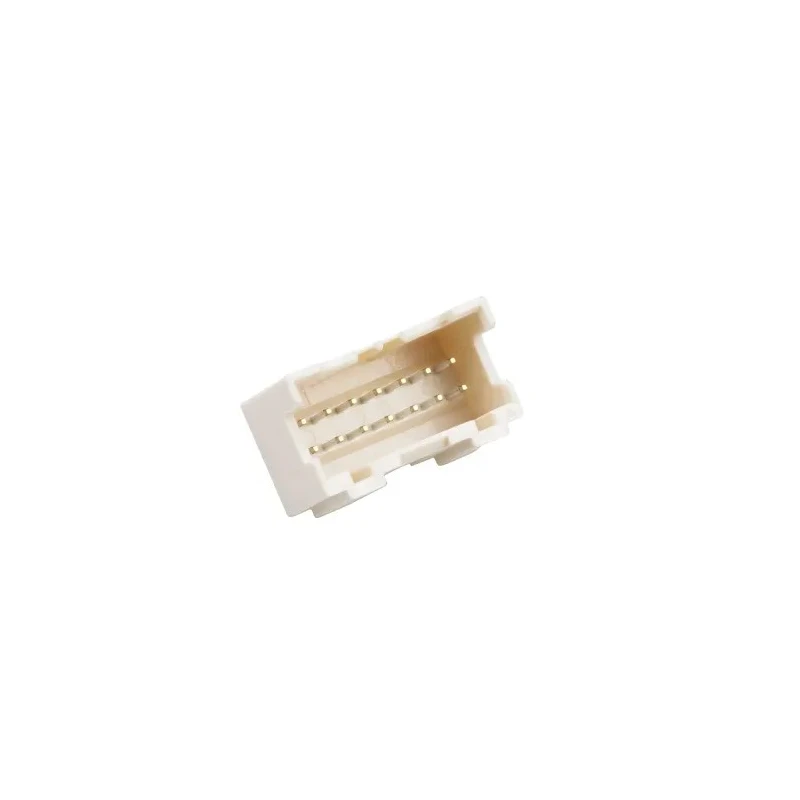

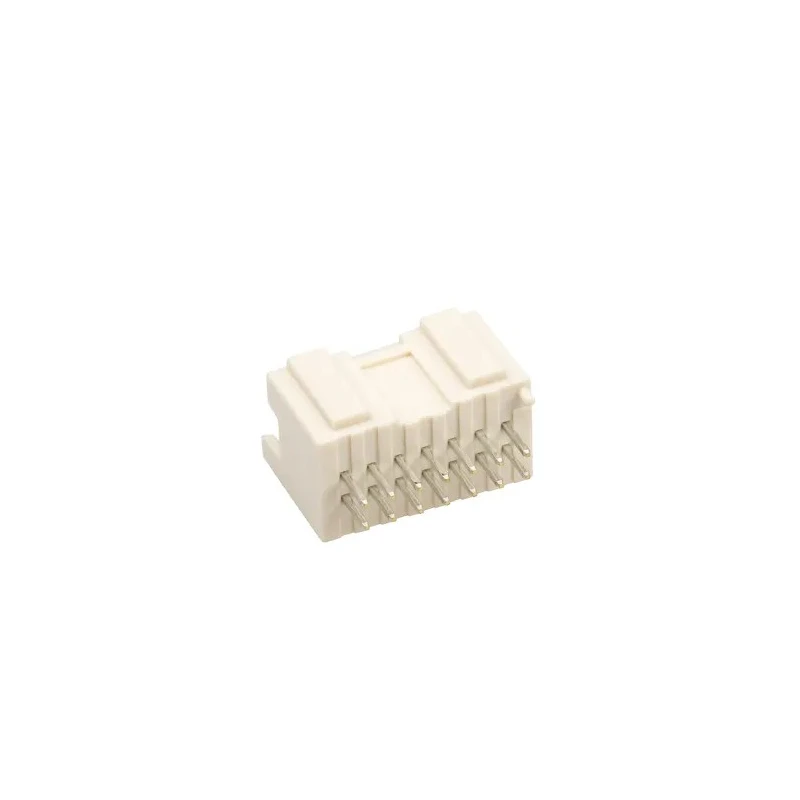

JST PAD Series Straight Through Hole Shrouded 14 Contact 2 mm Pitch 2 Row PCB Header B14B-PADSS-1F(LF)(SN)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | JST |
| Orientation | Straight |
| Current | 3A |
| Model | B14B-PADSS-1F(LF)(SN) |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | PAD |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a secure locking device to prevent accidental disconnection.
- Manufactured with polyamide housing for durability.
- Rated for 3A current and 250V voltage applications.
- Operates reliably within a temperature range of -25°C to 85°C.
- Constructed with copper alloy contacts plated with tin for conductivity and corrosion resistance.
- Compatible with through hole mounting and solder termination types.
- Designed with long dimples in contacts for reliable continuity under adverse conditions.
- Ideal for high-density electronics applications requiring wire-to-board connectivity.
Product Description
JST B14B-PADSS-1F(LF)(SN) is a high-quality PAD Series PCB header designed for reliable wire-to-board connections in electronics assembly. This component features 14 male contacts arranged in two rows with a 2 mm pitch to provide a compact yet effective connection solution. The header is shrouded and includes a secure locking device to ensure the connector remains mated during operation and handling.
Constructed with a polyamide housing, the connector offers mechanical strength and heat resistance suitable for industrial electronic environments. The copper alloy contacts are tin-plated to enhance electrical conductivity and resist corrosion over time. It supports a current rating of 3A and a voltage rating up to 250V, allowing usage in various low to moderate power applications.
The through hole mounting and solder termination style facilitate stable assembly on Printed Circuit Boards (PCBs), making it compatible with standard PCB manufacturing processes. With operating temperatures ranging from -25°C to +85°C, this PCB header is suitable for a variety of operating conditions found in industrial, manufacturing, and automation equipment.
Benefits of this component include polarization and insertion guides to prevent misalignment during mating, as well as long dimples on contacts that maintain electrical continuity even in adverse conditions such as vibration.
Features a secure locking device for stable mating. Durable polyamide housing suited for industrial environments. Copper alloy tin-plated contacts ensure reliable conductivity. Supports 3A at 250V in a compact 2 mm pitch, two-row configuration.
Suitable for through hole solder mounting on PCBs. Wide operating temperature range of -25°C to 85°C. Designed for wire-to-board connector systems in high-density applications.
This JST PAD Series PCB Header is applicable to electronics manufacturing, automotive, industrial control systems, consumer electronics, and other sectors requiring compact and reliable connector systems. Its quality materials and design ensure long-term performance and ease of use in assembly lines and field service.
Explore more in our PCB Headers category to find complementary receptacle housings and related connector components suitable for integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 3A and a voltage of 250V, making it suitable for low to moderate power applications.
It features a 2 mm pitch and has 14 male contacts arranged in two rows.
The housing is made of polyamide for mechanical strength and heat resistance, while the contacts are constructed from copper alloy and plated with tin for conductivity and corrosion resistance.
It operates reliably within a temperature range of -25°C to 85°C, suitable for various industrial environments.
This unit is designed for through hole mounting and utilizes solder termination types for stable assembly on printed circuit boards.
Yes, it includes a secure locking device to prevent accidental disconnection during operation and handling.
It is designed for wire-to-board connectivity, making it suitable for high-density electronics applications.
The contacts are arranged in a straight orientation, facilitating easy connection.
The long dimples on the contacts are designed to maintain reliable electrical continuity even under adverse conditions such as vibration.
The country of origin for this PCB header is India.
This model is applicable in electronics manufacturing, automotive, industrial control systems, and consumer electronics, among other sectors.
