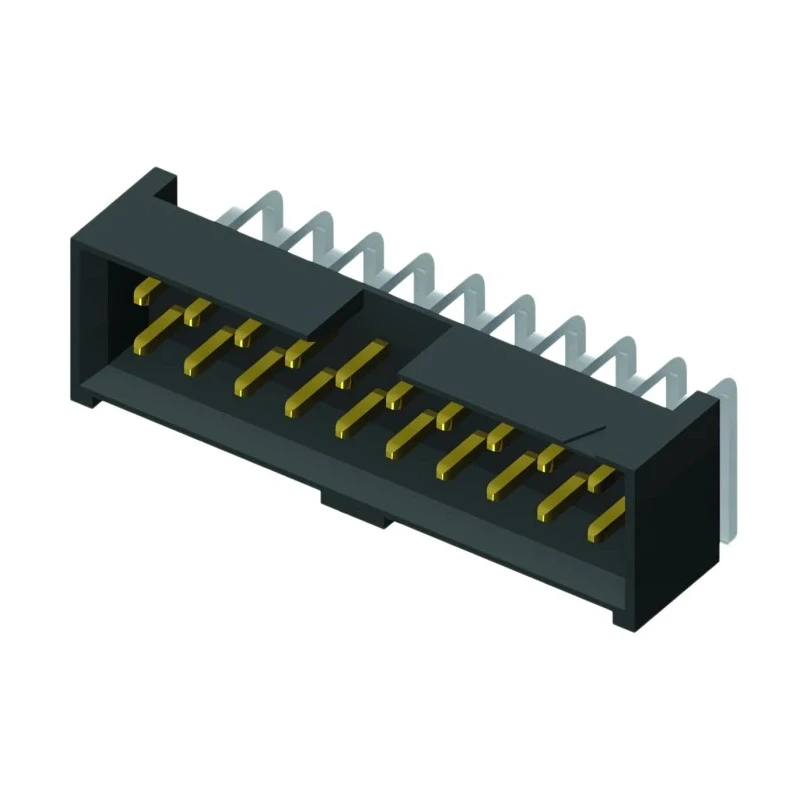

Samtec STMM Series Right Angle Through Hole PCB Header 34 Contacts 2 mm Pitch 2 Row Shrouded STMM-117-02-L-D-RA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 3A |
| Model | STMM-117-02-L-D-RA |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | STMM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 34 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.29mm |
| Mating Pin Length | 3.05mm |
Key Features
- Utilizes phosphor bronze contact material for excellent conductivity.
- Gold contact plating ensures corrosion resistance and reliable signal integrity.
- Constructed with liquid crystal polymer housing for high thermal stability.
- Supports a maximum operating temperature of 125°C and a minimum of -55°C.
- Mounting by through hole method with solder termination for robust mechanical and electrical connection.
- Offers a 3A current rating suitable for diverse electronic applications.
- Tail pin length of 2.29 mm and mating pin length of 3.05 mm enhance connection reliability.
- Shrouded design includes a polarizing notch to prevent incorrect mating.
Product Description
Samtec STMM-117-02-L-D-RA is a right angle through hole PCB header from the STMM series. Featuring 34 male contacts arranged in 2 rows with a 2 mm pitch, this shrouded header is engineered for precise, reliable connections on printed circuit boards in electronic devices.
The housing is made from liquid crystal polymer, providing exceptional thermal resistance and durability in demanding environments. Phosphor bronze contacts with gold plating ensure high conductivity and corrosion resistance, supporting a continuous current of up to 3A. This connector also withstands operating temperatures ranging from -55°C to 125°C.
The through hole mounting and solder termination method offer sturdy mechanical attachment as well as robust electrical contact, suitable for industrial PCB assembly processes. The shrouded design with a polarizing notch further ensures accurate mating with corresponding connectors, reducing the risk of assembly errors.
This product is ideal for applications in electronic components manufacture, power connectors, industrial instrumentation, and other sectors requiring high quality, reliable PCB interconnections. Its compact 2 mm row pitch and right angle orientation enable flexible PCB layouts and wiring schemes.
Phosphor bronze contact material for excellent electrical performance. Gold plating on contacts enhances durability and corrosion resistance. Liquid crystal polymer housing provides high mechanical strength and thermal stability.
Operating temperature range from -55°C up to 125°C ensures reliability in harsh environments. Through hole mount with solder termination ensures secure PCB attachment. 3A current rating is suitable for many electronic applications.
Shrouded two-row design with 34 contacts and 2 mm pitch facilitates compact, reliable connections. Right angle orientation accommodates versatile PCB layout designs. Designed for use in manufacturing of industrial and commercial electronic assemblies.
Explore the comprehensive Samtec PCB Header line on EnvMart for advanced connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3A, making it suitable for various electronic applications.
It supports an operating temperature range from -55°C to 125°C, ensuring reliability in harsh environments.
This unit features 34 male contacts arranged in 2 rows with a 2 mm pitch.
The housing is made from liquid crystal polymer, while the contacts are constructed from phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.
It utilizes a through hole mounting method with solder termination, ensuring a robust mechanical and electrical connection.
The tail pin length is 2.29 mm, which aids in connection reliability.
The mating pin length is 3.05 mm, designed to enhance connection reliability.
Yes, it features a shrouded design that includes a polarizing notch to prevent incorrect mating.
It is designed as a wire-to-board connector system, suitable for various electronic assemblies.
The country of origin for this product is India.
This model has a right angle orientation, allowing for flexible PCB layouts.
The contacts are arranged with a pitch of 2 mm, facilitating compact connections.
