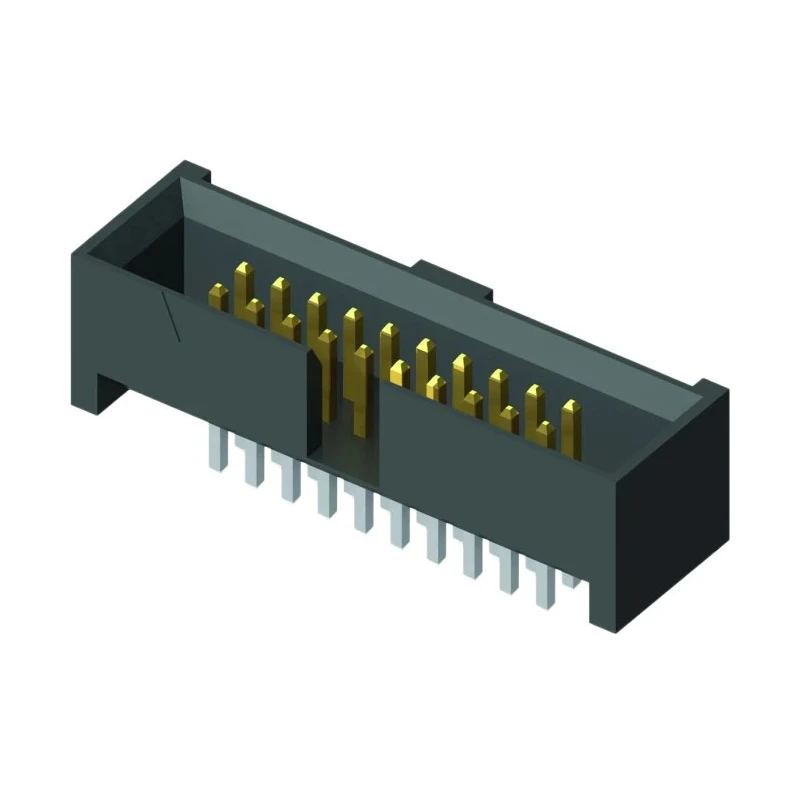

Samtec SHF Series Straight Through Hole PCB Header, 30 Contacts, 1.27 mm Pitch, 2 Row, Shrouded SHF-115-01-L-D-TH

Samtec SHF-115-01-L-D-TH is a high-quality straight through hole PCB header from the SHF series, featuring 30 male contacts arranged in two rows with a 1.27 mm pitch. This connector is designed for wire-to-board connection systems using through-hole mounting techniques. Its liquid crystal polymer housing provides excellent mechanical strength and thermal stability, making it ideal for demanding industrial and electronic applications.

The contacts are crafted from phosphor bronze and coated with gold plating to maintain strong electrical performance, resist corrosion, and ensure long-term durability. The header includes a polarizing notch to guarantee proper mating orientation during assembly, minimizing connection errors. With a current rating of 3 A, it accommodates moderate power needs in various PCB designs.

Designed for operating temperatures ranging from -55°C to 125°C, this header performs reliably under harsh environmental conditions. The solder termination type and male contact gender make it suitable for fixed board mounting. Tail pin length and mating pin length measurements support secure and stable electrical contact.

This PCB Header is essential in industrial, electronic manufacturing, and power connector assemblies, providing robust, secure connections in power, data, and signal transmission applications. The shrouded design adds protection and improves connector mating integrity, enhancing overall product reliability.

Constructed for secure wire-to-board connections with shrouded protection. Gold plated phosphor bronze contacts deliver high conductivity and longevity. Liquid crystal polymer housing ensures mechanical and thermal durability.

Supports operation across a wide temperature range suitable for industrial environments. Polarizing notch prevents mismating and improves assembly accuracy. Rated current of 3 A per contact meets moderate power requirements.

Ideal for electronics manufacturing, industrial control systems, and PCB assemblies. Explore EnvMart’s extensive range of electronic components for high-quality industrial and manufacturing solutions.
