Vishay Uni-Directional 1-Element Transient Voltage Suppressor TVS Diode 600 W, 2-Pin DO-214AA SMBJ8.0A-E3/52

Vishay SMBJ8.0A-E3/52 Uni-Directional 1-Element Transient Voltage Suppressor (TVS) Diode delivers robust protection for sensitive electronics against voltage transients and surges. Rated to dissipate 600 W peak pulse power with a 10/1000 µs waveform at a low duty cycle, it effectively clamps excessive voltage spikes to safe levels, safeguarding components in industrial, automotive, computer, telecommunication, and consumer electronic applications.

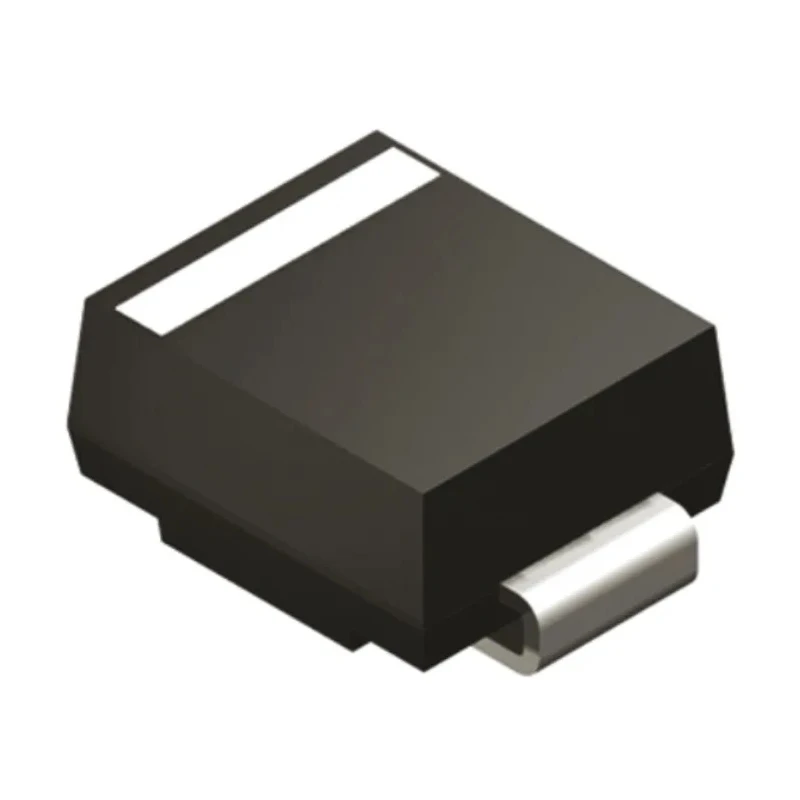

This TVS diode is housed in a compact, surface-mount DO-214AA (SMB) package measuring 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height, facilitating automated PCB assembly and space-efficient design. The diode features a single uni-directional element with a minimum breakdown voltage of 8.89 V, an operating voltage range up to 8 V reverse stand-off, and a clamping voltage of 13.6 V to constrain voltage surges.

Designed with a glass passivated chip junction, the device ensures excellent reliability, fast response time, and low incremental surge resistance. Operating temperature tolerances span from -55°C to 150°C, making it suitable for harsh environments. It complies with the automotive AEC-Q101 standard, assuring high-quality and robust performance required for automotive and industrial use cases.

The diode supports electrostatic discharge (ESD) protection and is ideal for protecting integrated circuits (ICs), metal-oxide semiconductor field-effect transistors (MOSFETs), sensor signal lines, and other sensitive semiconductor devices from inductive switching and lightning-induced voltage transients.

Applications include transient voltage suppression in power supplies, automotive electronics, telecommunication equipment, and computer hardware where surge protection is critical. This product's excellent clamping capabilities and packaging make it suitable for high-density circuit board layouts.

Single-element uni-directional diode configuration for surge protection. 600 W peak pulse power capability with 10/1000 µs waveform. Compact surface-mount DO-214AA (SMB) package facilitates automated assembly. Wide operating temperature range from -55°C to 150°C for industrial applications.

Low incremental surge resistance for efficient transient voltage suppression. Automotive AEC-Q101 certified ensuring reliability in critical environments. Protects ICs, MOSFETs, and signal lines in consumer, automotive, and telecom equipment.

Glass passivated chip junction enhances durability and performance. Fast response time ideal for transient voltage spikes and surges. Provides ESD protection to sensitive components against electrostatic discharges. Explore more electronic components and Transient Voltage Suppressors at EnvMart to find optimal solutions for your industrial, automotive, and telecommunication applications.
