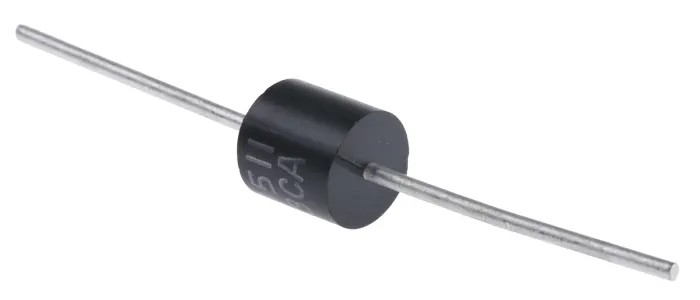

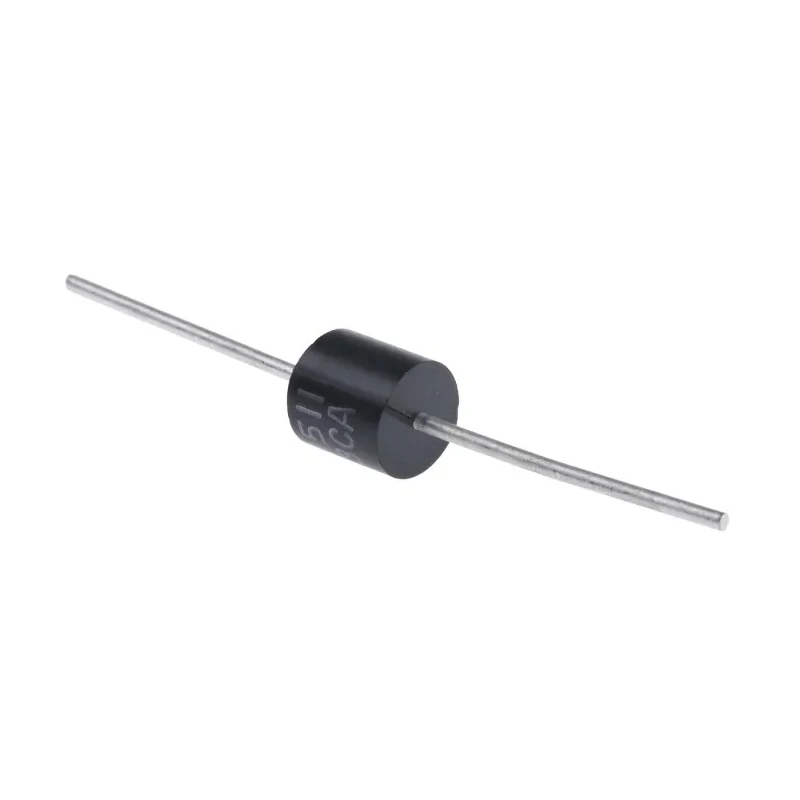

Littelfuse 1-Element Bi-Directional Transient Voltage Suppressor Diode 5 kW, 2-Pin P600 Package 5KP33CA
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.1mm |
| Brand | Littelfuse |
| Length | 9.1mm |
| Model | 5KP33CA |
| Mount Type | Through Hole |
| Series | 5KP |
| Maximum Operating Temperature | 175°C |
| Package Type | P600 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 53.3V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 36.7V |
| Maximum Reverse Stand-off Voltage Vwm | 33V |
| Peak Pulse Power Dissipation Pppm | 5kW |
| Test Current It | 5mA |
| Maximum Peak Pulse Current Ippm | 95.7A |
| Maximum Reverse Leakage Current | 2μA |
Key Features
- This TVS diode features a single diode configuration designed for bi-directional protection.
- The package type is P600 with through-hole mount for easy PCB installation.
- It offers a minimum breakdown voltage of 36.7 V and clamping voltage of 53.3 V.
- Supports a peak pulse current of 95.7 A ensuring robust transient voltage suppression.
- Operates safely in temperature ranges from -55°C to 175°C, suitable for various industrial applications.
- It has a maximum reverse stand-off voltage of 33 V and very low reverse leakage current of 2 µA.
- Compact physical size with dimensions 9.1 mm length and diameter.
- ESD protected device designed to safeguard sensitive electronic circuits from voltage surges.
Product Description
Littelfuse 5KP33CA is a 1-element bi-directional transient voltage suppressor diode rated for a peak pulse power dissipation of 5 kW, supplied in a 2-pin P600 through-hole package.
This device is engineered to protect sensitive electronic equipment from transient voltage spikes commonly induced by lightning strikes and other transient voltage events.
Featuring a single diode configuration with bi-directional protection, the 5KP33CA supports a minimum breakdown voltage of 36.7 V and maximum reverse stand-off voltage of 33 V, ensuring saturation during voltage transients to protect downstream electronics.
The diode exhibits a clamping voltage of 53.3 V and can withstand a peak pulse current of up to 95.7 A, offering reliable protection against high-energy surges. Designed to operate in harsh environments, it maintains performance across a wide temperature range from -55°C up to 175°C.
The compact P600 package measures 9.1 mm in length and diameter, ideal for through-hole PCB mounting and integration in discrete semiconductor circuits.
This Littelfuse TVS diode is widely utilised in industrial, electronic component manufacturing, power supplies, and semiconductor applications where voltage transient protection is critical.
This TVS diode features a single diode configuration designed for bi-directional protection. The package type is P600 with through-hole mount for easy PCB installation. It offers a minimum breakdown voltage of 36.7 V and clamping voltage of 53.3 V.
Supports a peak pulse current of 95.7 A ensuring robust transient voltage suppression. Operates safely in temperature ranges from -55°C to 175°C, suitable for various industrial applications. It has a maximum reverse stand-off voltage of 33 V and very low reverse leakage current of 2 µA.
Compact physical size with dimensions 9.1 mm length and diameter. ESD protected device designed to safeguard sensitive electronic circuits from voltage surges. Explore other Littelfuse semiconductor components and Transient Voltage Suppressors in the EnvMart catalogue for advanced electronic protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The 5KP33CA has a peak pulse power dissipation of 5 kW, providing robust protection against transient voltage spikes.
This model features a minimum breakdown voltage of 36.7 V, ensuring effective voltage clamping during transients.
The clamping voltage of this diode is 53.3 V, which helps protect sensitive electronics from voltage spikes.
The maximum reverse stand-off voltage for the 5KP33CA is 33 V, allowing it to handle voltage surges effectively.
This diode can withstand a maximum peak pulse current of 95.7 A, ensuring reliable transient voltage suppression.
It operates safely in temperature ranges from -55°C to 175°C, making it suitable for various industrial applications.
The 5KP33CA is supplied in a P600 package type, designed for through-hole mounting on PCBs.
This model has a compact size with a length and diameter of 9.1 mm, facilitating easy integration into circuits.
The diode features a single diode configuration with bi-directional protection, suitable for safeguarding electronic circuits.
The maximum reverse leakage current for the 5KP33CA is 2 µA, indicating low power loss during operation.
This transient voltage suppressor diode is widely utilized in industrial applications, electronic component manufacturing, and power supplies.
The test current for this model is 5 mA, which is used for evaluating its performance under specified conditions.
