Name: Nexperia 1-Element Uni-Directional TVS Diode 400 W 2-Pin SOD-123 PTVS26VS1UR,115
Brand: Nexperia
SKU: 236692
Price: 0.19 USD
Availability: InStock



Category Transient Voltage Suppressors Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.1mm
Length	2.8mm
Model	PTVS26VS1UR,115
Width	1.9mm
Mount Type	Surface
Series	PTVS
Maximum Operating Temperature	150°C
Package Type	SOD-123
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	42.1V
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	28.9V
Maximum Reverse Stand-off Voltage Vwm	26V
Peak Pulse Power Dissipation Pppm	400W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	9.5A
Maximum Reverse Leakage Current	100nA

Key Features

Offers unidirectional transient voltage suppression for protecting sensitive electronics.
Delivers a peak pulse power dissipation of 400 watts to handle voltage spikes.
Compact surface-mount SOD-123 package with low profile height of 1.1 mm.
Wide operating temperature range from -55°C to 150°C ensures reliability in harsh environments.
Features a minimum breakdown voltage of 28.9 V and a maximum reverse stand-off voltage of 26 V.
Incorporates ESD protection compliant with automotive standard AEC-Q101.
Peak pulse current rating of 9.5 A allows handling of significant transient currents.
Low maximum reverse leakage current of 100 nA minimizes power loss in circuits.

Product Description

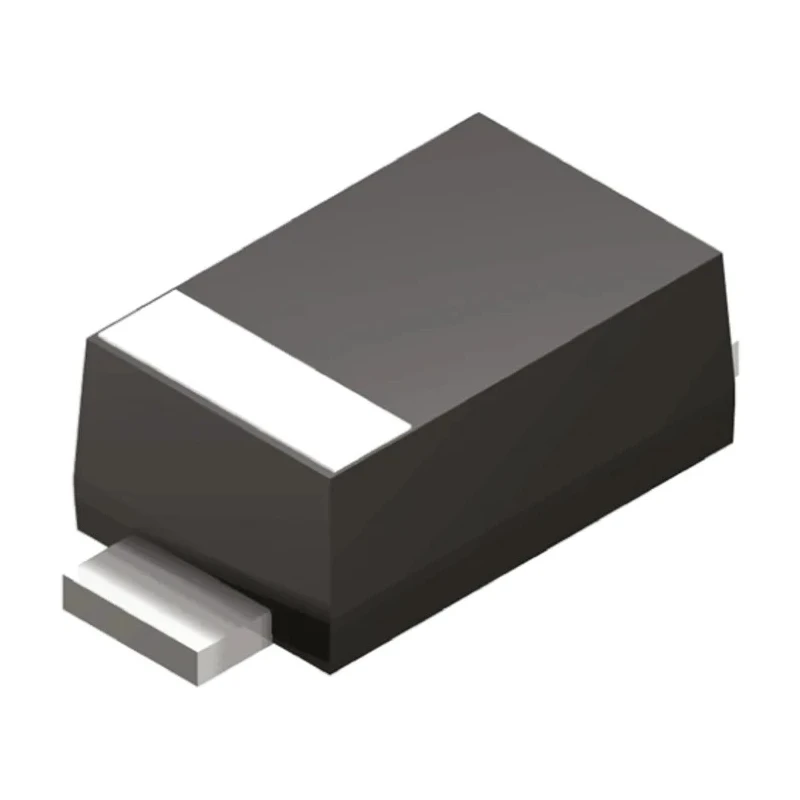

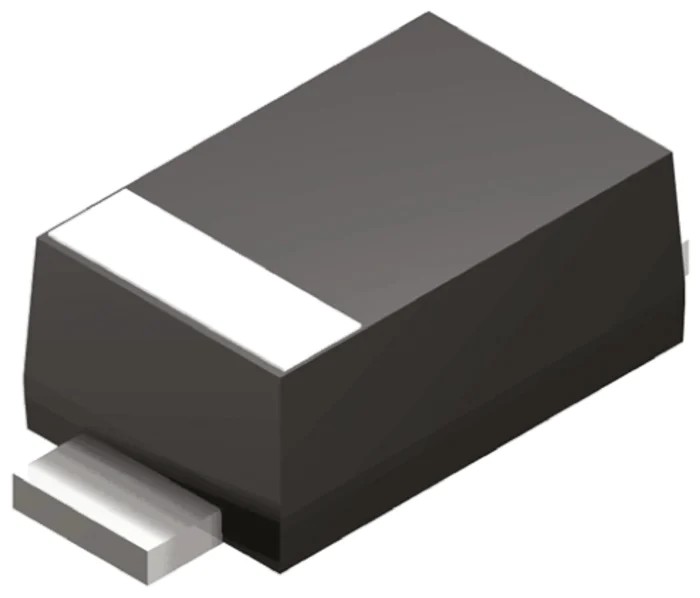

Nexperia PTVS26VS1UR,115 is a 1-Element Uni-Directional Transient Voltage Suppressor (TVS) diode designed to provide reliable overvoltage protection in electronic circuits. It supports a peak pulse power dissipation of 400 W and is housed in a compact low-profile 2-pin SOD-123 surface-mount package with dimensions 2.8 mm length, 1.9 mm width, and 1.1 mm height.

This diode is specifically engineered for transient overvoltage suppression, protecting sensitive semiconductor devices from damage caused by voltage spikes or electrostatic discharge events. The uni-directional design allows it to clamp positive voltage transients effectively in electronic and automotive applications.

With a minimum breakdown voltage of 28.9 V and maximum reverse stand-off voltage of 26 V, it safeguards circuit components within defined voltage thresholds. The device can operate reliably in extreme temperature conditions ranging from -55°C to 150°C, making it suitable for industrial environments and harsh automotive systems.

The PTVS26VS1UR,115 features a peak pulse current capacity of 9.5 A and a low maximum reverse leakage current of 100 nA, providing efficient surge protection without adding significant load to the circuit. Additionally, it meets the automotive AEC-Q101 qualification standard ensuring robust performance in automotive electronics.

This transient voltage suppressor is widely used in power supplies, industrial machinery control boards, automotive electronic subsystems, and general electronic circuitry requiring protection against voltage transients. Its surface-mount design enables easy integration on printed circuit boards and automated assembly lines, improving production efficiency.

Offers unidirectional transient voltage suppression for sensitive electronics. 400 W peak pulse power dissipation protects against high energy surges. Compact SOD-123 surface-mount package with small footprint. Wide temperature range from -55°C to 150°C for industrial/automotive use.

Low reverse leakage current reduces power loss in circuits. Meets automotive AEC-Q101 standard for automotive applications. High peak pulse current rating handles significant transient currents. Surface-mount design for efficient PCB assembly.

Protects power supplies, industrial controls, and automotive electronics. Durable and reliable overvoltage protection device. Explore more Transient Voltage Suppressors and related electronic components at EnvMart for your industrial and commercial applications.
