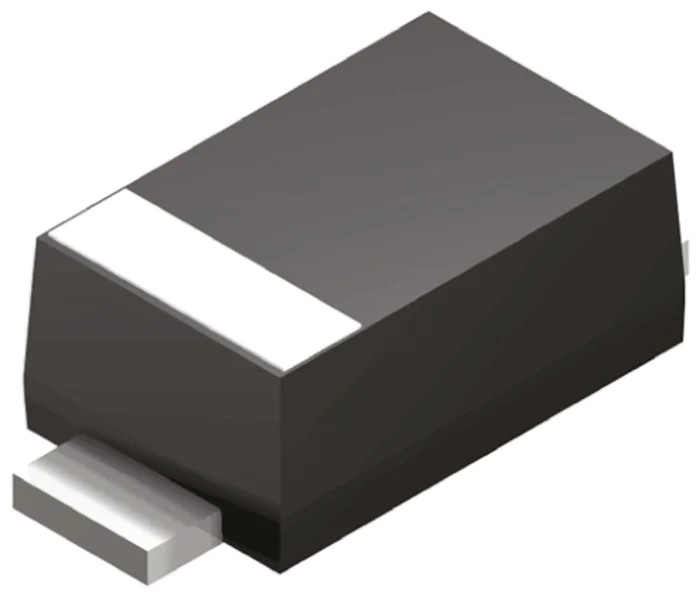

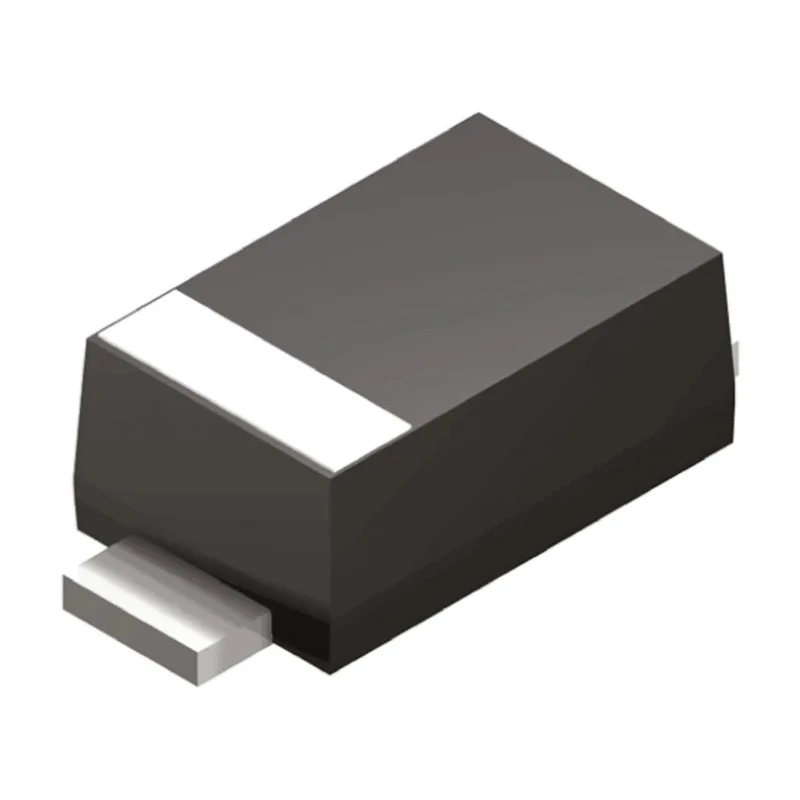

Nexperia 1-Element Uni-Directional TVS Diode, 400 W, 2-Pin SOD-123 PTVS26VS1UR,115
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.8mm |
| Model | PTVS26VS1UR,115 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | PTVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 42.1V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 28.9V |
| Maximum Reverse Stand-off Voltage Vwm | 26V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 9.5A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- This TVS diode has a uni-directional diode configuration for reliable protection.
- It features a small lead low-profile SOD-123 package suited for compact PCB designs.
- The maximum reverse stand-off voltage is rated at 26 V with a clamping voltage of 42.1 V.
- Operates effectively between −55°C and 150°C for industrial and automotive applications.
- Offers ESD protection compliant with the automotive standard AEC-Q101.
- Pin count of 2 ensures ease of integration in various electronic circuits.
- Maximum peak pulse current is 9.5 A, providing robust pulse handling capability.
- Low maximum reverse leakage current of 100 nA to minimize power losses.
Product Description
Nexperia PTVS26VS1UR,115 1-Element Uni-Directional TVS Diode offers transient voltage suppression in a compact, low-profile, surface mount SOD-123 package. It is designed for high reliability and robust protection of sensitive electronics against transient overvoltages caused by electrostatic discharge (ESD), voltage spikes, and surges.
This diode has a single-element, uni-directional configuration with a minimum breakdown voltage of 28.9 V. It withstands peak pulse power dissipation of 400 W and peak pulse current of 9.5 A, making it suitable for industrial, automotive, and commercial electronic applications requiring high transient tolerance.
The device achieves a maximum reverse stand-off voltage of 26 V and clamps at 42.1 V, protecting downstream circuitry effectively. It operates across a wide temperature range from −55°C to 150°C, satisfying automotive grade requirements compliant with AEC-Q101 standard.
Physically, the diode measures 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height, ensuring compatibility with compact PCB designs and automated surface mounting processes. Its low maximum reverse leakage current of 100 nA ensures minimal power dissipation during normal operation.
This product is ideal for electronic components protection in power & connectors, discrete semiconductors, transient voltage suppression, automotive systems, and other industrial electronics requiring reliable overvoltage protection.
This TVS diode has a uni-directional diode configuration for reliable protection. It features a small lead low-profile SOD-123 package suited for compact PCB designs. The maximum reverse stand-off voltage is rated at 26 V with a clamping voltage of 42.1 V.
Operates effectively between −55°C and 150°C for industrial and automotive applications. Offers ESD protection compliant with the automotive standard AEC-Q101. Pin count of 2 ensures ease of integration in various electronic circuits.
Maximum peak pulse current is 9.5 A, providing robust pulse handling capability. Low maximum reverse leakage current of 100 nA to minimize power losses. Height, length and width dimensions are 1.1 mm, 2.8 mm and 1.9 mm respectively for precise fit on PCBs.
Explore more high-quality semiconductor TVS diodes and discrete components at EnvMart to enhance your electronic circuit protection solutions.
Explore more products in our Transient Voltage Suppressors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage is rated at 26 V.
The clamping voltage of this model is 42.1 V.
This TVS diode has a peak pulse power dissipation rating of 400 W.
It can handle a maximum peak pulse current of 9.5 A.
This model operates effectively between −55°C and 150°C.
The diode comes in a small lead low-profile SOD-123 package.
This diode has a pin count of 2, ensuring ease of integration into circuits.
It offers ESD protection compliant with the automotive standard AEC-Q101.
The minimum breakdown voltage is 28.9 V.
The maximum reverse leakage current is 100 nA, which minimizes power losses.
The diode measures 1.1 mm in height, 2.8 mm in length, and 1.9 mm in width.
It has a single-element, uni-directional diode configuration.
