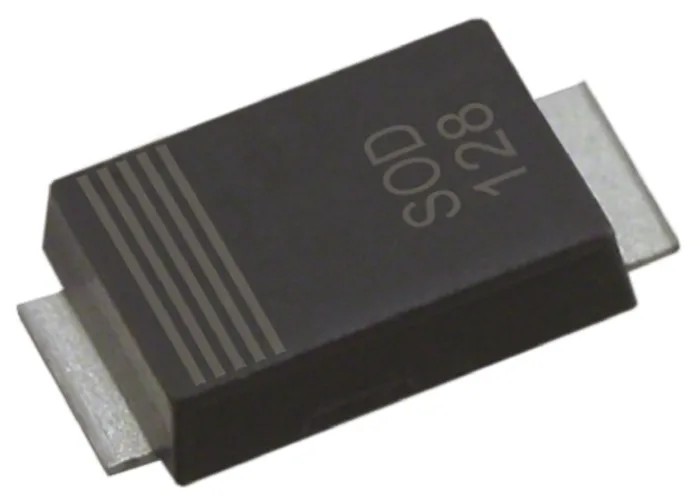

Nexperia 1-Element Uni-Directional TVS Diode 600 W, 2-Pin SOD-128 PTVS28VP1UP,115
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 4mm |
| Model | PTVS28VP1UP,115 |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | PTVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-128 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 45.4V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 31.1V |
| Maximum Reverse Stand-off Voltage Vwm | 28V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 13.2A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Offers transient overvoltage protection in electronic circuits.
- Uni-directional diode configuration for reliable ESD protection.
- Peak pulse power dissipation rating of 600 watts.
- Compact SOD-128 surface mount package with 2 pins.
- Supports automotive standards including AEC-Q101 certification.
- Operating temperature range from -55°C to 150°C.
- Minimum breakdown voltage of 31.1 volts and maximum reverse stand-off voltage of 28 volts.
- Maximum peak pulse current rated at 13.2 amperes.
Product Description
Nexperia PTVS28VP1UP,115 is a high-performance 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed for protecting sensitive electronic circuits from voltage spikes and transient surges. Rated for a peak pulse power dissipation of 600 W, this diode is well-suited for transient overvoltage protection in automotive, industrial, and consumer applications.
Constructed in a robust SOD-128 small outline package, it features a 2-pin surface mount footprint making it ideal for compact PCB layouts that require effective electrostatic discharge (ESD) protection and voltage clamping. The uni-directional configuration ensures a single polarity clamp action, suitable for DC power management or signal line protection.
Operating reliably over a broad temperature range from -55°C up to 150°C, the device maintains performance in harsh environments. It complies with automotive standard AEC-Q101, making it dependable for automotive electronics.
Key electrical characteristics include a minimum breakdown voltage of 31.1 V, a maximum reverse stand-off voltage of 28 V, a clamping voltage of 45.4 V, and a peak pulse current capability of 13.2 A. Its maximum reverse leakage current is exceptionally low at 100 nA, minimizing power loss during normal operation.
Uni-directional transient voltage suppression for protecting electronics. 600 W peak pulse power dissipation rating. Compact 2-pin surface mount SOD-128 package. Wide operating temperature range from -55°C to 150°C. Automotive grade with AEC-Q101 certification.
Low maximum reverse leakage current of 100 nA. Critical electrical parameters suited for robust surge protection.
This Nexperia TVS diode is ideal for use in automotive electronics, industrial power supplies, semiconductor manufacturing, and consumer electronic devices requiring stringent surge protection and ESD safeguards. Its compact size, high energy absorption capability, and compliance with automotive standards make it a versatile component in transient voltage suppression applications.
Explore more products in the Transient Voltage Suppressors category on EnvMart for all your electronic protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Nexperia PTVS28VP1UP,115 has a peak pulse power dissipation rating of 600 watts.
This diode operates reliably over a temperature range from -55°C to 150°C.
The clamping voltage (VC) of this model is 45.4 volts.
The dimensions of the SOD-128 package are 4mm in length, 2.7mm in width, and 1.1mm in height.
The maximum reverse stand-off voltage (Vwm) is 28 volts.
The minimum breakdown voltage (Vbr) is 31.1 volts.
The maximum peak pulse current (Ippm) is rated at 13.2 amperes.
Yes, this model complies with the automotive standard AEC-Q101.
This diode features a 2-pin configuration.
The Nexperia PTVS28VP1UP,115 uses a uni-directional diode configuration.
The maximum reverse leakage current is exceptionally low at 100 nA.
This model is suitable for automotive electronics, industrial power supplies, and consumer electronic devices requiring surge protection and ESD safeguards.
