onsemi ECL Logic Level Translator Uni-Directional MC100EPT23DG 8-Pin SOIC 3V to 3.6V MC100EPT23DG

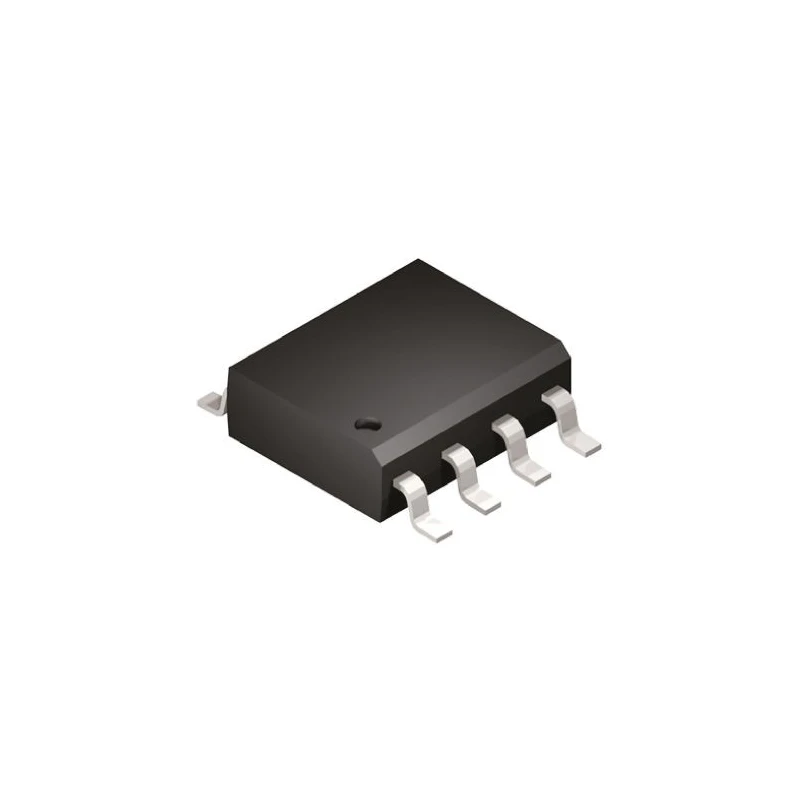

onsemi MC100EPT23DG is a high-performance Emitter Coupled Logic (ECL) Level Translator IC designed for uni-directional conversion of differential LVPECL, LVDS, and CML signals to single-ended LVTTL or LVCMOS logic levels.

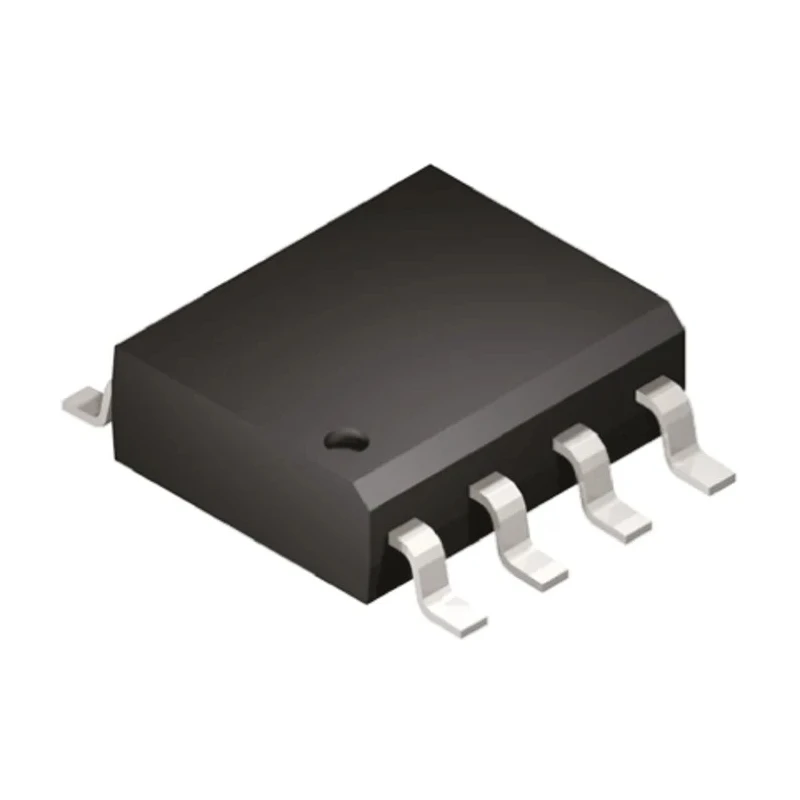

This device is supplied in an 8-Pin Small Outline Integrated Circuit (SOIC) surface mount package, making it ideal for modern PCB assembly and high-density layouts. Operating with a power supply range between 3 V minimum and 3.6 V maximum, it offers a maximum propagation delay of 1.8 ns, suitable for timing-critical digital systems.

The MC100EPT23DG integrates two translator elements within a single chip, featuring output types compatible with CMOS and TTL logic families, supporting seamless interfacing across different digital domains.

The IC operates reliably across a wide industrial temperature range from -40°C to 85°C, which makes it suitable for varied environmental conditions, including automotive and industrial applications.

It complies with the JEDEC Spec EIA/JESD78 IC Latchup Test standard, ensuring device robustness under electrical stress conditions.

The compact dimensions (1.5 mm height and 5 mm length) facilitate space-saving designs on printed circuit boards, while the 8-pin SOIC form factor supports efficient surface mounting technology.

This Logic Level Translator is commonly utilized in industrial, telecommunications, computing, and embedded system applications where precise and reliable signal level conversion is required.

Uni-directional logic level translation from LVPECL/LVDS/CML to LVTTL/LVCMOS. Low propagation delay of 1.8 ns enhances system timing performance. Dual translator elements in one 8-pin SOIC package. Wide operating temperature range ensures suitability for harsh environments.

Meets JEDEC latchup standards for reliability and quality. Compact surface mount package for space-efficient solutions. High output drive currents for reliable digital interfacing. Surface mount technology compatible. For advanced logic translation needs, the onsemi MC100EPT23DG delivers dependable performance and ease of integration within semiconductor and electronic component systems.
