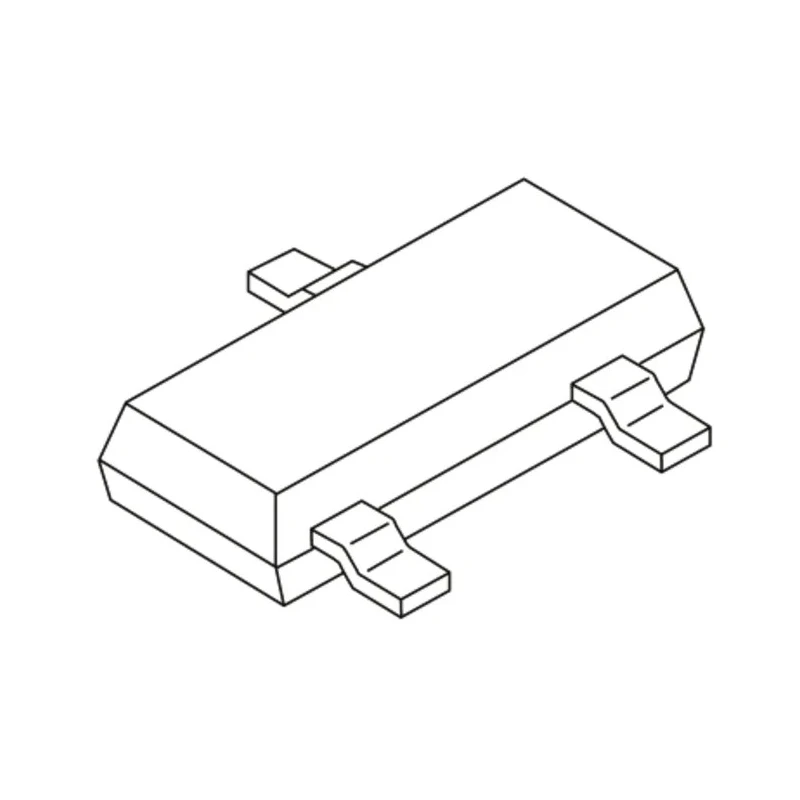

Nexperia 40 V 120 mA Schottky Diode Surface Mount SOT-23 Package BAS40,215

Nexperia BAS40,215 Schottky Diode is a high-efficiency discrete semiconductor component optimized for low forward voltage drop and high junction temperature tolerance. With a maximum continuous forward current of 120 mA and a peak reverse voltage of 40 V, this diode is ideal for precision rectification needs in surface mount technology.

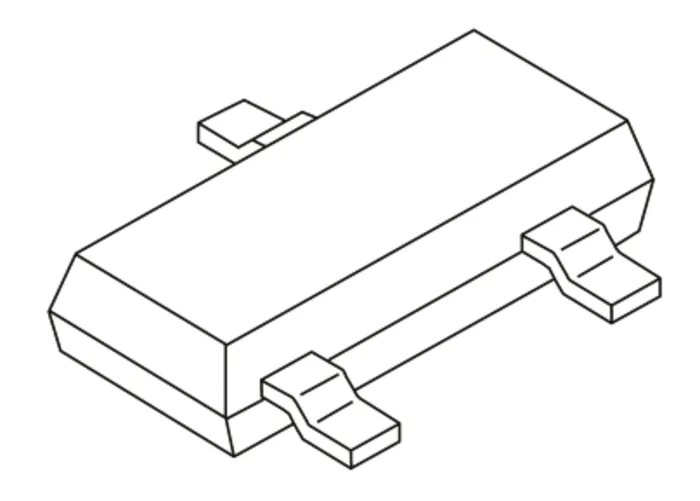

Encased in a compact 3-pin SOT-23 package, the diode occupies minimal PCB footprint, making it suitable for modern electronics requiring space-saving components. It operates effectively in temperature ranges from -65°C up to 150°C, vital for automotive and industrial applications.

This diode conforms to the AEC-Q101 automotive standard, assuring reliable quality and durability under harsh conditions. Its low forward voltage (380 mV) and leakage current (10 μA) contribute to minimal power dissipation, making it well-suited for power-sensitive designs.

Applications include switching power supplies, voltage clamping, polarity protection, and general purpose rectification in industrial, automotive, and consumer electronics. Maximum continuous forward current of 120 mA ensures reliable performance.

Peak reverse repetitive voltage of 40 V provides robust voltage handling. Low forward voltage drop of 380 mV enhances energy efficiency. Compact 3-pin SOT-23 surface mount package minimizes PCB space usage. Operates reliably between -65°C to 150°C, suitable for demanding environments.

Packed with automotive standard AEC-Q101 compliance for automotive applications. Features low leakage current of 10 μA for minimal power loss. Supports peak non-repetitive forward surge current of 200 mA for transient tolerance.

This product is ideal for designers and engineers requiring a reliable Schottky barrier diode for compact and efficient electronic circuits. Browse the Semiconductor category at EnvMart for related components.
