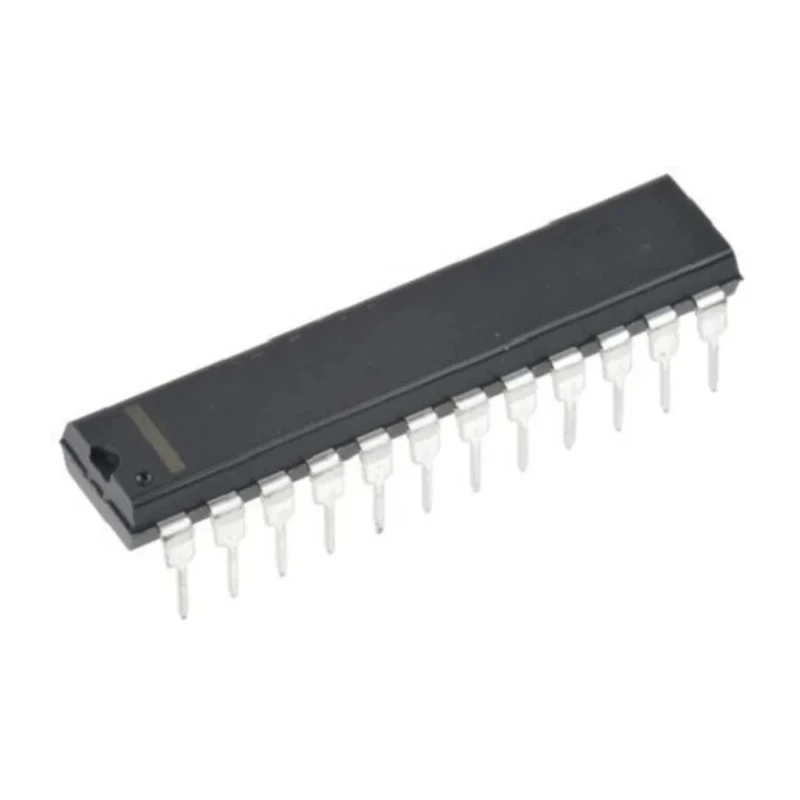

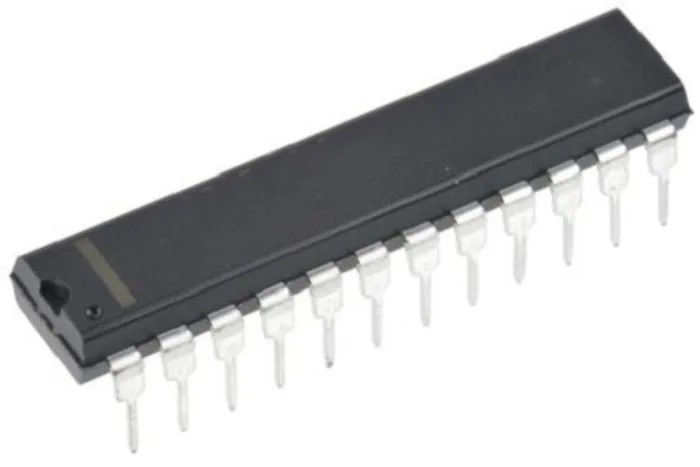

Renesas Electronics Programmable Timer 6 Timers, 24-Pin PDIP, 2V-18V Supply CP82C54-10Z

Renesas Electronics CP82C54-10Z Programmable Timer is a highly reliable, high performance interval timer IC designed with an advanced 2 micron CMOS process. Featuring six programmable internal timers, the device supports various timing and counting applications including event counting, elapsed time measurement, and programmable one-shot generation. Packaged in a 24-pin PDIP through-hole mounting format, the IC requires a single 5V power supply but can operate over a voltage range of 2V to 18V, enhancing its versatility in diverse circuits.

This timer IC operates with clock input frequencies from 8MHz to 12MHz, ensuring precise timing accuracy. It supports both binary and BCD counting modes with full TTL compatibility, making it suitable for integration with a wide range of digital systems. The operating temperature range of 0°C to 70°C allows for use in standard industrial environments.

The CP82C54-10Z complies with RoHS environmental standards, guaranteeing reduced hazardous substances. This reliability and compliance make it an ideal component for timing functions in industrial automation, electronics manufacturing, and laboratory equipment.

Operates six independent 16-bit counters offering flexible timing modes. Compatible as an enhanced version of the NMOS 8253 device. Low power consumption due to advanced CMOS fabrication technology. Suitable for use in clock, timing, and frequency applications in various industries.

Through-hole PDIP package facilitates easy inclusion into existing PCB designs.

This programmable timer IC is widely used in industrial automation, electronics equipment, and control systems. It supports multiple timing functions such as event counting and programmable delay generation, providing designers with a versatile timing solution.

Enhance your electronic design projects by incorporating the Renesas Electronics CP82C54-10Z, a quintessential timer IC that delivers precision, low power, and reliable performance. Explore more components in the Electronic Timer category at EnvMart for complementary products.
