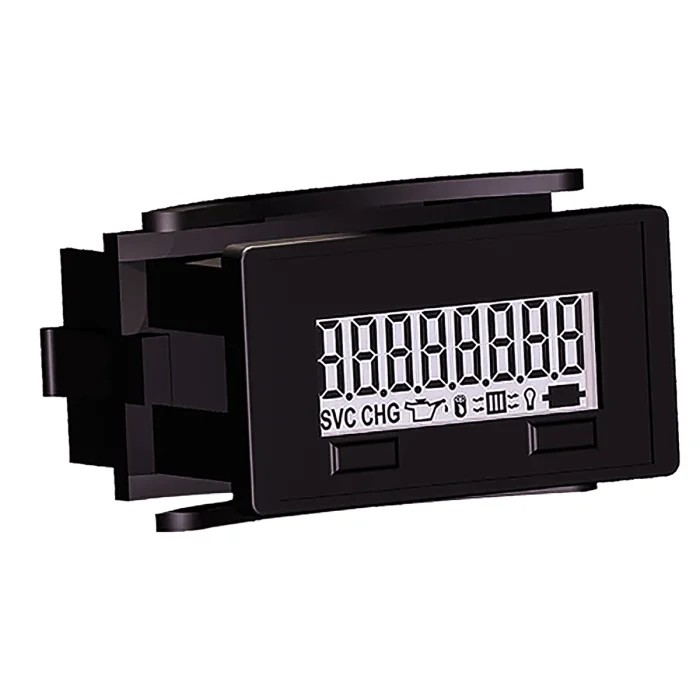

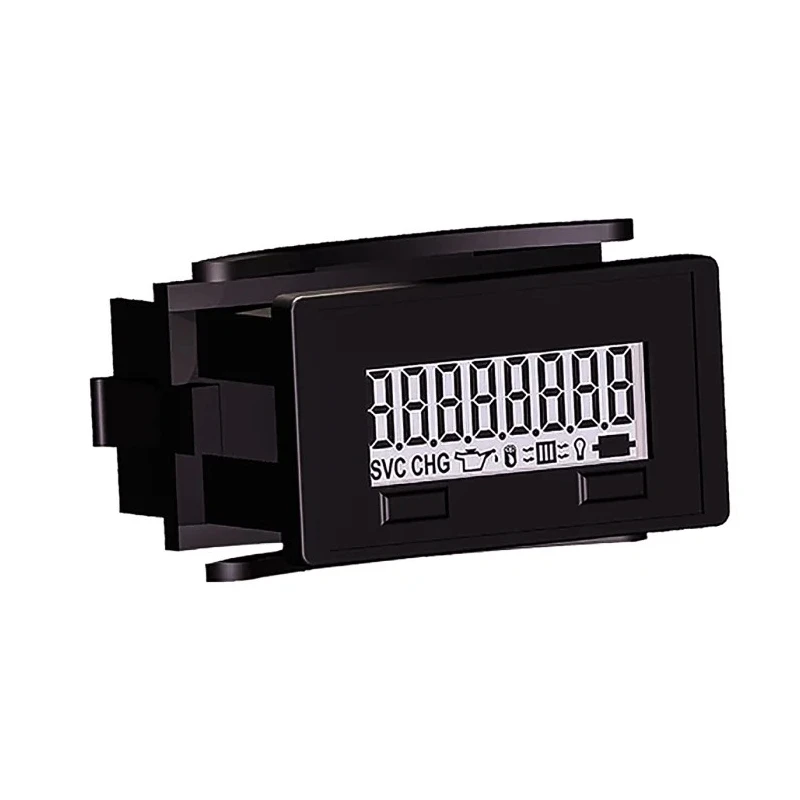

Trumeter Panel Mount 8 Digit LCD Timer Counter 300V AC/DC 8mm Digit Height 6320-0600-0000

Trumeter 6320-0600-0000 is a high-performance Panel Mount Timer Counter featuring an 8-digit reflective LCD display with 8mm digit height designed for superior visibility. It operates reliably with a maximum supply voltage of 300V AC/DC, suitable for a wide range of industrial and automation applications.

This timer supports flexible functions including hour, minute, and seconds metering with optional front panel programming capabilities, enabling user-defined preset or Redi-alert functionality with up to three alerts. The internal long-life lithium battery guarantees maintenance-free operation for over 15 years.

The device is engineered to withstand harsh environments, with a maximum operating temperature of 60°C and a robust NEMA 4/4X casing rating to ensure resistance to dust and water ingress. Mounting is secured via a panel cutout of 50.8mm width by 27.9mm height, with a device depth of 38mm, facilitating easy integration into control gears and switchboards.

The 6320 Series Timer is compliant with international standards including CE, cUL Recognized, EN 61326:1997 with amendments A1:1998 & A2:2001, and UL certification, underscoring its quality and safety for industrial use.

Typical applications include process control systems, automation setups, electrical panels, and industrial machinery requiring precise time measurement and monitoring. It supports multiple inputs such as dry contacts and both AC and DC low or high voltage signals, enhancing its adaptability.

Reflective LCD display with 8 large digits for clear visibility. Supports hour, minute, and seconds meter types with multi-function options. Optional front panel programming with Redi-alert or preset functions. Includes three programmable Redi-alerts for process monitoring.

Dry contact, low voltage, and high voltage AC/DC input compatibility. Long-life internal lithium battery exceeding 15 years. NEMA 4/4X rated enclosure for environmental protection. Compliant with multiple international safety and quality standards.

Choose Trumeter 6320-0600-0000 Panel Mount Timer Counter for dependable and precise timing solutions in industrial automation and process control environments. Explore our wide selection of Electronic Timers and counters at EnvMart.
