| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 2.2mm |
| Model | 74LVC1T45GW,125 |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | 3 State |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-88 |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Number Of Channels | 1 |
| Operating Voltage | 1.65 to 5.5 V |
| Pin Count | 6 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | LVC |
| Logic Function | Transceiver |
| Minimum Supply Voltage | 1.2V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ CL | 8.2ns |
| Supply Current | 16μA |
| Maximum Low Level Output Current | 32mA |

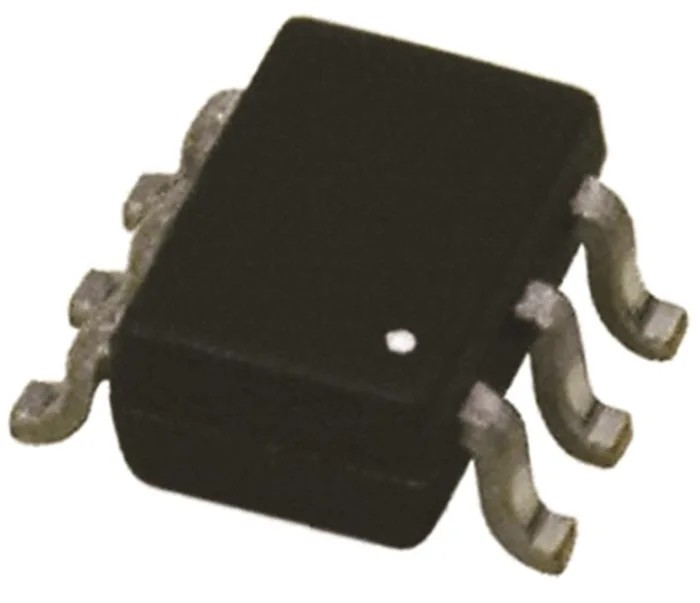

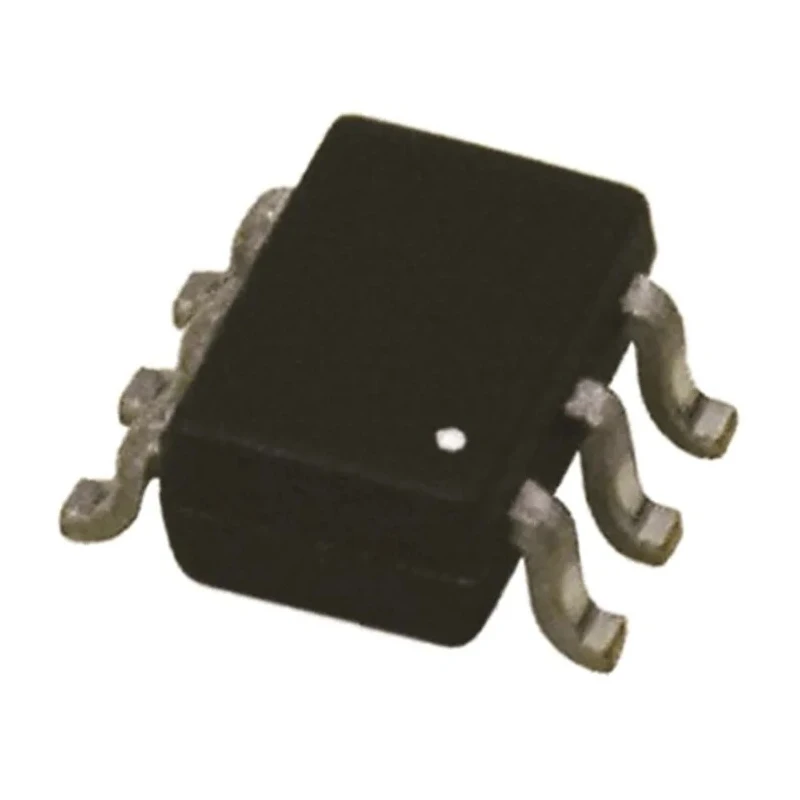

Nexperia 74LVC1T45GW,125 non-inverting 3 state buffer and converter combination circuit is designed for industrial and commercial electronic applications requiring reliable signal buffering and level shifting between voltage domains.
This device uses low-voltage CMOS logic technology to provide low power consumption while maintaining fast switching speeds. Packaged in a compact 6-pin SC-88 surface-mount package, it optimizes PCB real estate for high-density applications.
The circuit features a single-ended input and a non-inverting output with 3-state capability, enabling bus management in multi-device systems. Input compatibility with LVTTL and TTL logic levels and output compatibility with LVCMOS voltage levels make it versatile for mixed-signal environments.
Operating voltage ranges from 1.2V minimum to 5.5V maximum, with a maximum propagation delay of 8.2ns ensuring prompt signal throughput. The device supports operation across a broad temperature range from -40°C to 125°C, suitable for harsh industrial environments.
The low quiescent supply current of 16μA minimizes overall system power draw. High-level output current is specified at -32mA and low-level output current at 32mA, allowing for reliable driving of downstream circuitry.
Low-voltage CMOS logic technology for energy-efficient operation. 3-state buffer configuration for bus control applications. Single channel with non-inverting polarity for signal integrity. Surface-mount SC-88 package with small 6-pin design.
Wide operating voltage range from 1.2V to 5.5V. Broad operating temperature range, -40°C to 125°C. Low supply current of 16μA for power savings. Compatible with LVTTL/TTL input and LVCMOS output.
This buffer and converter circuit is widely applicable in industrial, laboratory, telecommunications, and embedded systems where voltage level conversion and signal buffering are required.
