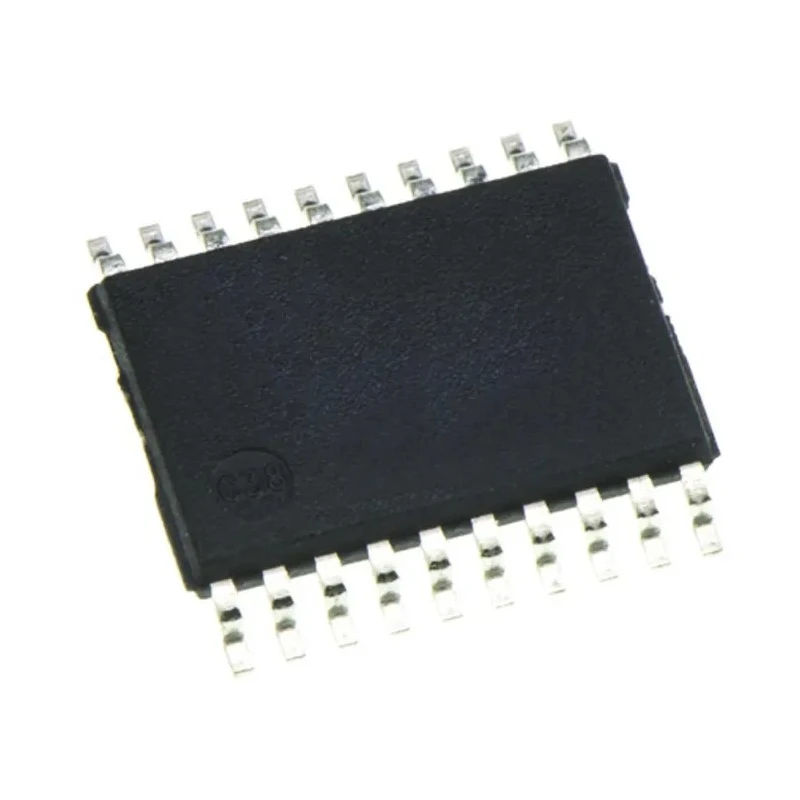

Toshiba Octal Bus Buffer with Schmitt Trigger Input 3 State 20-Pin TSSOP 1.8V-5.5V 74VHCV541FT

The Toshiba 74VHCV541FT is an octal bus buffer featuring Schmitt trigger inputs and 3-state outputs. It utilizes advanced high speed CMOS silicon gate technology combining high speed operation similar to bipolar Schottky TTL devices with low power consumption inherent to CMOS designs. This device is the non-inverting type in the 74VHCV54x series and is ideal for bus interface and other digital systems demanding noise immunity and quick response.

Operating over a flexible supply voltage range from 1.8 V up to 5.5 V, the 74VHCV541FT guarantees dependable performance across various system voltages. It provides high output drive currents of ±16 mA and a typical maximum propagation delay time of 16.8 ns at specified load conditions, supporting high data throughput requirements.

The device includes input hysteresis between positive and negative thresholds to robustly square up slowly changing input signals, thereby enhancing noise immunity. It also features power-down protection on inputs and outputs, allowing safe operation during power cycling or hot insertion scenarios.

Wide operating temperature range from -40°C to 125°C caters well to demanding industrial and automotive environments. The package is a compact 20-pin TSSOP, facilitating space-efficient surface mounting on PCBs.

Compatibility with the wider 74 series logic families (74AC, 74HC, 74AHC, 74LV) ensures ease of design integration. The device meets automotive AEC-Q100 standards, making it suitable for automotive and other high reliability applications.

Advanced high speed CMOS octal bus buffer with silicon gate technology. Non-inverting type with Schmitt trigger input for improved noise immunity. Wide operating voltage range: 1.8 V to 5.5 V. High output current capability ±16 mA for robust load driving.

Max propagation delay: 16.8 ns at CL (load capacitance). Power-down protection on all inputs and outputs. Wide temperature range: -40°C to 125°C operating. Compact 20-pin TSSOP surface mount package. Automotive compliant to AEC-Q100 for reliability.

Compatible with standard 74 logic series footprint.

This buffer IC is widely used in electronics, industrial digital systems, automotive electronics, communication equipment, and other embedded systems requiring high speed buffering with noise rejection. Its robustness, speed, and voltage flexibility make it a core component for signal integrity in bus communication networks.
