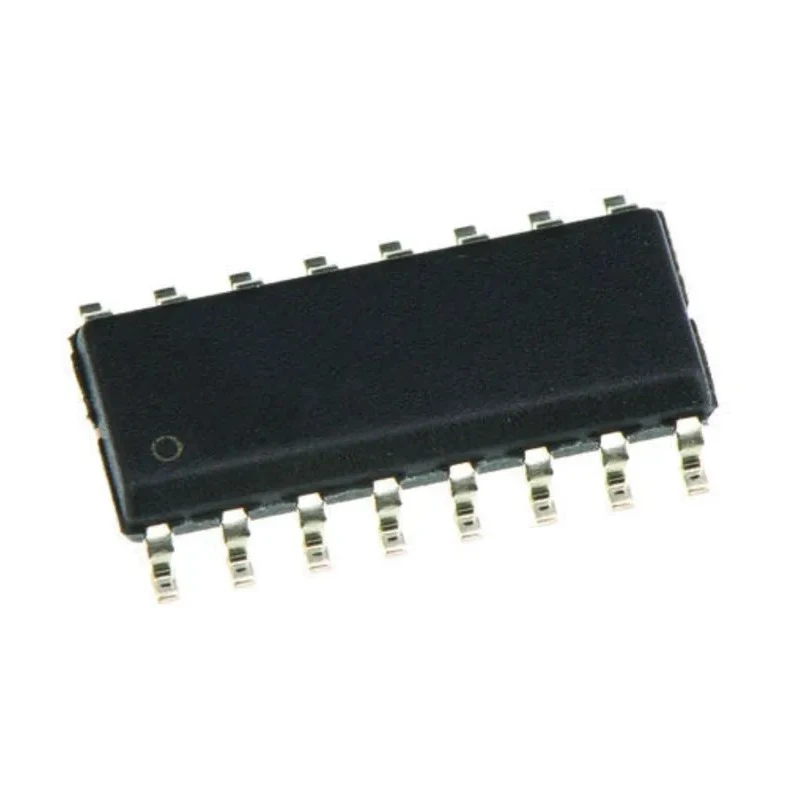

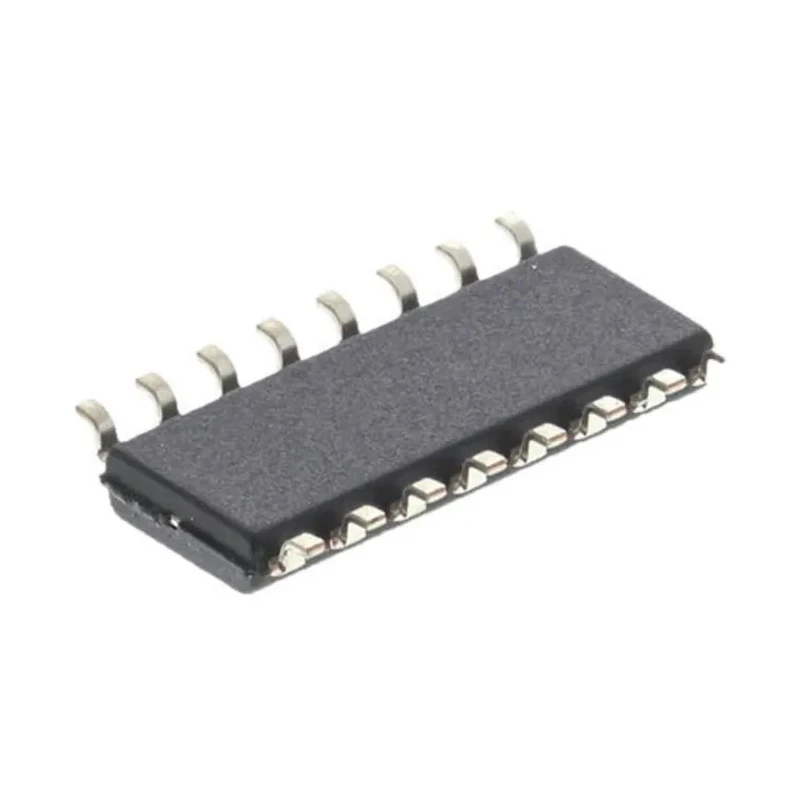

Nexperia Inverting Single Ended Buffer 16-Pin SO, TTL CMOS Input, 3 to 15 V Supply, 50 mA Supply Current HEF4049BT,653

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Inverting Single Ended Buffer 16-Pin SO, TTL CMOS Input, 3 to 15 V Supply, 50 mA Supply Current HEF4049BT,653

Name: Nexperia Inverting Single Ended Buffer 16-Pin SO, TTL CMOS Input, 3 to 15 V Supply, 50 mA Supply Current HEF4049BT,653
Brand: Nexperia
SKU: 205708
Price: 0.34 USD
Availability: InStock



Category Buffers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.45mm
Length	10mm
Model	HEF4049BT,653
Mount Type	Surface
Output type	Single Ended
Series	HEF4049B
Input Type	TTL, CMOS
Maximum Operating Temperature	85°C
Package Type	SO
Minimum Operating Temperature	-40°C
Polarity	Inverting
Number Of Channels	1
Pin Count	16
Maximum Supply Voltage	15V
Logic Family	HEF
Logic Function	Buffer
Minimum Supply Voltage	3V
Maximum High Level Output Current	-3.6mA
Maximum Propagation Delay Time @ CL	70ns
Supply Current	50mA
Maximum Low Level Output Current	24mA
Wide operating voltage range	3 to 18V
onsemi MC14049BDR2G CMOS Inverter 1, 16-Pin SOICBrand	onsemi

Key Features

This buffer integrates a single channel with inverting polarity output.
The input supports both TTL and CMOS logic levels.
Wide supply voltage range from 3 to 15 volts for versatile use.
Low propagation delay time of 70 ns at capacitive load.
Operating temperature range from -40°C up to 85°C for reliability.
Compact 16-pin SO package optimized for surface mounting.
Typical supply current is 50 mA ensuring energy efficiency.

Product Description

Nexperia HEF4049BT,653 is an inverting single-ended buffer available in a 16-Pin Small Outline (SO) package. It belongs to the HEF logic family and is designed to provide buffering with TTL and CMOS compatible inputs. The device operates over a wide voltage range of 3 V minimum to a maximum of 15 V, allowing flexibility across diverse electronic circuit applications.

This buffer integrates a single channel and outputs an inverted signal, suitable for use in digital logic circuits, signal conditioning, and driving loads requiring precise voltage levels. With a propagation delay of 70 nanoseconds at a capacitive load, it offers reliable timing performance for synchronous systems.

The component can function in a broad temperature range from -40°C to 85°C, making it applicable in commercial and industrial environments. It exhibits a maximum low-level output current of 24 mA and a maximum high-level output current of -3.6 mA, allowing it to drive various logic inputs and loads effectively.

The compact package dimensions include a height of 1.45 mm and a length of 10 mm, making it suitable for space-constrained printed circuit board layouts. It is surface mountable, facilitating automated assembly processes.

This IC is part of the 4000 series inverters and Buffers from Nexperia's CMOS logic family, providing robust performance and industry-standard interfacing in electronic control, industrial automation, and consumer electronics.

This buffer integrates a single channel with inverting polarity output. The input supports both TTL and CMOS logic levels. Wide supply voltage range from 3 to 15 volts for versatile use. Low propagation delay time of 70 ns at capacitive load.

Operating temperature range from -40°C up to 85°C for reliability. Compact 16-pin SO package optimized for surface mounting. Typical supply current is 50 mA ensuring energy efficiency.

EnvMart offers this Nexperia HEF4049BT,653 buffer for industrial, laboratory, and electronic manufacturing applications. Browse our extensive catalog for compatible semiconductor and buffer components to optimize your electronic designs.
