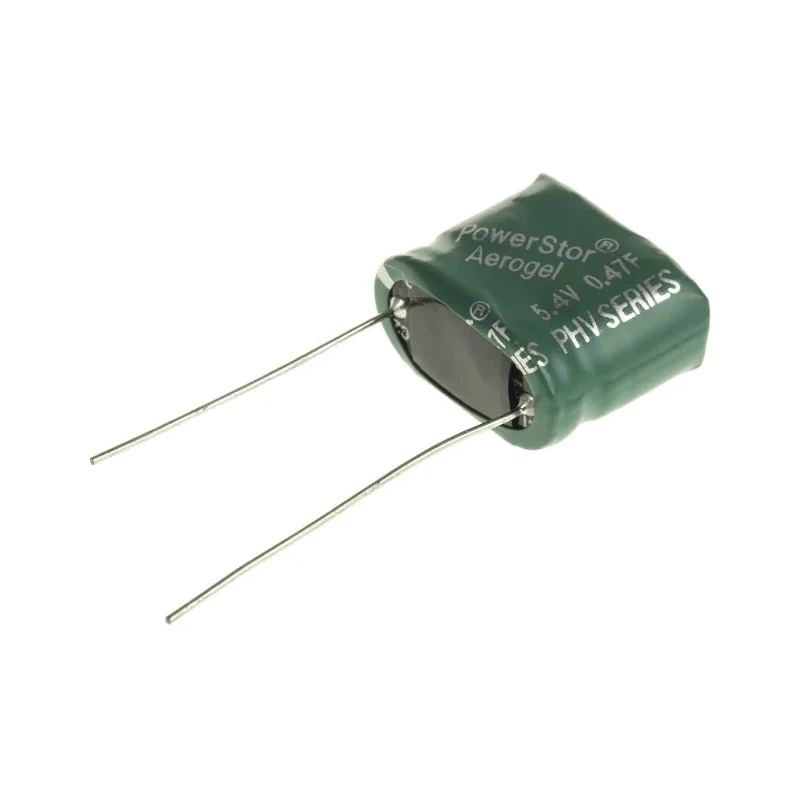

Eaton 0.47 F Electric Double Layer Supercapacitor, 5.4V dc, Cylindrical Through Hole PHV-5R4V474-R

Eaton PHV-5R4V474-R is a high-performance 0.47 F electric double layer supercapacitor featuring through-hole mounting and a cylindrical package designed for compact PCB assembly. Operating at 5.4V DC, this supercapacitor exhibits an ultra-low equivalent series resistance of 400mΩ, enabling high power density applications in electronics power management and energy storage.

Its positive polarity and solder terminal type support reliable circuit integration. With lead diameter of 0.5mm and lead pitch of 11.8mm, it facilitates easy through-hole mounting on standard printed circuit boards. The capacitor's dimensions include a diameter of 10.5mm and height of 14.5mm, offering a compact form factor suitable for space-constrained designs.

Constructed using electrochemical double layer capacitor technology (EDLC), it delivers large capacitance for extended energy density and efficient charge retention. The operating temperature range from -40°C to 65°C ensures suitability across varied environmental conditions, while the typical lifetime is rated at 1000 hours.

Leakage current is maintained at a low 13μA, minimizing energy wastage during operation. This supercapacitor series is RoHS compliant and UL approved, affirming its safety and environmental standards.

Typical use cases include power backup systems, energy harvesting circuits, industrial electronics, and portable devices requiring rapid charge/discharge cycles and prolonged power supply stability.

The device is supplied in bags, ready for insertion into machinery and production lines to improve manufacturing efficiency. Explore the high quality and reliable Eaton supercapacitor range for advanced industrial, electronics manufacturing, and R&D applications at EnvMart.

High capacitance of 0.47 F offers large energy density. Operates at 5.4 volts DC with a polarity marked positive. Cylindrical package case with dimensions 10.5mm diameter and 14.5mm height. Low equivalent series resistance (ESR) of 400mΩ for ultra-high power density.

Leakage current of 13μA ensuring low power loss. Designed for through-hole mounting with 0.5mm lead diameter and 11.8mm pitch. Operating temperature range from -40°C up to 65°C. Rated lifetime of 1000 hours under specified conditions.

Certified to RoHS and UL standards. Browse EnvMart for more electronic components and Supercapacitors tailored for your industrial or commercial needs.
