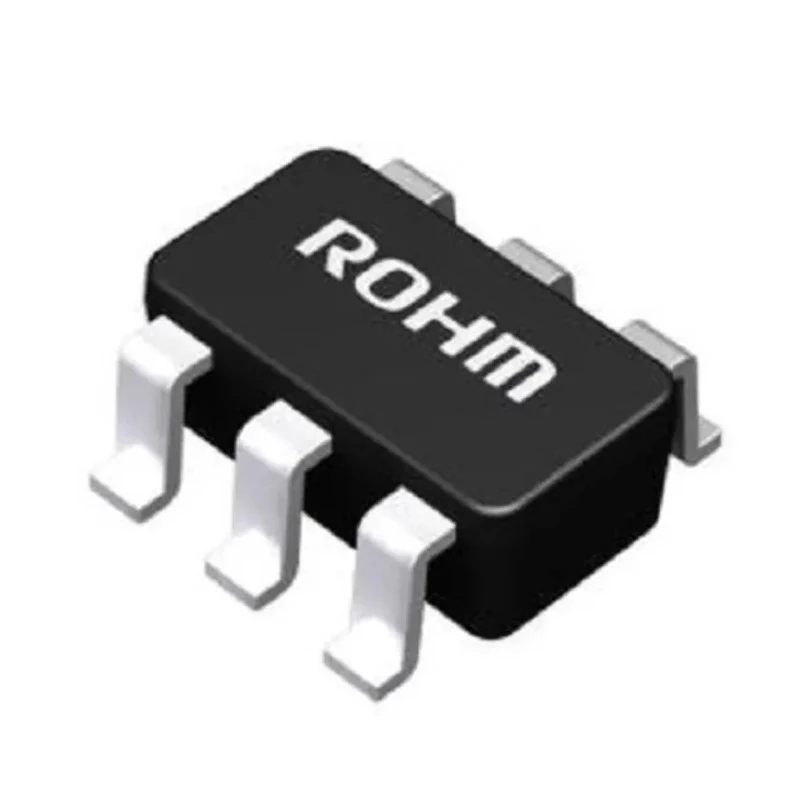

ROHM Non-Inverting CMOS Buffer 5-Pin SSOP-5 Logic IC Buffer BD7LS125G-CTL

Name: ROHM Non-Inverting CMOS Buffer 5-Pin SSOP-5 Logic IC Buffer BD7LS125G-CTL
Brand: ROHM
SKU: 177313
Price: 0.23 USD
Availability: InStock



Category Buffers Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	2.8mm
Length	2.9mm
Model	BD7LS125G-CTL
Mount Type	PCB
Output type	CMOS
Series	BD7LS07G
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	SSOP-5
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	1
Standards/Approvals	RoHS
Pin Count	5
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Logic Family	CMOS
Logic Function	Buffer
Minimum Supply Voltage	1.65V
Maximum High Level Output Current	24mA
Maximum Propagation Delay Time @ CL	10ns
Supply Current	10μA

Key Features

Single channel CMOS logic buffer with non-inverting output.
Low supply current of 10μA ensures energy-efficient operation.
5-pin SSOP package with compact 2.9mm length and 2.8mm height.
Supports automotive applications with AEC-Q100 certification.
Maximum propagation delay time of 10ns allows fast signal processing.
Operates within temperature range of -40°C to 125°C for versatile environments.
Maximum output current of 24mA for both high and low levels.
Output tolerant circuitry protects against backflow current in power-down mode.

Product Description

ROHM BD7LS125G-CTL is a single 3-state non-inverting CMOS buffer designed for automotive and industrial applications requiring reliable signal buffering with low power consumption. Operating over a power supply voltage range of 1.65 V to 5.5 V, this buffer supports efficient logic signal interfacing and partial power-down mode operation with output tolerant circuitry to prevent unwanted backflow currents.

The device comes in a compact 5-pin SSOP-5 package with a length of 2.9 mm and height of 2.8 mm, making it suitable for space-conscious PCB layouts. It features a fast maximum propagation delay time of 10 ns at specified load conditions, ensuring high-speed signal throughput.

Certified to AEC-Q100 automotive standards, the BD7LS125G-CTL buffer withstands operating temperatures from -40°C to 125°C, accommodating harsh environmental conditions typical in automotive electronics. The output current capability reaches up to 24 mA for both high and low states, providing strong driving performance.

This CMOS buffer is ideal for applications in automotive systems, industrial logic circuits, and power-sensitive designs requiring robust signal integrity and high-speed buffering. Its RoHS compliance also ensures adherence to modern environmental standards.

Single channel CMOS output buffer providing non-inverting logic function. Low supply current of 10μA reduces overall power consumption. Compact 5-pin SSOP package improves PCB space utilization. Automotive qualified with AEC-Q100 certification for reliability.

Output tolerant function allows partial power-down without signal disruption. Wide operating temperature range suits diverse industrial environments. Fast propagation delay time of 10 nanoseconds supports high-frequency circuits.

Maximum output current rating of 24mA ensures adequate drive capability. RoHS compliant for environmentally responsible applications. Explore more semiconductor Buffers and ROHM logic ICs at EnvMart for your industrial, automotive, and electronic design needs.
